KisStrokeStrategy Class Reference

#include <kis_stroke_strategy.h>

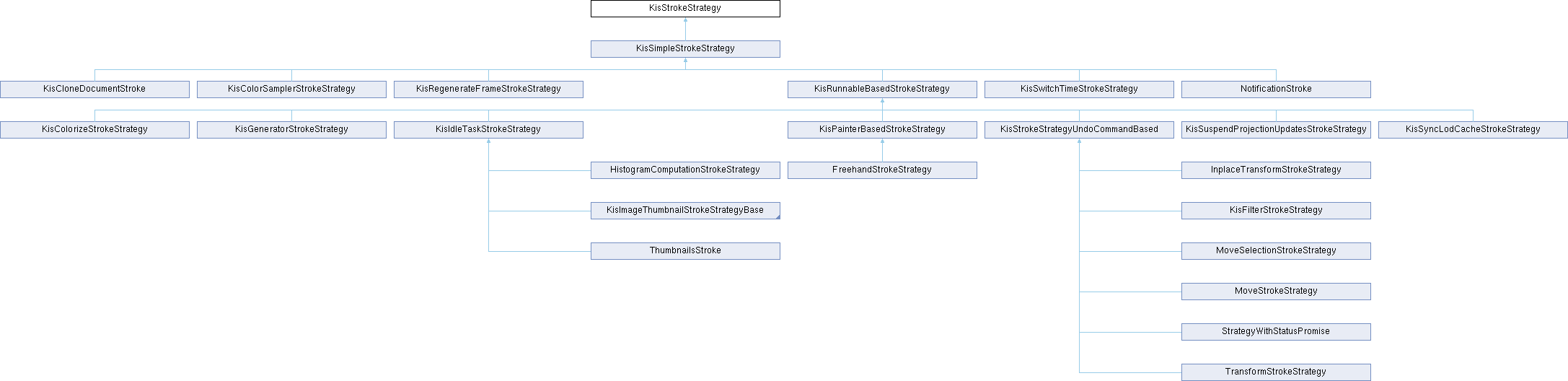

Inheritance diagram for KisStrokeStrategy:

Public Member Functions
qreal	balancingRatioOverride () const
bool	canForgetAboutMe () const
bool	clearsRedoOnStart () const
virtual KisStrokeJobData *	createCancelData ()
virtual KisStrokeJobStrategy *	createCancelStrategy ()
virtual KisStrokeJobStrategy *	createDabStrategy ()
virtual KisStrokeJobData *	createFinishData ()
virtual KisStrokeJobStrategy *	createFinishStrategy ()
virtual KisStrokeJobData *	createInitData ()
virtual KisStrokeJobStrategy *	createInitStrategy ()
virtual KisStrokeStrategy *	createLodClone (int levelOfDetail)
virtual KisStrokeJobData *	createResumeData ()
virtual KisStrokeJobStrategy *	createResumeStrategy ()
virtual KisStrokeJobData *	createSuspendData ()
virtual KisStrokeJobStrategy *	createSuspendStrategy ()
KisLodPreferences	currentLodPreferences () const
bool	forceLodModeIfPossible () const
QString	id () const
bool	isAsynchronouslyCancellable () const
bool	isExclusive () const
	KisStrokeStrategy (const QLatin1String &id, const KUndo2MagicString &name=KUndo2MagicString())
KUndo2MagicString	name () const
bool	needsExplicitCancel () const
virtual void	notifyUserEndedStroke ()
virtual void	notifyUserStartedStroke ()
bool	requestsOtherStrokesToEnd () const
void	setForceLodModeIfPossible (bool forceLodModeIfPossible)
void	setMutatedJobsInterface (KisStrokesQueueMutatedJobInterface *mutatedJobsInterface, KisStrokeId strokeId)
bool	supportsWrapAroundMode () const
virtual void	tryCancelCurrentStrokeJobAsync ()
	tryCancelCurrentStrokeJobAsync is called by the strokes queue when the stroke is being cancelled. The stroke strategy may or may not handle this request and cancel the currently running long action.
virtual	~KisStrokeStrategy ()

Protected Member Functions
void	addMutatedJob (KisStrokeJobData *data)
void	addMutatedJobs (const QVector< KisStrokeJobData * > list)
	KisStrokeStrategy (const KisStrokeStrategy &rhs)
void	setAsynchronouslyCancellable (bool value)
void	setBalancingRatioOverride (qreal value)
void	setCanForgetAboutMe (bool value)
void	setClearsRedoOnStart (bool value)
void	setExclusive (bool value)
void	setNeedsExplicitCancel (bool value)
void	setRequestsOtherStrokesToEnd (bool value)
void	setSupportsWrapAroundMode (bool value)

Private Attributes
bool	m_asynchronouslyCancellable
qreal	m_balancingRatioOverride
bool	m_canForgetAboutMe
bool	m_clearsRedoOnStart
bool	m_exclusive
bool	m_forceLodModeIfPossible
QLatin1String	m_id
KisStrokesQueueMutatedJobInterface *	m_mutatedJobsInterface
KUndo2MagicString	m_name
bool	m_needsExplicitCancel
bool	m_requestsOtherStrokesToEnd
KisStrokeId	m_strokeId
bool	m_supportsWrapAroundMode

Friends
class	KisMutatableDabStrategy

Detailed Description

Definition at line 20 of file kis_stroke_strategy.h.

Constructor & Destructor Documentation

KisStrokeStrategy() [1/2]

KisStrokeStrategy::KisStrokeStrategy	(	const QLatin1String &	id,
		const KUndo2MagicString &	name = KUndo2MagicString() )

Definition at line 13 of file kis_stroke_strategy.cpp.

    : m_exclusive(false),
      m_supportsWrapAroundMode(false),
      m_clearsRedoOnStart(true),
      m_requestsOtherStrokesToEnd(true),
      m_canForgetAboutMe(false),
      m_asynchronouslyCancellable(true),
      m_needsExplicitCancel(false),
      m_forceLodModeIfPossible(false),
      m_balancingRatioOverride(-1.0),
      m_id(id),
      m_name(name),
      m_mutatedJobsInterface(0)
{
}

~KisStrokeStrategy()

KisStrokeStrategy::~KisStrokeStrategy ( )

virtual

Definition at line 57 of file kis_stroke_strategy.cpp.

{
}

KisStrokeStrategy() [2/2]

KisStrokeStrategy::KisStrokeStrategy ( const KisStrokeStrategy & rhs )

protected

Protected c-tor, used for cloning of hi-level strategies

Definition at line 29 of file kis_stroke_strategy.cpp.

    : m_exclusive(rhs.m_exclusive),
      m_supportsWrapAroundMode(rhs.m_supportsWrapAroundMode),
      m_clearsRedoOnStart(rhs.m_clearsRedoOnStart),
      m_requestsOtherStrokesToEnd(rhs.m_requestsOtherStrokesToEnd),
      m_canForgetAboutMe(rhs.m_canForgetAboutMe),
      m_asynchronouslyCancellable(rhs.m_asynchronouslyCancellable),
      m_needsExplicitCancel(rhs.m_needsExplicitCancel),
      m_forceLodModeIfPossible(rhs.m_forceLodModeIfPossible),
      m_balancingRatioOverride(rhs.m_balancingRatioOverride),
      m_id(rhs.m_id),
      m_name(rhs.m_name),
      m_mutatedJobsInterface(0)
{
    KIS_ASSERT_RECOVER_NOOP(!rhs.m_strokeId && !m_mutatedJobsInterface &&
                            "After the stroke has been started, no copying must happen");
}

References KIS_ASSERT_RECOVER_NOOP, m_mutatedJobsInterface, and m_strokeId.

Member Function Documentation

addMutatedJob()

void KisStrokeStrategy::addMutatedJob ( KisStrokeJobData * data )

protected

Convenience override for addMutatedJobs()

Definition at line 177 of file kis_stroke_strategy.cpp.

{
    addMutatedJobs({data});
}

References addMutatedJobs().

addMutatedJobs()

void KisStrokeStrategy::addMutatedJobs ( const QVector< KisStrokeJobData * > list )

protected

This function is supposed to be called by internal asynchronous jobs. It allows adding subtasks that may be executed concurrently.

Requirements:

• must be called only from within the context of the strokes worker thread during execution of one of its jobs

Guarantees:

• the added job is guaranteed to be executed in some time after the currently executed job, before the next SEQUENTIAL or BARRIER job
• if the currently executed job is CONCURRENT, the mutated job may start execution right after adding to the queue without waiting for its parent to complete. Though this behavior is not guaranteed, because addMutatedJob does not initiate processQueues(), because it may lead to a deadlock.

Definition at line 167 of file kis_stroke_strategy.cpp.

{
    KIS_SAFE_ASSERT_RECOVER(m_mutatedJobsInterface && m_strokeId) {
        qDeleteAll(list);
        return;
    }

    m_mutatedJobsInterface->addMutatedJobs(m_strokeId, list);
}

balancingRatioOverride()

qreal KisStrokeStrategy::balancingRatioOverride

(

)

const

See also

setBalancingRatioOverride() for details

Definition at line 242 of file kis_stroke_strategy.cpp.

{
    return m_balancingRatioOverride;
}

References m_balancingRatioOverride.

canForgetAboutMe()

bool KisStrokeStrategy::canForgetAboutMe

(

)

const

Returns true if the update scheduler can cancel this stroke when some other stroke is going to be started. This makes the "forgettable" stroke very low priority.

Default is 'false'.

Definition at line 212 of file kis_stroke_strategy.cpp.

{
    return m_canForgetAboutMe;
}

References m_canForgetAboutMe.

clearsRedoOnStart()

bool KisStrokeStrategy::clearsRedoOnStart

(

)

const

Returns true if mere start of the stroke should cancel all the pending redo tasks.

This method should return true in almost all circumstances except if we are running an undo or redo stroke.

Definition at line 192 of file kis_stroke_strategy.cpp.

{
    return m_clearsRedoOnStart;
}

References m_clearsRedoOnStart.

createCancelData()

KisStrokeJobData * KisStrokeStrategy::createCancelData ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 109 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createCancelStrategy()

KisStrokeJobStrategy * KisStrokeStrategy::createCancelStrategy ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 79 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createDabStrategy()

KisStrokeJobStrategy * KisStrokeStrategy::createDabStrategy ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 84 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createFinishData()

KisStrokeJobData * KisStrokeStrategy::createFinishData ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 104 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createFinishStrategy()

KisStrokeJobStrategy * KisStrokeStrategy::createFinishStrategy ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 74 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createInitData()

KisStrokeJobData * KisStrokeStrategy::createInitData ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 99 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createInitStrategy()

KisStrokeJobStrategy * KisStrokeStrategy::createInitStrategy ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 69 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createLodClone()

KisStrokeStrategy * KisStrokeStrategy::createLodClone ( int levelOfDetail )

virtual

Reimplemented in KisRegenerateFrameStrokeStrategy, KisSwitchTimeStrokeStrategy, KisColorizeStrokeStrategy, KisIdleTaskStrokeStrategy, FreehandStrokeStrategy, KisColorSamplerStrokeStrategy, KisFilterStrokeStrategy, MoveStrokeStrategy, and MoveSelectionStrokeStrategy.

Definition at line 124 of file kis_stroke_strategy.cpp.

{
    Q_UNUSED(levelOfDetail);
    return 0;
}

createResumeData()

KisStrokeJobData * KisStrokeStrategy::createResumeData ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 119 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createResumeStrategy()

KisStrokeJobStrategy * KisStrokeStrategy::createResumeStrategy ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 94 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createSuspendData()

KisStrokeJobData * KisStrokeStrategy::createSuspendData ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 114 of file kis_stroke_strategy.cpp.

{
    return 0;
}

createSuspendStrategy()

KisStrokeJobStrategy * KisStrokeStrategy::createSuspendStrategy ( )

virtual

Reimplemented in KisSimpleStrokeStrategy.

Definition at line 89 of file kis_stroke_strategy.cpp.

{
    return 0;
}

currentLodPreferences()

KisLodPreferences KisStrokeStrategy::currentLodPreferences

(

)

const

Returns current lod preferences of the strokes queue

Definition at line 155 of file kis_stroke_strategy.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE(m_mutatedJobsInterface, KisLodPreferences());
    return m_mutatedJobsInterface->lodPreferences();
}

References KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE, KisStrokesQueueMutatedJobInterface::lodPreferences(), and m_mutatedJobsInterface.

forceLodModeIfPossible()

bool KisStrokeStrategy::forceLodModeIfPossible

(

)

const

Definition at line 47 of file kis_stroke_strategy.cpp.

{
    return m_forceLodModeIfPossible;
}

References m_forceLodModeIfPossible.

id()

QString KisStrokeStrategy::id

(

)

const

Definition at line 145 of file kis_stroke_strategy.cpp.

{
    return m_id;
}

References m_id.

isAsynchronouslyCancellable()

bool KisStrokeStrategy::isAsynchronouslyCancellable

(

)

const

Returns true if the stroke can be cancelled by the engine, e.g. when the user presses Esc key or Ctrl+Z shortcut. Default value is true. The only exception right now are the strokes that perform undo/redo operations.

The owner of the stroke can still cancel the stroke via the strokeId handle (though it is not used for undo/redo strokes).

Definition at line 222 of file kis_stroke_strategy.cpp.

{
    return m_asynchronouslyCancellable;
}

References m_asynchronouslyCancellable.

isExclusive()

bool KisStrokeStrategy::isExclusive

(

)

const

Definition at line 135 of file kis_stroke_strategy.cpp.

{
    return m_exclusive;
}

References m_exclusive.

name()

KUndo2MagicString KisStrokeStrategy::name

(

)

const

Definition at line 150 of file kis_stroke_strategy.cpp.

{
    return m_name;
}

References m_name.

needsExplicitCancel()

bool KisStrokeStrategy::needsExplicitCancel

(

)

const

Definition at line 232 of file kis_stroke_strategy.cpp.

{
    return m_needsExplicitCancel;
}

References m_needsExplicitCancel.

notifyUserEndedStroke()

void KisStrokeStrategy::notifyUserEndedStroke ( )

virtual

notifyUserEndedStroke() is a callback used by the strokes system to notify when the user ends the stroke. That moment corresponds to the user calling strokesFacade->endStroke(id) and might happen much earlier when the stroke even started its execution.

NOTE: this method will be executed in the context of the GUI thread!

Reimplemented in FreehandStrokeStrategy.

Definition at line 65 of file kis_stroke_strategy.cpp.

{
}

notifyUserStartedStroke()

void KisStrokeStrategy::notifyUserStartedStroke ( )

virtual

notifyUserStartedStroke() is a callback used by the strokes system to notify when the user adds the stroke to the strokes queue. That moment corresponds to the user calling strokesFacade->startStroke(strategy) and might happen much earlier than the first job being executed.

NOTE: this method will be executed in the context of the GUI thread!

Reimplemented in FreehandStrokeStrategy.

Definition at line 61 of file kis_stroke_strategy.cpp.

{
}

requestsOtherStrokesToEnd()

bool KisStrokeStrategy::requestsOtherStrokesToEnd

(

)

const

Returns true if the other currently running strokes should be politely asked to exit. The default value is 'true'.

The only known exception right now is KisRegenerateFrameStrokeStrategy which does not requests ending of any actions, since it performs purely background action.

Definition at line 202 of file kis_stroke_strategy.cpp.

{
    return m_requestsOtherStrokesToEnd;
}

References m_requestsOtherStrokesToEnd.

setAsynchronouslyCancellable()

void KisStrokeStrategy::setAsynchronouslyCancellable ( bool value )

protected

Definition at line 227 of file kis_stroke_strategy.cpp.

{
    m_asynchronouslyCancellable = value;
}

References m_asynchronouslyCancellable, and value().

setBalancingRatioOverride()

void KisStrokeStrategy::setBalancingRatioOverride ( qreal value )

protected

Set override for the desired scheduler balancing ratio:

ratio = stroke jobs / update jobs

If value < 1.0, then the priority is given to updates, if the value is higher than 1.0, then the priority is given to stroke jobs.

Special value -1.0, suggests the scheduler to use the default value set by the user's config file (which is 100.0 by default).

Definition at line 247 of file kis_stroke_strategy.cpp.

{
    m_balancingRatioOverride = value;
}

References m_balancingRatioOverride, and value().

setCanForgetAboutMe()

void KisStrokeStrategy::setCanForgetAboutMe ( bool value )

protected

Definition at line 217 of file kis_stroke_strategy.cpp.

{
    m_canForgetAboutMe = value;
}

References m_canForgetAboutMe, and value().

setClearsRedoOnStart()

void KisStrokeStrategy::setClearsRedoOnStart ( bool value )

protected

Definition at line 197 of file kis_stroke_strategy.cpp.

{
    m_clearsRedoOnStart = value;
}

References m_clearsRedoOnStart, and value().

setExclusive()

void KisStrokeStrategy::setExclusive ( bool value )

protected

Definition at line 182 of file kis_stroke_strategy.cpp.

{
    m_exclusive = value;
}

References m_exclusive, and value().

setForceLodModeIfPossible()

void KisStrokeStrategy::setForceLodModeIfPossible

(

bool

forceLodModeIfPossible

)

Definition at line 52 of file kis_stroke_strategy.cpp.

{
    m_forceLodModeIfPossible = value;
}

References m_forceLodModeIfPossible, and value().

setMutatedJobsInterface()

void KisStrokeStrategy::setMutatedJobsInterface	(	KisStrokesQueueMutatedJobInterface *	mutatedJobsInterface,
		KisStrokeId	strokeId )

Definition at line 161 of file kis_stroke_strategy.cpp.

{
    m_mutatedJobsInterface = mutatedJobsInterface;
    m_strokeId = strokeId;
}

References m_mutatedJobsInterface, and m_strokeId.

setNeedsExplicitCancel()

void KisStrokeStrategy::setNeedsExplicitCancel ( bool value )

protected

Definition at line 237 of file kis_stroke_strategy.cpp.

{
    m_needsExplicitCancel = value;
}

References m_needsExplicitCancel, and value().

setRequestsOtherStrokesToEnd()

void KisStrokeStrategy::setRequestsOtherStrokesToEnd ( bool value )

protected

Definition at line 207 of file kis_stroke_strategy.cpp.

{
    m_requestsOtherStrokesToEnd = value;
}

References m_requestsOtherStrokesToEnd, and value().

setSupportsWrapAroundMode()

void KisStrokeStrategy::setSupportsWrapAroundMode ( bool value )

protected

Definition at line 187 of file kis_stroke_strategy.cpp.

{
    m_supportsWrapAroundMode = value;
}

References m_supportsWrapAroundMode, and value().

supportsWrapAroundMode()

bool KisStrokeStrategy::supportsWrapAroundMode

(

)

const

Definition at line 140 of file kis_stroke_strategy.cpp.

{
    return m_supportsWrapAroundMode;
}

References m_supportsWrapAroundMode.

tryCancelCurrentStrokeJobAsync()

void KisStrokeStrategy::tryCancelCurrentStrokeJobAsync ( )

virtual

tryCancelCurrentStrokeJobAsync is called by the strokes queue when the stroke is being cancelled. The stroke strategy may or may not handle this request and cancel the currently running long action.

Reimplemented in KisColorizeStrokeStrategy.

Definition at line 130 of file kis_stroke_strategy.cpp.

{
    // noop
}

Friends And Related Symbol Documentation

KisMutatableDabStrategy

friend class KisMutatableDabStrategy

friend

Definition at line 136 of file kis_stroke_strategy.h.

Member Data Documentation

m_asynchronouslyCancellable

bool KisStrokeStrategy::m_asynchronouslyCancellable

private

Definition at line 202 of file kis_stroke_strategy.h.

m_balancingRatioOverride

qreal KisStrokeStrategy::m_balancingRatioOverride

private

Definition at line 205 of file kis_stroke_strategy.h.

m_canForgetAboutMe

bool KisStrokeStrategy::m_canForgetAboutMe

private

Definition at line 201 of file kis_stroke_strategy.h.

m_clearsRedoOnStart

bool KisStrokeStrategy::m_clearsRedoOnStart

private

Definition at line 199 of file kis_stroke_strategy.h.

m_exclusive

bool KisStrokeStrategy::m_exclusive

private

Definition at line 196 of file kis_stroke_strategy.h.

m_forceLodModeIfPossible

bool KisStrokeStrategy::m_forceLodModeIfPossible

private

Definition at line 204 of file kis_stroke_strategy.h.

m_id

QLatin1String KisStrokeStrategy::m_id

private

Definition at line 207 of file kis_stroke_strategy.h.

m_mutatedJobsInterface

KisStrokesQueueMutatedJobInterface* KisStrokeStrategy::m_mutatedJobsInterface

private

Definition at line 211 of file kis_stroke_strategy.h.

m_name

KUndo2MagicString KisStrokeStrategy::m_name

private

Definition at line 208 of file kis_stroke_strategy.h.

m_needsExplicitCancel

bool KisStrokeStrategy::m_needsExplicitCancel

private

Definition at line 203 of file kis_stroke_strategy.h.

m_requestsOtherStrokesToEnd

bool KisStrokeStrategy::m_requestsOtherStrokesToEnd

private

Definition at line 200 of file kis_stroke_strategy.h.

m_strokeId

KisStrokeId KisStrokeStrategy::m_strokeId

private

Definition at line 210 of file kis_stroke_strategy.h.

m_supportsWrapAroundMode

bool KisStrokeStrategy::m_supportsWrapAroundMode

private

Definition at line 197 of file kis_stroke_strategy.h.

---

The documentation for this class was generated from the following files:

• libs/image/kis_stroke_strategy.h
• libs/image/kis_stroke_strategy.cpp
