#include <KisIdleTaskStrokeStrategy.h>

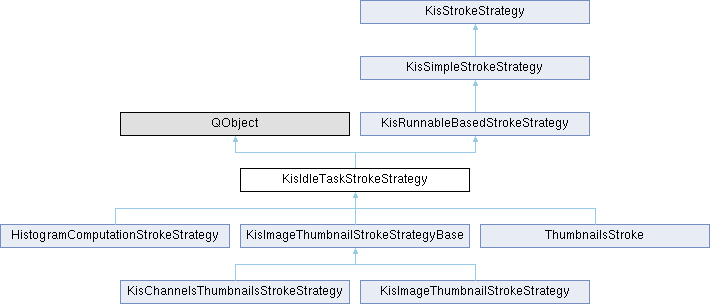

Inheritance diagram for KisIdleTaskStrokeStrategy:

Signals
void	sigIdleTaskFinished ()

Public Member Functions
KisStrokeStrategy *	createLodClone (int levelOfDetail) override

QWeakPointer< boost::none_t >	idleTaskCookie ()

	KisIdleTaskStrokeStrategy (const QLatin1String &id, const KUndo2MagicString &name=KUndo2MagicString())

	~KisIdleTaskStrokeStrategy ()

Public Member Functions inherited from KisRunnableBasedStrokeStrategy
void	doStrokeCallback (KisStrokeJobData *data) override

	KisRunnableBasedStrokeStrategy (const KisRunnableBasedStrokeStrategy &rhs)

	KisRunnableBasedStrokeStrategy (const QLatin1String &id, const KUndo2MagicString &name=KUndo2MagicString())

KisRunnableStrokeJobsInterface *	runnableJobsInterface () const

	~KisRunnableBasedStrokeStrategy ()

Public Member Functions inherited from KisSimpleStrokeStrategy
virtual void	cancelStrokeCallback ()

KisStrokeJobData *	createCancelData () override

KisStrokeJobStrategy *	createCancelStrategy () override

KisStrokeJobStrategy *	createDabStrategy () override

KisStrokeJobData *	createFinishData () override

KisStrokeJobStrategy *	createFinishStrategy () override

KisStrokeJobData *	createInitData () override

KisStrokeJobStrategy *	createInitStrategy () override

KisStrokeJobData *	createResumeData () override

KisStrokeJobStrategy *	createResumeStrategy () override

KisStrokeJobData *	createSuspendData () override

KisStrokeJobStrategy *	createSuspendStrategy () override

	KisSimpleStrokeStrategy (const QLatin1String &id, const KUndo2MagicString &name=KUndo2MagicString())

virtual void	resumeStrokeCallback ()

virtual void	suspendStrokeCallback ()

Public Member Functions inherited from KisStrokeStrategy
qreal	balancingRatioOverride () const

bool	canForgetAboutMe () const

bool	clearsRedoOnStart () const

KisLodPreferences	currentLodPreferences () const

bool	forceLodModeIfPossible () const

QString	id () const

bool	isAsynchronouslyCancellable () const

bool	isExclusive () const

	KisStrokeStrategy (const QLatin1String &id, const KUndo2MagicString &name=KUndo2MagicString())

KUndo2MagicString	name () const

bool	needsExplicitCancel () const

virtual void	notifyUserEndedStroke ()

virtual void	notifyUserStartedStroke ()

bool	requestsOtherStrokesToEnd () const

void	setForceLodModeIfPossible (bool forceLodModeIfPossible)

void	setMutatedJobsInterface (KisStrokesQueueMutatedJobInterface *mutatedJobsInterface, KisStrokeId strokeId)

bool	supportsWrapAroundMode () const

virtual void	tryCancelCurrentStrokeJobAsync ()
	tryCancelCurrentStrokeJobAsync is called by the strokes queue when the stroke is being cancelled. The stroke strategy may or may not handle this request and cancel the currently running long action.

virtual	~KisStrokeStrategy ()

Static Public Member Functions
static int	preferredIdleTaskMaximumTime ()

static int	preferredIdleWatcherInterval ()

Static Public Member Functions inherited from KisSimpleStrokeStrategy
static QLatin1String	jobTypeToString (JobType type)

Protected Member Functions
void	finishStrokeCallback () override

void	initStrokeCallback () override

Protected Member Functions inherited from KisSimpleStrokeStrategy
void	enableJob (JobType type, bool enable=true, KisStrokeJobData::Sequentiality sequentiality=KisStrokeJobData::SEQUENTIAL, KisStrokeJobData::Exclusivity exclusivity=KisStrokeJobData::NORMAL)

	KisSimpleStrokeStrategy (const KisSimpleStrokeStrategy &rhs)

Protected Member Functions inherited from KisStrokeStrategy
void	addMutatedJob (KisStrokeJobData *data)

void	addMutatedJobs (const QVector< KisStrokeJobData * > list)

	KisStrokeStrategy (const KisStrokeStrategy &rhs)

void	setAsynchronouslyCancellable (bool value)

void	setBalancingRatioOverride (qreal value)

void	setCanForgetAboutMe (bool value)

void	setClearsRedoOnStart (bool value)

void	setExclusive (bool value)

void	setNeedsExplicitCancel (bool value)

void	setRequestsOtherStrokesToEnd (bool value)

void	setSupportsWrapAroundMode (bool value)

Private Attributes
QElapsedTimer	m_idleStrokeTime

QSharedPointer< boost::none_t >	m_idleTaskCookie

Additional Inherited Members
Public Types inherited from KisSimpleStrokeStrategy
enum	JobType { JOB_INIT = 0 , JOB_CANCEL , JOB_FINISH , JOB_DOSTROKE , JOB_SUSPEND , JOB_RESUME , NJOBS }

Detailed Description

A base class for strategies used in "idle tasks". Such strategy does not modify any undo stack and can be cancelled by the image at any moment (e.g. when the user starts a real brush stroke).

If you need to handle the cancellation event, implement cancelStrokeCallback() function.

Definition at line 26 of file KisIdleTaskStrokeStrategy.h.

Constructor & Destructor Documentation

◆ KisIdleTaskStrokeStrategy()

KisIdleTaskStrokeStrategy::KisIdleTaskStrokeStrategy	(	const QLatin1String &	id,
		const KUndo2MagicString &	name = KUndo2MagicString() )

Definition at line 9 of file KisIdleTaskStrokeStrategy.cpp.

    : KisRunnableBasedStrokeStrategy(id, name)
{
    enableJob(KisSimpleStrokeStrategy::JOB_INIT, true, KisStrokeJobData::BARRIER, KisStrokeJobData::EXCLUSIVE);
    enableJob(KisSimpleStrokeStrategy::JOB_DOSTROKE);
    enableJob(KisSimpleStrokeStrategy::JOB_FINISH, true, KisStrokeJobData::SEQUENTIAL, KisStrokeJobData::EXCLUSIVE);
    enableJob(KisSimpleStrokeStrategy::JOB_CANCEL, true, KisStrokeJobData::SEQUENTIAL, KisStrokeJobData::EXCLUSIVE);

    setRequestsOtherStrokesToEnd(false);
    setClearsRedoOnStart(false);
    setCanForgetAboutMe(true);
}

References KisStrokeJobData::BARRIER, KisSimpleStrokeStrategy::enableJob(), KisStrokeJobData::EXCLUSIVE, KisSimpleStrokeStrategy::JOB_CANCEL, KisSimpleStrokeStrategy::JOB_DOSTROKE, KisSimpleStrokeStrategy::JOB_FINISH, KisSimpleStrokeStrategy::JOB_INIT, KisStrokeJobData::SEQUENTIAL, KisStrokeStrategy::setCanForgetAboutMe(), KisStrokeStrategy::setClearsRedoOnStart(), and KisStrokeStrategy::setRequestsOtherStrokesToEnd().

◆ ~KisIdleTaskStrokeStrategy()

KisIdleTaskStrokeStrategy::~KisIdleTaskStrokeStrategy ( )

default

Member Function Documentation

◆ createLodClone()

KisStrokeStrategy * KisIdleTaskStrokeStrategy::createLodClone ( int levelOfDetail )

overridevirtual

We do not generate preview for Instant Preview mode. Even though we could do that, it is not very needed, because KisIdleWatcher ensures that overview preview is generated only when all the background jobs are completed.

The only thing we should do about Instant Preview is to avoid resetting LoDN planes, when the thumbnail is running. Therefore we should return a fake noop strategy as our LoDN clone (that is a marker of non-legacy stroke for the scheduler)

Reimplemented from KisStrokeStrategy.

Definition at line 25 of file KisIdleTaskStrokeStrategy.cpp.

{
    Q_UNUSED(levelOfDetail);
    return new KisSimpleStrokeStrategy(QLatin1String("KisIdleTaskStrokeStrategy_FakeLodN"));
}

References KisSimpleStrokeStrategy::KisSimpleStrokeStrategy().

◆ finishStrokeCallback()

void KisIdleTaskStrokeStrategy::finishStrokeCallback ( )

overrideprotectedvirtual

Just a small sanity check if idle tasks don't occupy too much time and don't interfere with user's workflow. Theoretically, even if the time consumed is too high, it may still be acceptable if the task is split in multiple jobs, which would be cancelled but the user's action.

Reimplemented from KisSimpleStrokeStrategy.

Definition at line 47 of file KisIdleTaskStrokeStrategy.cpp.

{
    Q_EMIT sigIdleTaskFinished();

    const qint64 elapsedTime = m_idleStrokeTime.elapsed();

    if (elapsedTime > preferredIdleTaskMaximumTime()) {
        qWarning() << "WARNING: idle task consumed more than" <<
                      preferredIdleTaskMaximumTime() <<
                      "ms, it can cause visible distractions to the user";
        qWarning() << "WARNING: time consumed in" << id() <<
                      "is" << elapsedTime << "ms";
    }
}

References KisStrokeStrategy::id(), m_idleStrokeTime, preferredIdleTaskMaximumTime(), and sigIdleTaskFinished().

◆ idleTaskCookie()

QWeakPointer< boost::none_t > KisIdleTaskStrokeStrategy::idleTaskCookie ( )

Definition at line 68 of file KisIdleTaskStrokeStrategy.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE(!m_idleTaskCookie, m_idleTaskCookie);
    m_idleTaskCookie.reset(new boost::none_t(boost::none));
    return m_idleTaskCookie;
}

References KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE, and m_idleTaskCookie.

◆ initStrokeCallback()

void KisIdleTaskStrokeStrategy::initStrokeCallback ( )

overrideprotectedvirtual

Reimplemented from KisSimpleStrokeStrategy.

Reimplemented in KisImageThumbnailStrokeStrategyBase, and ThumbnailsStroke.

Definition at line 42 of file KisIdleTaskStrokeStrategy.cpp.

{
    m_idleStrokeTime.start();
}

References m_idleStrokeTime.

◆ preferredIdleTaskMaximumTime()

int KisIdleTaskStrokeStrategy::preferredIdleTaskMaximumTime ( )

static

Sometimes (unless split into multiple jobs) idle tasks can interfere with user actions. We have a sanity check that checks if the tasks are quick enough to not interfere into the user's actions. This time limit is the maximum "allowed" idle task size.

Definition of "allowed" here is not strict, since the tasks are not cancelled when reaching the limit. Just a warning is spit into the terminal.

Definition at line 75 of file KisIdleTaskStrokeStrategy.cpp.

{
    return 200; // ms
}

◆ preferredIdleWatcherInterval()

int KisIdleTaskStrokeStrategy::preferredIdleWatcherInterval ( )

static

Preferred idle watcher interval for checks of the image idleness state. Idle watcher checks the image four times before starting an idle task, so the actual idle task delay is 4 * preferredIdleWatcherInterval() milliseconds.

Definition at line 91 of file KisIdleTaskStrokeStrategy.cpp.

{
    return 50; // ms
}

◆ sigIdleTaskFinished

void KisIdleTaskStrokeStrategy::sigIdleTaskFinished ( )

signal

Member Data Documentation

◆ m_idleStrokeTime

QElapsedTimer KisIdleTaskStrokeStrategy::m_idleStrokeTime

private

Definition at line 47 of file KisIdleTaskStrokeStrategy.h.

◆ m_idleTaskCookie

QSharedPointer<boost::none_t> KisIdleTaskStrokeStrategy::m_idleTaskCookie

private

Definition at line 46 of file KisIdleTaskStrokeStrategy.h.

The documentation for this class was generated from the following files:

libs/ui/KisIdleTaskStrokeStrategy.h
libs/ui/KisIdleTaskStrokeStrategy.cpp
