The command for setting the composite op. More...

#include <kis_node_compositeop_command.h>

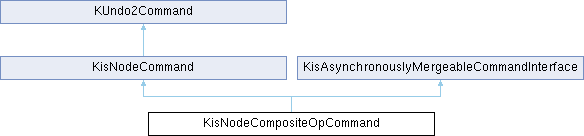

Inheritance diagram for KisNodeCompositeOpCommand:

Public Member Functions
bool	canAnnihilateWith (const KUndo2Command *command) const override

bool	canMergeWith (const KUndo2Command *command) const override

int	id () const override

	KisNodeCompositeOpCommand (KisNodeSP node, const QString &newCompositeOp)

bool	mergeWith (const KUndo2Command *command) override

void	redo () override

void	undo () override

Public Member Functions inherited from KisNodeCommand
	KisNodeCommand (const KUndo2MagicString &name, KisNodeSP node)

	~KisNodeCommand () override

Public Member Functions inherited from KUndo2Command
QString	actionText () const

const KUndo2Command *	child (int index) const

int	childCount () const

virtual QTime	endTime () const

KUndo2CommandExtraData *	extraData () const

bool	hasParent () const

virtual bool	isMerged () const

	KUndo2Command (const KUndo2MagicString &text, KUndo2Command *parent=0)

	KUndo2Command (KUndo2Command *parent=0)

virtual QVector< KUndo2Command * >	mergeCommandsVector () const

virtual void	redoMergedCommands ()

void	setEndTime ()

virtual void	setEndTime (const QTime &time)

void	setExtraData (KUndo2CommandExtraData *data)

void	setText (const KUndo2MagicString &text)

void	setTime ()

virtual void	setTime (const QTime &time)

virtual void	setTimedID (int timedID)

KUndo2MagicString	text () const

virtual QTime	time () const

virtual int	timedId () const

virtual bool	timedMergeWith (KUndo2Command *other)

virtual void	undoMergedCommands ()

virtual	~KUndo2Command ()

Public Member Functions inherited from KisAsynchronouslyMergeableCommandInterface
virtual	~KisAsynchronouslyMergeableCommandInterface ()

Private Member Functions
void	setCompositeOpImpl (const QString &compositeOp)

Private Attributes
QString	m_newCompositeOp

boost::optional< QString >	m_oldCompositeOp

Additional Inherited Members
Protected Attributes inherited from KisNodeCommand
KisNodeSP	m_node

Detailed Description

The command for setting the composite op.

Definition at line 15 of file kis_node_compositeop_command.h.

Constructor & Destructor Documentation

◆ KisNodeCompositeOpCommand()

KisNodeCompositeOpCommand::KisNodeCompositeOpCommand	(	KisNodeSP	node,
		const QString &	newCompositeOp )

Constructor

Parameters

node	The node the command will be working on.
oldCompositeOp	the old node composite op
newCompositeOp	the new node composite op

Definition at line 14 of file kis_node_compositeop_command.cpp.

                                                                                                  :
        KisNodeCommand(kundo2_i18n("Composition Mode Change"), node)
{
    m_newCompositeOp = newCompositeOp;
}

References m_newCompositeOp.

Member Function Documentation

◆ canAnnihilateWith()

bool KisNodeCompositeOpCommand::canAnnihilateWith ( const KUndo2Command * other ) const

overridevirtual

Attempts to merge this command with command and checks if the two commands compensate each other. If the function returns true, both commands are removed from the stack.

If this function returns true, calling this command's redo() followed by other redo() must have no effect.

The function itself shouldn't do any changes to the command, because after returning true, the command will be deleted as a "noop"

KUndo2QStack will only try to merge two commands if they have the same id, and the id is not -1.

The default implementation returns false.

See also: id() KUndo2QStack::push()

Reimplemented from KUndo2Command.

Definition at line 76 of file kis_node_compositeop_command.cpp.

{
    const KisNodeCompositeOpCommand *other =
        dynamic_cast<const KisNodeCompositeOpCommand*>(command);

    if (!other || other->m_node != m_node) {
        return false;
    }

    KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE(m_oldCompositeOp, false);
    return *m_oldCompositeOp == other->m_newCompositeOp;
}

References KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE, m_newCompositeOp, KisNodeCommand::m_node, and m_oldCompositeOp.

◆ canMergeWith()

bool KisNodeCompositeOpCommand::canMergeWith ( const KUndo2Command * command ) const

overridevirtual

Returns: true if command can be merged with (*this) command using KUndo2Command::mergeWith() call.

WARNING: if canMergeWith() returned true, then mergeWith() must also return true. Otherwise KisSavedMacroCommand will be able to enter inconsistent state and assert.

Implements KisAsynchronouslyMergeableCommandInterface.

Definition at line 68 of file kis_node_compositeop_command.cpp.

{
    const KisNodeCompositeOpCommand *other =
        dynamic_cast<const KisNodeCompositeOpCommand*>(command);

    return other && other->m_node == m_node;
}

References KisNodeCommand::m_node.

◆ id()

int KisNodeCompositeOpCommand::id ( ) const

overridevirtual

Returns the ID of this command.

A command ID is used in command compression. It must be an integer unique to this command's class, or -1 if the command doesn't support compression.

If the command supports compression this function must be overridden in the derived class to return the correct ID. The base implementation returns -1.

KUndo2QStack::push() will only try to merge two commands if they have the same ID, and the ID is not -1.

See also: mergeWith(), KUndo2QStack::push()

Reimplemented from KUndo2Command.

Definition at line 45 of file kis_node_compositeop_command.cpp.

{
    return KisCommandUtils::ChangeNodeCompositeOpId;
}

References KisCommandUtils::ChangeNodeCompositeOpId.

◆ mergeWith()

bool KisNodeCompositeOpCommand::mergeWith ( const KUndo2Command * command )

overridevirtual

Attempts to merge this command with command. Returns true on success; otherwise returns false.

If this function returns true, calling this command's redo() must have the same effect as redoing both this command and command. Similarly, calling this command's undo() must have the same effect as undoing command and this command.

KUndo2QStack will only try to merge two commands if they have the same id, and the id is not -1.

The default implementation returns false.

See also: id() KUndo2QStack::push()

Reimplemented from KUndo2Command.

Definition at line 50 of file kis_node_compositeop_command.cpp.

{
    const KisNodeCompositeOpCommand *other =
        dynamic_cast<const KisNodeCompositeOpCommand*>(command);

    if (other && other->m_node == m_node) {
        // verify both commands have been executed and they are consecutive
        KIS_SAFE_ASSERT_RECOVER_NOOP(m_oldCompositeOp);
        KIS_SAFE_ASSERT_RECOVER_NOOP(other->m_oldCompositeOp);
        KIS_SAFE_ASSERT_RECOVER_NOOP(other->m_oldCompositeOp && m_newCompositeOp == other->m_oldCompositeOp);

        m_newCompositeOp = other->m_newCompositeOp;
        return true;
    }

    return false;
}

References KIS_SAFE_ASSERT_RECOVER_NOOP, m_newCompositeOp, KisNodeCommand::m_node, and m_oldCompositeOp.

◆ redo()

void KisNodeCompositeOpCommand::redo ( )

overridevirtual

Applies a change to the document. This function must be implemented in the derived class. Calling KUndo2QStack::push(), KUndo2QStack::undo() or KUndo2QStack::redo() from this function leads to undefined behavior.

The default implementation calls redo() on all child commands.

See also: undo()

Reimplemented from KUndo2Command.

Definition at line 31 of file kis_node_compositeop_command.cpp.

{
    if (!m_oldCompositeOp) {
        m_oldCompositeOp = m_node->compositeOpId();
    }
    setCompositeOpImpl(m_newCompositeOp);
}

References KisBaseNode::compositeOpId(), m_newCompositeOp, KisNodeCommand::m_node, m_oldCompositeOp, and setCompositeOpImpl().

◆ setCompositeOpImpl()

void KisNodeCompositeOpCommand::setCompositeOpImpl ( const QString & compositeOp )

private

The node might have had "Destination Atop" blending that changes extent of the layer

Definition at line 20 of file kis_node_compositeop_command.cpp.

{
    const QRect oldExtent = m_node->extent();
    m_node->setCompositeOpId(compositeOp);
    m_node->setDirty(oldExtent | m_node->extent());
}

References KisBaseNode::extent(), KisNodeCommand::m_node, KisBaseNode::setCompositeOpId(), and KisNode::setDirty().

◆ undo()

void KisNodeCompositeOpCommand::undo ( )

overridevirtual

Reverts a change to the document. After undo() is called, the state of the document should be the same as before redo() was called. This function must be implemented in the derived class. Calling KUndo2QStack::push(), KUndo2QStack::undo() or KUndo2QStack::redo() from this function leads to undefined behavior.

The default implementation calls undo() on all child commands in reverse order.

See also: redo()

Reimplemented from KUndo2Command.

Definition at line 39 of file kis_node_compositeop_command.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_RETURN(m_oldCompositeOp);
    setCompositeOpImpl(*m_oldCompositeOp);
}

References KIS_SAFE_ASSERT_RECOVER_RETURN, m_oldCompositeOp, and setCompositeOpImpl().

Member Data Documentation

◆ m_newCompositeOp

QString KisNodeCompositeOpCommand::m_newCompositeOp

private

Definition at line 41 of file kis_node_compositeop_command.h.

◆ m_oldCompositeOp

boost::optional<QString> KisNodeCompositeOpCommand::m_oldCompositeOp

private

Definition at line 40 of file kis_node_compositeop_command.h.

The documentation for this class was generated from the following files:

libs/image/commands/kis_node_compositeop_command.h
libs/image/commands/kis_node_compositeop_command.cpp
