#include <kis_node.h>

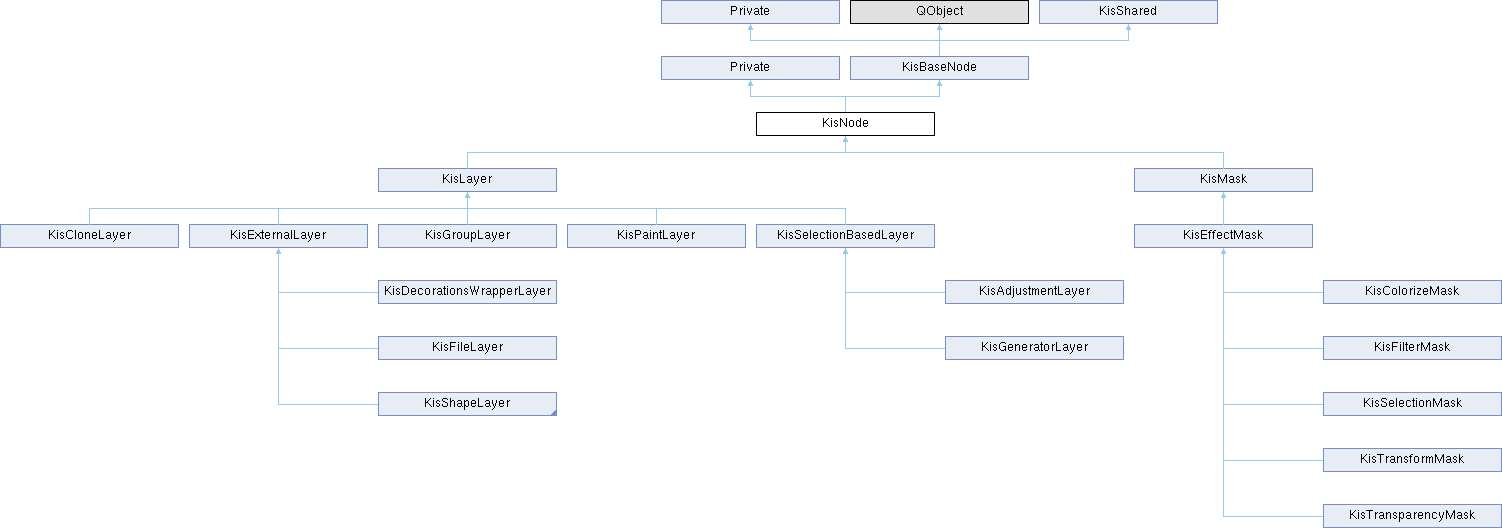

Inheritance diagram for KisNode:

Public Types
enum	PositionToFilthy { N_ABOVE_FILTHY = 0x08 , N_FILTHY_PROJECTION = 0x20 , N_FILTHY = 0x40 , N_BELOW_FILTHY = 0x80 }

Public Types inherited from KisBaseNode
typedef QList< Property >	PropertyList

Signals
void	sigNodeChangedInternal ()

Signals inherited from KisBaseNode
void	keyframeChannelAdded (KisKeyframeChannel *channel)

void	opacityChanged (quint8 value)

Public Member Functions
bool	accept (KisNodeVisitor &v) override

void	accept (KisProcessingVisitor &visitor, KisUndoAdapter *undoAdapter) override

virtual bool	allowAsChild (KisNodeSP) const =0

KisNodeSP	at (quint32 index) const

KisBusyProgressIndicator *	busyProgressIndicator () const

quint32	childCount () const

QList< KisNodeSP >	childNodes (const QStringList &nodeTypes, const KoProperties &properties) const

virtual KisNodeSP	clone () const =0

const KisNode *	findSymmetricClone (const KisNode srcRoot, const KisNode dstRoot, const KisNode *srcTarget)

KisNodeSP	firstChild () const

virtual KisPaintDeviceList	getLodCapableDevices () const

KisNodeGraphListener *	graphListener () const

int	graphSequenceNumber () const

void	handleKeyframeChannelFrameAboutToBeRemoved (const KisKeyframeChannel *channel, int time)

virtual void	handleKeyframeChannelFrameAdded (const KisKeyframeChannel *channel, int time)

virtual void	handleKeyframeChannelFrameChange (const KisKeyframeChannel *channel, int time)

void	handleKeyframeChannelFrameHasBeenRemoved (const KisKeyframeChannel *channel, int time)

KisFrameChangeUpdateRecipe	handleKeyframeChannelUpdateImpl (const KisKeyframeChannel *channel, int time)

int	index (const KisNodeSP node) const

void	invalidateFrames (const KisTimeSpan &range, const QRect &rect)

	KisNode (const KisNode &rhs)

	KisNode (KisImageWSP image)

KisNodeSP	lastChild () const

KisNodeSP	nextSibling () const

KisNodeProgressProxy *	nodeProgressProxy () const

KisNodeSP	parent () const

KisNodeSP	prevSibling () const

	Private (KisNode *node)

void	processDuplicatedClones (const KisNode srcDuplicationRoot, const KisNode dstDuplicationRoot, KisNode *node)

virtual KisProjectionLeafSP	projectionLeaf () const

virtual KisAbstractProjectionPlaneSP	projectionPlane () const

void	requestTimeSwitch (int time)

virtual void	setDirty ()

void	setDirty (const KisRegion &region)

void	setDirty (const QRect &rect)

virtual void	setDirty (const QVector< QRect > &rects)

void	setDirtyDontResetAnimationCache ()

void	setDirtyDontResetAnimationCache (const QRect &rect)

void	setDirtyDontResetAnimationCache (const QVector< QRect > &rects)
	setDirtyDontResetAnimationCache does almost the same thing as usual setDirty() call, but doesn't reset the animation cache (since onion skins are not used when rendering animation.

void	setGraphListener (KisNodeGraphListener *graphListener)

void	setImage (KisImageWSP newImage) override

virtual void	syncLodCache ()

	~KisNode () override

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisBaseNode
bool	belongsToIsolatedGroup () const

bool	check (const KoProperties &properties) const

bool	collapsed () const

int	colorLabelIndex () const

virtual KisPaintDeviceSP	colorSampleSourceDevice () const

virtual const KoColorSpace *	colorSpace () const =0

virtual const KoCompositeOp *	compositeOp () const =0

const QString &	compositeOpId () const

virtual QImage	createThumbnail (qint32 w, qint32 h, Qt::AspectRatioMode aspectRatioMode=Qt::IgnoreAspectRatio)

virtual QImage	createThumbnailForFrame (qint32 w, qint32 h, int time, Qt::AspectRatioMode aspectRatioMode=Qt::IgnoreAspectRatio)

void	enableAnimation ()

virtual QRect	exactBounds () const

virtual QRect	extent () const

KisKeyframeChannel *	getKeyframeChannel (const QString &id) const

KisKeyframeChannel *	getKeyframeChannel (const QString &id, bool create)

bool	hasEditablePaintDevice () const

virtual QIcon	icon () const

KisImageWSP	image () const

bool	isAnimated () const

bool	isEditable (bool checkVisibility=true) const

virtual bool	isFakeNode () const

bool	isIsolatedRoot () const

bool	isPinnedToTimeline () const

QMap< QString, KisKeyframeChannel * >	keyframeChannels () const

	KisBaseNode (const KisBaseNode &rhs)

	KisBaseNode (KisImageWSP image)

void	mergeNodeProperties (const KoProperties &properties)

QString	name () const

const KoProperties &	nodeProperties () const

quint8	opacity () const

virtual KisPaintDeviceSP	original () const =0

virtual KisPaintDeviceSP	paintDevice () const =0

quint8	percentOpacity () const

	Private (const Private &rhs)

	Private (KisImageWSP p_image)

virtual KisPaintDeviceSP	projection () const =0

virtual PropertyList	sectionModelProperties () const

void	setCollapsed (bool collapsed)

void	setColorLabelIndex (int index)

void	setCompositeOpId (const QString &compositeOpId)

void	setName (const QString &name)

void	setNodeProperty (const QString &name, const QVariant &value)

void	setOpacity (quint8 val)

void	setPercentOpacity (quint8 val)

void	setPinnedToTimeline (bool pinned)

virtual void	setSectionModelProperties (const PropertyList &properties)

virtual void	setUserLocked (bool l)

void	setUuid (const QUuid &id)

virtual void	setVisible (bool visible, bool loading=false)

virtual void	setX (qint32)

virtual void	setY (qint32)

virtual bool	supportsKeyframeChannel (const QString &id)

bool	supportsLodMoves () const

virtual bool	supportsLodPainting () const

virtual int	thumbnailSeqNo () const

virtual void	updateSettings ()

bool	userLocked () const

QUuid	uuid () const

virtual bool	visible (bool recursive=false) const

virtual qint32	x () const

virtual qint32	y () const

	~KisBaseNode () override

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Public Attributes
KisBusyProgressIndicator *	busyProgressIndicator

std::optional< KisFrameChangeUpdateRecipe >	frameRemovalUpdateRecipe

KisNodeGraphListener *	graphListener

KisNodeProgressProxy *	nodeProgressProxy

KisSafeReadNodeList	nodes

QReadWriteLock	nodeSubgraphLock

KisNodeWSP	parent

KisProjectionLeafSP	projectionLeaf

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Public Attributes inherited from KisBaseNode
bool	animated {false}

bool	collapsed {false}

QString	compositeOp

KisBaseNode::Property	hack_visible

QUuid	id

KisImageWSP	image

QMap< QString, KisKeyframeChannel * >	keyframeChannels

KisAnimatedOpacityProperty	opacityProperty

bool	pinnedToTimeline {false}

KoProperties	properties

bool	supportsLodMoves {false}

Protected Member Functions
virtual QRect	accessRect (const QRect &rect, PositionToFilthy pos=N_FILTHY) const

void	addKeyframeChannel (KisKeyframeChannel *channel) override

void	baseNodeChangedCallback () override

void	baseNodeCollapsedChangedCallback () override

void	baseNodeInvalidateAllFramesCallback () override

virtual QRect	changeRect (const QRect &rect, PositionToFilthy pos=N_FILTHY) const

virtual void	childNodeChanged (KisNodeSP changedChildNode)

virtual KisFrameChangeUpdateRecipe	handleKeyframeChannelFrameAboutToBeRemovedImpl (const KisKeyframeChannel *channel, int time)

virtual QRect	needRect (const QRect &rect, PositionToFilthy pos=N_FILTHY) const

void	notifyParentVisibilityChanged (bool value) override

KisBaseNodeSP	parentCallback () const override

Protected Member Functions inherited from KisBaseNode
virtual KisKeyframeChannel *	requestKeyframeChannel (const QString &id)

void	setSupportsLodMoves (bool value)

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Private Member Functions
bool	add (KisNodeSP newNode, KisNodeSP aboveThis, KisNodeAdditionFlags flags=KisNodeAdditionFlag::None)

void	createNodeProgressProxy ()

KisNodeSP	nextChildImpl (KisNodeSP child)

KisNodeSP	prevChildImpl (KisNodeSP child)

bool	remove (KisNodeSP node)

bool	remove (quint32 index)

void	setParent (KisNodeWSP parent)

Private Attributes
Private *const	m_d

Friends
class	KisFilterMaskTest

class	KisLayer

class	KisNodeFacade

class	KisNodeTest

Detailed Description

Note about "thread safety" of KisNode

1) One can read any information about node and node graph in any number of threads concurrently. This operation is safe because of the usage of KisSafeReadNodeList and will run concurrently (lock-free).

2) One can write any information into the node or node graph in a single thread only! Changing the graph concurrently is not sane and therefore not supported.

3) One can read and write information about the node graph concurrently, given that there is only one writer thread and any number of reader threads. Please note that in this case the node's code is just guaranteed not to crash, which is ensured by nodeSubgraphLock. You need to ensure the sanity of the data read by the reader threads yourself!

A KisNode is a KisBaseNode that knows about its direct peers, parent and children and whether it can have children.

THREAD-SAFETY: All const methods of this class and setDirty calls are considered to be thread-safe(!). All the others especially add(), remove() and setParent() must be protected externally.

NOTE: your subclasses must have the Q_OBJECT declaration, even if you do not define new signals or slots.

Definition at line 75 of file kis_node.cpp.

Member Enumeration Documentation

◆ PositionToFilthy

enum KisNode::PositionToFilthy

The struct describing the position of the node against the filthy node. NOTE: please change KisBaseRectsWalker::getPositionToFilthy when changing this struct

Enumerator
N_ABOVE_FILTHY
N_FILTHY_PROJECTION
N_FILTHY
N_BELOW_FILTHY

Definition at line 58 of file kis_node.h.

                          {
        N_ABOVE_FILTHY = 0x08,
        N_FILTHY_PROJECTION = 0x20,
        N_FILTHY = 0x40,
        N_BELOW_FILTHY = 0x80
    };

Constructor & Destructor Documentation

◆ KisNode() [1/2]

KisNode::KisNode ( KisImageWSP image )

Create an empty node without a parent.

Definition at line 167 of file kis_node.cpp.

        : KisBaseNode(image),
          m_d(new Private(this))
{
    m_d->parent = 0;
    m_d->graphListener = 0;
    moveToThread(qApp->thread());
}

References m_d.

◆ KisNode() [2/2]

KisNode::KisNode ( const KisNode & rhs )

Create a copy of this node. The copy will not have a parent node.

Definition at line 176 of file kis_node.cpp.

        : KisBaseNode(rhs)
        , m_d(new Private(this))
{
    m_d->parent = 0;
    m_d->graphListener = 0;
    moveToThread(qApp->thread());

    // NOTE: the nodes are not supposed to be added/removed while
    // creation of another node, so we do *no* locking here!

    KisSafeReadNodeList::const_iterator iter;
    FOREACH_SAFE(iter, rhs.m_d->nodes) {
        KisNodeSP child = (*iter)->clone();
        child->createNodeProgressProxy();
        m_d->nodes.append(child);
        child->setParent(this);
    }

    m_d->processDuplicatedClones(&rhs, this, this);
}

References clone(), createNodeProgressProxy(), FOREACH_SAFE, m_d, and setParent().

◆ ~KisNode()

KisNode::~KisNode ( )

override

Delete this node

Definition at line 198 of file kis_node.cpp.

{
    if (m_d->busyProgressIndicator) {
        m_d->busyProgressIndicator->prepareDestroying();
        m_d->busyProgressIndicator->deleteLater();
    }

    if (m_d->nodeProgressProxy) {
        m_d->nodeProgressProxy->prepareDestroying();
        m_d->nodeProgressProxy->deleteLater();
    }

    {
        QWriteLocker l(&m_d->nodeSubgraphLock);
        m_d->nodes.clear();
    }

    delete m_d;
}

References m_d.

Member Function Documentation

◆ accept() [1/2]

bool KisNode::accept ( KisNodeVisitor & )

overridevirtual

Accept the KisNodeVisitor (for the Visitor design pattern), should call the correct function on the KisNodeVisitor for this node type, so you need to override it for all leaf classes in the node inheritance hierarchy.

return false if the visitor could not successfully act on this node instance.

Reimplemented from KisBaseNode.

Reimplemented in KisShapeLayer, KisReferenceImagesLayer, KisPaintLayer, KisSelectionMask, KisTransformMask, and KisTransparencyMask.

Definition at line 269 of file kis_node.cpp.

{
    return v.visit(this);
}

References v.

◆ accept() [2/2]

void KisNode::accept	(	KisProcessingVisitor &	visitor,
		KisUndoAdapter *	undoAdapter )

overridevirtual

Accept the KisNodeVisitor (for the Visitor design pattern), should call the correct function on the KisProcessingVisitor for this node type, so you need to override it for all leaf classes in the node inheritance hierarchy.

The processing visitor differs from node visitor in the way that it accepts undo adapter, that allows the processing to be multithreaded

Reimplemented from KisBaseNode.

Reimplemented in KisPaintLayer, KisSelectionMask, KisTransformMask, KisTransparencyMask, KisShapeLayer, and KisReferenceImagesLayer.

Definition at line 274 of file kis_node.cpp.

{
    visitor.visit(this, undoAdapter);
}

References KisProcessingVisitor::visit().

◆ accessRect()

QRect KisNode::accessRect	(	const QRect &	rect,
		PositionToFilthy	pos = N_FILTHY ) const

protectedvirtual

Returns: internal accessRect() of the node. Do not mix with

See also: projectionPlane()

Shows the area of image, that may be accessed during accessing the node.

Example. You have a layer that needs to prepare some rect on a projection, say expectedRect. To perform this, the projection of all the layers below of the size needRect(expectedRect) should be calculated by the merger beforehand and the layer will access some other area of image inside the rect accessRect(expectedRect) during updateProjection call.

This knowledge about real access rect of a node is used by the scheduler to avoid collisions between two multithreaded updaters and so avoid flickering of the image.

Currently, this method has nondefault value for shifted clone layers only.

Reimplemented in KisCloneLayer.

Definition at line 230 of file kis_node.cpp.

{
    Q_UNUSED(pos);
    return rect;
}

◆ add()

bool KisNode::add	(	KisNodeSP	newNode,
		KisNodeSP	aboveThis,
		KisNodeAdditionFlags	flags = KisNodeAdditionFlag::None )

private

Add the specified node above the specified node. If aboveThis is 0, the node is added at the bottom.

Definition at line 469 of file kis_node.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE(newNode, false);
    KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE(!aboveThis || aboveThis->parent().data() == this, false);
    KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE(allowAsChild(newNode), false);
    KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE(!newNode->parent(), false);
    KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE(index(newNode) < 0, false);

    int idx = aboveThis ? this->index(aboveThis) + 1 : 0;

    // theoretical race condition may happen here ('idx' may become
    // deprecated until the write lock will be held). But we ignore
    // it, because it is not supported to add/remove nodes from two
    // concurrent threads simultaneously

    if (m_d->graphListener) {
        m_d->graphListener->aboutToAddANode(this, idx);
    }

    {
        QWriteLocker l(&m_d->nodeSubgraphLock);

        newNode->createNodeProgressProxy();

        m_d->nodes.insert(idx, newNode);

        newNode->setParent(this);
        newNode->setGraphListener(m_d->graphListener);
    }

    newNode->setImage(image());

    if (m_d->graphListener) {
        m_d->graphListener->nodeHasBeenAdded(this, idx, flags);
    }

    childNodeChanged(newNode);

    return true;
}

References allowAsChild(), childNodeChanged(), createNodeProgressProxy(), KisWeakSharedPtr< T >::data(), KisBaseNode::image, index(), KIS_SAFE_ASSERT_RECOVER_RETURN_VALUE, m_d, parent, setGraphListener(), setImage(), and setParent().

◆ addKeyframeChannel()

void KisNode::addKeyframeChannel ( KisKeyframeChannel * channel )

overrideprotectedvirtual

Add a keyframe channel for this node. The channel will be added to the common hash table which will be available to the UI.

WARNING: the channel object NOT become owned by the node! The caller must ensure manually that the lifetime of the object coincide with the lifetime of the node.

Reimplemented from KisBaseNode.

Definition at line 351 of file kis_node.cpp.

{
    channel->setNode(this);
    KisBaseNode::addKeyframeChannel(channel);

    if (m_d->graphListener) {
        m_d->graphListener->keyframeChannelHasBeenAdded(this, channel);
    }
}

References KisBaseNode::addKeyframeChannel(), m_d, and KisKeyframeChannel::setNode().

◆ allowAsChild()

virtual bool KisNode::allowAsChild ( KisNodeSP ) const

pure virtual

Re-implement this method to add constraints for the subclasses that can be added as children to this node

Returns: false if the given node is not allowed as a child to this node

Implemented in KisMask, KisSelectionBasedLayer, KisCloneLayer, KisGroupLayer, KisPaintLayer, KisShapeLayer, KisReferenceImagesLayer, KisFileLayer, and KisDecorationsWrapperLayer.

◆ at()

KisNodeSP KisNode::at ( quint32 index ) const

Retrieve the child node at the specified index.

Returns: 0 if there is no node at this index.

Definition at line 421 of file kis_node.cpp.

{
    QReadLocker l(&m_d->nodeSubgraphLock);

    if (!m_d->nodes.isEmpty() && index < (quint32)m_d->nodes.size()) {
        return m_d->nodes.at(index);
    }

    return 0;
}

References index(), and m_d.

◆ baseNodeChangedCallback()

void KisNode::baseNodeChangedCallback ( )

overrideprotectedvirtual

This callback is called when some meta state of the base node that can be interesting to the UI has changed. E.g. visibility, lockness, opacity, compositeOp and etc. This signal is forwarded by the KisNode and KisNodeGraphListener to the model in KisLayerBox, so it can update its controls when information changes.

Reimplemented from KisBaseNode.

Definition at line 329 of file kis_node.cpp.

{
    if(m_d->graphListener) {
        m_d->graphListener->nodeChanged(this);
        Q_EMIT sigNodeChangedInternal();
    }
}

References m_d, and sigNodeChangedInternal().

◆ baseNodeCollapsedChangedCallback()

void KisNode::baseNodeCollapsedChangedCallback ( )

overrideprotectedvirtual

This callback is called when collapsed state of the base node has changed. This signal is forwarded by the KisNode and KisNodeGraphListener to the model in KisLayerBox, so it can update its controls when information changes.

Reimplemented from KisBaseNode.

Definition at line 344 of file kis_node.cpp.

{
    if(m_d->graphListener) {
        m_d->graphListener->nodeCollapsedChanged(this);
    }
}

References m_d.

◆ baseNodeInvalidateAllFramesCallback()

void KisNode::baseNodeInvalidateAllFramesCallback ( )

overrideprotectedvirtual

Reimplemented from KisBaseNode.

Definition at line 337 of file kis_node.cpp.

{
    if(m_d->graphListener) {
        m_d->graphListener->invalidateAllFrames();
    }
}

References m_d.

◆ busyProgressIndicator()

KisBusyProgressIndicator * KisNode::busyProgressIndicator ( ) const

◆ changeRect()

QRect KisNode::changeRect	(	const QRect &	rect,
		PositionToFilthy	pos = N_FILTHY ) const

protectedvirtual

Returns: internal changeRect() of the node. Do not mix with

See also: projectionPlane()

Some filters will cause a change of pixels those are outside a requested rect. E.g. we change a rect of 2x2, then we want to apply a convolution filter with kernel 4x4 (changeRect is (2+2*3)x(2+2*3)=8x8) to that area. The rect that should be updated on the layer will be exactly 8x8. More than that the needRect for that update will be 14x14. See needRect.

Reimplemented in KisFilterMask, KisLayer, KisMask, KisSelectionMask, KisTransformMask, and KisTransparencyMask.

Definition at line 224 of file kis_node.cpp.

{
    Q_UNUSED(pos);
    return rect;
}

◆ childCount()

quint32 KisNode::childCount ( ) const

Returns how many direct child nodes this node has (not recursive).

Definition at line 414 of file kis_node.cpp.

{
    QReadLocker l(&m_d->nodeSubgraphLock);
    return m_d->nodes.size();
}

References m_d.

◆ childNodeChanged()

void KisNode::childNodeChanged ( KisNodeSP changedChildNode )

protectedvirtual

Called each time direct child nodes are added or removed under this node as parent. This does not track changes inside the child nodes or the child nodes' properties.

Reimplemented in KisLayer.

Definition at line 236 of file kis_node.cpp.

237{

238}

◆ childNodes()

QList< KisNodeSP > KisNode::childNodes	(	const QStringList &	nodeTypes,
		const KoProperties &	properties ) const

Return a list of child nodes of the current node that conform to the specified constraints. There are no guarantees about the order of the nodes in the list. The function is not recursive.

Parameters

nodeTypes.	if not empty, only nodes that inherit the classnames in this stringlist will be returned.
properties.	if not empty, only nodes for which KisNodeBase::check(properties) returns true will be returned.

Definition at line 439 of file kis_node.cpp.

{
    QReadLocker l(&m_d->nodeSubgraphLock);

    QList<KisNodeSP> nodes;

    KisSafeReadNodeList::const_iterator iter;
    FOREACH_SAFE(iter, m_d->nodes) {
        if (*iter) {
            if (properties.isEmpty() || (*iter)->check(properties)) {
                bool rightType = true;

                if(!nodeTypes.isEmpty()) {
                    rightType = false;
                    Q_FOREACH (const QString &nodeType,  nodeTypes) {
                        if ((*iter)->inherits(nodeType.toLatin1())) {
                            rightType = true;
                            break;
                        }
                    }
                }
                if (rightType) {
                    nodes.append(*iter);
                }
            }
        }
    }
    return nodes;
}

References FOREACH_SAFE, KoProperties::isEmpty(), m_d, nodes, nodeType(), and KisBaseNode::properties.

◆ clone()

virtual KisNodeSP KisNode::clone ( ) const

pure virtual

Implemented in KisGeneratorLayer, KisAdjustmentLayer, KisCloneLayer, KisFilterMask, KisGroupLayer, KisPaintLayer, KisSelectionMask, KisTransformMask, KisTransparencyMask, KisColorizeMask, KisShapeLayer, KisReferenceImagesLayer, KisFileLayer, and KisDecorationsWrapperLayer.

◆ createNodeProgressProxy()

void KisNode::createNodeProgressProxy ( )

private

Create a node progress proxy for this node. You need to create a progress proxy only if the node is going to appear in the layerbox, and it needs to be created before the layer box is made aware of the proxy.

Definition at line 566 of file kis_node.cpp.

{
    if (!m_d->nodeProgressProxy) {
        m_d->nodeProgressProxy = new KisNodeProgressProxy(this);
        m_d->busyProgressIndicator = new KisBusyProgressIndicator(m_d->nodeProgressProxy);

        m_d->nodeProgressProxy->moveToThread(this->thread());
        m_d->busyProgressIndicator->moveToThread(this->thread());
    }
}

References m_d.

◆ findSymmetricClone()

const KisNode * KisNode::findSymmetricClone	(	const KisNode *	srcRoot,
		const KisNode *	dstRoot,
		const KisNode *	srcTarget )

◆ firstChild()

KisNodeSP KisNode::firstChild ( ) const

Returns the first child node of this node, or 0 if there are no child nodes.

Definition at line 361 of file kis_node.cpp.

{
    QReadLocker l(&m_d->nodeSubgraphLock);
    return !m_d->nodes.isEmpty() ? m_d->nodes.first() : 0;
}

References m_d.

◆ getLodCapableDevices()

KisPaintDeviceList KisNode::getLodCapableDevices ( ) const

virtual

Reimplemented in KisPaintLayer, KisTransformMask, and KisColorizeMask.

Definition at line 682 of file kis_node.cpp.

{
    KisPaintDeviceList list;

    KisPaintDeviceSP device = paintDevice();
    if (device) {
        list << device;
    }

    KisPaintDeviceSP originalDevice = original();
    if (originalDevice && originalDevice != device) {
        list << originalDevice;
    }

    list << projectionPlane()->getLodCapableDevices();

    return list;
}

References KisBaseNode::original(), KisBaseNode::paintDevice(), and projectionPlane().

◆ graphListener()

KisNodeGraphListener * KisNode::graphListener ( ) const

Returns: the graph listener this node belongs to. 0 if the node does not belong to a graph listener.

◆ graphSequenceNumber()

int KisNode::graphSequenceNumber ( ) const

Returns: the graph sequence number calculated by the associated graph listener. You can use it for checking for changes in the graph.

Definition at line 279 of file kis_node.cpp.

{
    return m_d->graphListener ? m_d->graphListener->graphSequenceNumber() : -1;
}

References m_d.

◆ handleKeyframeChannelFrameAboutToBeRemoved()

void KisNode::handleKeyframeChannelFrameAboutToBeRemoved	(	const KisKeyframeChannel *	channel,
		int	time )

Definition at line 657 of file kis_node.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_NOOP(!m_d->frameRemovalUpdateRecipe);
    m_d->frameRemovalUpdateRecipe = handleKeyframeChannelFrameAboutToBeRemovedImpl(channel, time);
}

References handleKeyframeChannelFrameAboutToBeRemovedImpl(), KIS_SAFE_ASSERT_RECOVER_NOOP, and m_d.

◆ handleKeyframeChannelFrameAboutToBeRemovedImpl()

KisFrameChangeUpdateRecipe KisNode::handleKeyframeChannelFrameAboutToBeRemovedImpl	(	const KisKeyframeChannel *	channel,
		int	time )

protectedvirtual

Reimplemented in KisPaintLayer.

Definition at line 652 of file kis_node.cpp.

{
    return m_d->handleKeyframeChannelUpdateImpl(channel, time);
}

References m_d.

◆ handleKeyframeChannelFrameAdded()

void KisNode::handleKeyframeChannelFrameAdded	(	const KisKeyframeChannel *	channel,
		int	time )

virtual

Reimplemented in KisPaintLayer.

Definition at line 647 of file kis_node.cpp.

{
    m_d->handleKeyframeChannelUpdateImpl(channel, time).notify(this);
}

References m_d.

◆ handleKeyframeChannelFrameChange()

void KisNode::handleKeyframeChannelFrameChange	(	const KisKeyframeChannel *	channel,
		int	time )

virtual

Reimplemented in KisPaintLayer.

Definition at line 642 of file kis_node.cpp.

{
    m_d->handleKeyframeChannelUpdateImpl(channel, time).notify(this);
}

References m_d.

◆ handleKeyframeChannelFrameHasBeenRemoved()

void KisNode::handleKeyframeChannelFrameHasBeenRemoved	(	const KisKeyframeChannel *	channel,
		int	time )

Definition at line 663 of file kis_node.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_RETURN(m_d->frameRemovalUpdateRecipe);
    m_d->frameRemovalUpdateRecipe->notify(this);
    m_d->frameRemovalUpdateRecipe = std::nullopt;
}

References KIS_SAFE_ASSERT_RECOVER_RETURN, and m_d.

◆ handleKeyframeChannelUpdateImpl()

KisFrameChangeUpdateRecipe KisNode::handleKeyframeChannelUpdateImpl	(	const KisKeyframeChannel *	channel,
		int	time )

◆ index()

int KisNode::index ( const KisNodeSP node ) const

Retrieve the index of the specified child node.

Returns: -1 if the specified node is not a child node of this node.

Definition at line 432 of file kis_node.cpp.

{
    QReadLocker l(&m_d->nodeSubgraphLock);

    return m_d->nodes.indexOf(node);
}

References m_d.

◆ invalidateFrames()

void KisNode::invalidateFrames	(	const KisTimeSpan &	range,
		const QRect &	rect )

Informs animation cache that the frames in the given range are no longer valid and need to be recached.

Parameters

range frames to invalidate

Definition at line 616 of file kis_node.cpp.

{
    if(m_d->graphListener) {
        m_d->graphListener->invalidateFrames(range, rect);
    }
}

References m_d.

◆ lastChild()

KisNodeSP KisNode::lastChild ( ) const

Returns the last child node of this node, or 0 if there are no child nodes.

Definition at line 367 of file kis_node.cpp.

{
    QReadLocker l(&m_d->nodeSubgraphLock);
    return !m_d->nodes.isEmpty() ? m_d->nodes.last() : 0;
}

References m_d.

◆ needRect()

QRect KisNode::needRect	(	const QRect &	rect,
		PositionToFilthy	pos = N_FILTHY ) const

protectedvirtual

Returns: internal needRect() of the node. Do not mix with

See also: projectionPlane()

Some filters need pixels outside the current processing rect to compute the new value (for instance, convolution filters) See changeRect See accessRect

Reimplemented in KisAdjustmentLayer, KisFilterMask, KisMask, KisSelectionBasedLayer, KisSelectionMask, KisTransformMask, and KisTransparencyMask.

Definition at line 218 of file kis_node.cpp.

{
    Q_UNUSED(pos);
    return rect;
}

◆ nextChildImpl()

KisNodeSP KisNode::nextChildImpl ( KisNodeSP child )

private

See a comment in KisNode::prevChildImpl()

Definition at line 391 of file kis_node.cpp.

{
    QReadLocker l(&m_d->nodeSubgraphLock);

    int i = m_d->nodes.indexOf(child) + 1;
    return i > 0 && i < m_d->nodes.size() ? m_d->nodes.at(i) : 0;
}

References m_d.

◆ nextSibling()

KisNodeSP KisNode::nextSibling ( ) const

Returns the next sibling of this node in the parent's list. This is the node below this node in the composition stack. 0 is returned if this child has no more next siblings (== lastChild())

Definition at line 408 of file kis_node.cpp.

{
    KisNodeSP parentNode = parent();
    return parentNode ? parentNode->nextChildImpl(const_cast<KisNode*>(this)) : 0;
}

References nextChildImpl(), and parent.

◆ nodeProgressProxy()

KisNodeProgressProxy * KisNode::nodeProgressProxy ( ) const

Returns: the node progress proxy used by this node, if this node has no progress proxy, it will return the proxy of its parent, if the parent has no progress proxy it will return 0

◆ notifyParentVisibilityChanged()

void KisNode::notifyParentVisibilityChanged ( bool value )

overrideprotectedvirtual

Reimplemented from KisBaseNode.

Definition at line 318 of file kis_node.cpp.

{
    QReadLocker l(&m_d->nodeSubgraphLock);

    KisSafeReadNodeList::const_iterator iter;
    FOREACH_SAFE(iter, m_d->nodes) {
        KisNodeSP child = (*iter);
        child->notifyParentVisibilityChanged(value);
    }
}

References FOREACH_SAFE, m_d, notifyParentVisibilityChanged(), and value().

◆ parent()

KisNodeSP KisNode::parent ( ) const

Returns the parent node of this node. This is 0 only for a root node; otherwise this will be an actual Node

◆ parentCallback()

KisBaseNodeSP KisNode::parentCallback ( ) const

overrideprotectedvirtual

FIXME: This method is a workaround for getting parent node on a level of KisBaseNode. In fact, KisBaseNode should inherit KisNode (in terms of current Krita) to be able to traverse the node stack

Reimplemented from KisBaseNode.

Definition at line 313 of file kis_node.cpp.

{
    return parent();
}

References parent.

◆ prevChildImpl()

KisNodeSP KisNode::prevChildImpl ( KisNodeSP child )

private

Warning: mind locking policy!

The graph locks must be always taken in descending order. That is if you want to (or it implicitly happens that you) take a lock of a parent and a chil, you must first take the lock of a parent, and only after that ask a child to do the same. Otherwise you'll get a deadlock.

Definition at line 373 of file kis_node.cpp.

{
    QReadLocker l(&m_d->nodeSubgraphLock);

    int i = m_d->nodes.indexOf(child) - 1;
    return i >= 0 ? m_d->nodes.at(i) : 0;
}

References m_d.

◆ prevSibling()

KisNodeSP KisNode::prevSibling ( ) const

Returns the previous sibling of this node in the parent's list. This is the node above this node in the composition stack. 0 is returned if this child has no more previous siblings (== firstChild())

Definition at line 402 of file kis_node.cpp.

{
    KisNodeSP parentNode = parent();
    return parentNode ? parentNode->prevChildImpl(const_cast<KisNode*>(this)) : 0;
}

References parent, and prevChildImpl().

◆ Private()

KisNode::Private ( KisNode * node )

inline

Definition at line 78 of file kis_node.cpp.

            : graphListener(0)
            , nodeProgressProxy(0)
            , busyProgressIndicator(0)
            , projectionLeaf(new KisProjectionLeaf(node))
    {
    }

◆ processDuplicatedClones()

void KisNode::processDuplicatedClones	(	const KisNode *	srcDuplicationRoot,
		const KisNode *	dstDuplicationRoot,
		KisNode *	node )

◆ projectionLeaf()

virtual KisProjectionLeafSP KisNode::projectionLeaf ( ) const

virtual

The rendering of the image may not always happen in the order of the main graph. Pass-through nodes make some subgraphs linear, so it the order of rendering change. projectionLeaf() is a special interface of KisNode that represents "a graph for projection rendering". Therefore the nodes in projectionLeaf() graph may have a different order the main one.

◆ projectionPlane()

KisAbstractProjectionPlaneSP KisNode::projectionPlane ( ) const

virtual

Returns: a pointer to a KisAbstractProjectionPlane interface of the node. This interface is used by the image merging framework to get information and to blending for the layer.

Please note the difference between need/change/accessRect and the projectionPlane() interface. The former one gives information about internal composition of the layer, and the latter one about the total composition, including layer styles, pass-through blending and etc.

Reimplemented in KisLayer, and KisMask.

Definition at line 240 of file kis_node.cpp.

{
    KIS_ASSERT_RECOVER_NOOP(0 && "KisNode::projectionPlane() is not defined!");
    static KisAbstractProjectionPlaneSP plane =
        toQShared(new KisDumbProjectionPlane());

    return plane;
}

References KIS_ASSERT_RECOVER_NOOP, and toQShared().

◆ remove() [1/2]

bool KisNode::remove ( KisNodeSP node )

private

Removes the node from the child nodes.

Returns: false if there's no such node in this node.

Definition at line 541 of file kis_node.cpp.

{
    return node->parent().data() == this ? remove(index(node)) : false;
}

References KisWeakSharedPtr< T >::data(), index(), parent, and remove().

◆ remove() [2/2]

bool KisNode::remove ( quint32 index )

private

Removes the node at the specified index from the child nodes.

Returns: false if there is no node at this index

Definition at line 510 of file kis_node.cpp.

{
    if (index < childCount()) {
        KisNodeSP removedNode = at(index);

        if (m_d->graphListener) {
            m_d->graphListener->aboutToRemoveANode(this, index);
        }

        removedNode->setImage(0);

        {
            QWriteLocker l(&m_d->nodeSubgraphLock);

            removedNode->setGraphListener(0);

            removedNode->setParent(0);   // after calling aboutToRemoveANode or then the model get broken according to TT's modeltest
            m_d->nodes.removeAt(index);
        }

        if (m_d->graphListener) {
            m_d->graphListener->nodeHasBeenRemoved(this, index);
        }

        childNodeChanged(removedNode);

        return true;
    }
    return false;
}

References at(), childCount(), childNodeChanged(), index(), m_d, setGraphListener(), setImage(), and setParent().

◆ requestTimeSwitch()

void KisNode::requestTimeSwitch ( int time )

Informs that the current world time should be changed. Might be caused by e.g. undo operation

Definition at line 670 of file kis_node.cpp.

{
    if(m_d->graphListener) {
        m_d->graphListener->requestTimeSwitch(time);
    }
}

References m_d.

◆ setDirty() [1/4]

void KisNode::setDirty ( )

virtual

Set the entire node extent dirty; this percolates up to parent nodes all the way to the root node. By default this is the empty rect (through KisBaseNode::extent())

Reimplemented in KisGeneratorLayer, and KisSelectionBasedLayer.

Definition at line 577 of file kis_node.cpp.

{
    setDirty(extent());
}

References KisBaseNode::extent(), and setDirty().

◆ setDirty() [2/4]

void KisNode::setDirty ( const KisRegion & region )

Add the given region to the set of dirty rects for this node; this percolates up to parent nodes all the way to the root node, if propagate is true;

Definition at line 589 of file kis_node.cpp.

{
    setDirty(region.rects());
}

References KisRegion::rects(), and setDirty().

◆ setDirty() [3/4]

void KisNode::setDirty ( const QRect & rect )

Add the given rect to the set of dirty rects for this node; this percolates up to parent nodes all the way to the root node.

Definition at line 594 of file kis_node.cpp.

{
    setDirty(QVector<QRect>({rect}));
}

References setDirty().

◆ setDirty() [4/4]

void KisNode::setDirty ( const QVector< QRect > & rects )

virtual

Add the given rects to the set of dirty rects for this node; this percolates up to parent nodes all the way to the root node.

Reimplemented in KisGeneratorLayer, and KisSelectionMask.

Definition at line 582 of file kis_node.cpp.

{
    if(m_d->graphListener) {
        m_d->graphListener->requestProjectionUpdate(this, rects, KisProjectionUpdateFlag::None);
    }
}

References m_d, and None.

◆ setDirtyDontResetAnimationCache() [1/3]

void KisNode::setDirtyDontResetAnimationCache ( )

Convenience override of multirect version of setDirtyDontResetAnimationCache()

See also: setDirtyDontResetAnimationCache(const QVector<QRect> &rects)

Definition at line 599 of file kis_node.cpp.

{
    setDirtyDontResetAnimationCache(QVector<QRect>({extent()}));
}

References KisBaseNode::extent(), and setDirtyDontResetAnimationCache().

◆ setDirtyDontResetAnimationCache() [2/3]

void KisNode::setDirtyDontResetAnimationCache ( const QRect & rect )

Convenience override of multirect version of setDirtyDontResetAnimationCache()

See also: setDirtyDontResetAnimationCache(const QVector<QRect> &rects)

Definition at line 604 of file kis_node.cpp.

{
    setDirtyDontResetAnimationCache(QVector<QRect>({rect}));
}

References setDirtyDontResetAnimationCache().

◆ setDirtyDontResetAnimationCache() [3/3]

void KisNode::setDirtyDontResetAnimationCache ( const QVector< QRect > & rects )

setDirtyDontResetAnimationCache does almost the same thing as usual setDirty() call, but doesn't reset the animation cache (since onion skins are not used when rendering animation.

Definition at line 609 of file kis_node.cpp.

{
    if(m_d->graphListener) {
        m_d->graphListener->requestProjectionUpdate(this, rects, KisProjectionUpdateFlag::DontInvalidateFrames);
    }
}

References DontInvalidateFrames, and m_d.

◆ setGraphListener()

void KisNode::setGraphListener ( KisNodeGraphListener * graphListener )

Set the graph listener for this node. The graphlistener will be informed before and after the list of child nodes has changed.

Definition at line 289 of file kis_node.cpp.

{
    m_d->graphListener = graphListener;

    QReadLocker l(&m_d->nodeSubgraphLock);
    KisSafeReadNodeList::const_iterator iter;
    FOREACH_SAFE(iter, m_d->nodes) {
        KisNodeSP child = (*iter);
        child->setGraphListener(graphListener);
    }
}

References FOREACH_SAFE, graphListener, m_d, and setGraphListener().

◆ setImage()

void KisNode::setImage ( KisImageWSP newImage )

overridevirtual

Reimplemented from KisBaseNode.

Reimplemented in KisPaintLayer, KisSelectionBasedLayer, KisTransformMask, and KisShapeLayer.

Definition at line 254 of file kis_node.cpp.

{
    KisBaseNode::setImage(newImage);

    KisNodeSP node = firstChild();
    while (node) {
        KisLayerUtils::recursiveApplyNodes(node,
                                           [newImage] (KisNodeSP node) {
                                               node->setImage(newImage);
                                           });

        node = node->nextSibling();
    }
}

References firstChild(), nextSibling(), KisLayerUtils::recursiveApplyNodes(), KisBaseNode::setImage(), and setImage().

◆ setParent()

void KisNode::setParent ( KisNodeWSP parent )

private

Set the parent of this node.

Definition at line 301 of file kis_node.cpp.

{
    QWriteLocker l(&m_d->nodeSubgraphLock);
    m_d->parent = parent;
}

References m_d, and parent.

◆ sigNodeChangedInternal

void KisNode::sigNodeChangedInternal ( )

signal

Don't use this signal anywhere other than KisNodeShape. It's a hack.

◆ syncLodCache()

void KisNode::syncLodCache ( )

virtual

Synchronizes LoD caches of the node with the current state of it. The current level of detail is fetched from the image pointed by default bounds object

Reimplemented in KisCloneLayer, and KisTransformMask.

Definition at line 677 of file kis_node.cpp.

{
    // noop. everything is done by getLodCapableDevices()
}

Friends And Related Symbol Documentation

◆ KisFilterMaskTest

friend class KisFilterMaskTest

friend

Definition at line 48 of file kis_node.h.

◆ KisLayer

friend class KisLayer

friend

Definition at line 383 of file kis_node.h.

◆ KisNodeFacade

friend class KisNodeFacade

friend

Definition at line 381 of file kis_node.h.

◆ KisNodeTest

friend class KisNodeTest

friend

Definition at line 382 of file kis_node.h.

Member Data Documentation

◆ busyProgressIndicator

KisBusyProgressIndicator * KisNode::busyProgressIndicator

Definition at line 90 of file kis_node.cpp.

◆ frameRemovalUpdateRecipe

std::optional<KisFrameChangeUpdateRecipe> KisNode::frameRemovalUpdateRecipe

Definition at line 102 of file kis_node.cpp.

◆ graphListener

KisNodeGraphListener * KisNode::graphListener

Definition at line 87 of file kis_node.cpp.

◆ m_d

Private* const KisNode::m_d

private

Definition at line 415 of file kis_node.h.

◆ nodeProgressProxy

KisNodeProgressProxy * KisNode::nodeProgressProxy

Definition at line 89 of file kis_node.cpp.

◆ nodes

KisSafeReadNodeList KisNode::nodes

Definition at line 88 of file kis_node.cpp.

◆ nodeSubgraphLock

QReadWriteLock KisNode::nodeSubgraphLock

Definition at line 91 of file kis_node.cpp.

◆ parent

KisNodeSP KisNode::parent

Definition at line 86 of file kis_node.cpp.

◆ projectionLeaf

KisProjectionLeafSP KisNode::projectionLeaf

Definition at line 93 of file kis_node.cpp.

The documentation for this class was generated from the following files:

libs/image/kis_node.cpp
libs/image/kis_node.h

Public Types

Signals

Public Member Functions

Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ PositionToFilthy

Constructor & Destructor Documentation

◆ KisNode() [1/2]

◆ KisNode() [2/2]

◆ ~KisNode()

Member Function Documentation

◆ accept() [1/2]

◆ accept() [2/2]

◆ accessRect()

◆ add()

◆ addKeyframeChannel()

◆ allowAsChild()

◆ at()

◆ baseNodeChangedCallback()

◆ baseNodeCollapsedChangedCallback()

◆ baseNodeInvalidateAllFramesCallback()

◆ busyProgressIndicator()

◆ changeRect()

◆ childCount()

◆ childNodeChanged()

◆ childNodes()

◆ clone()

◆ createNodeProgressProxy()

◆ findSymmetricClone()

◆ firstChild()

◆ getLodCapableDevices()

◆ graphListener()

◆ graphSequenceNumber()

◆ handleKeyframeChannelFrameAboutToBeRemoved()

◆ handleKeyframeChannelFrameAboutToBeRemovedImpl()

◆ handleKeyframeChannelFrameAdded()

◆ handleKeyframeChannelFrameChange()

◆ handleKeyframeChannelFrameHasBeenRemoved()

◆ handleKeyframeChannelUpdateImpl()

◆ index()

◆ invalidateFrames()

◆ lastChild()

◆ needRect()

◆ nextChildImpl()

◆ nextSibling()

◆ nodeProgressProxy()

◆ notifyParentVisibilityChanged()

◆ parent()

◆ parentCallback()

◆ prevChildImpl()

◆ prevSibling()

◆ Private()

◆ processDuplicatedClones()

◆ projectionLeaf()

◆ projectionPlane()

◆ remove() [1/2]

◆ remove() [2/2]

◆ requestTimeSwitch()

◆ setDirty() [1/4]

◆ setDirty() [2/4]

◆ setDirty() [3/4]

◆ setDirty() [4/4]

◆ setDirtyDontResetAnimationCache() [1/3]

◆ setDirtyDontResetAnimationCache() [2/3]

◆ setDirtyDontResetAnimationCache() [3/3]

◆ setGraphListener()

◆ setImage()

◆ setParent()

◆ sigNodeChangedInternal

◆ syncLodCache()

Friends And Related Symbol Documentation

◆ KisFilterMaskTest

◆ KisLayer

◆ KisNodeFacade

◆ KisNodeTest
