#include <kis_mask.h>

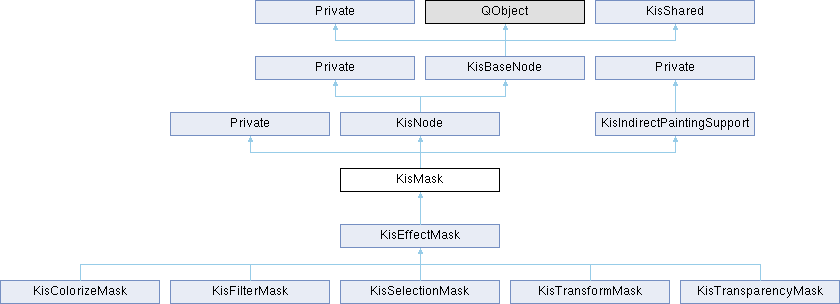

Inheritance diagram for KisMask:

Public Member Functions
bool	allowAsChild (KisNodeSP node) const override

QRect	changeRect (const QRect &rect, PositionToFilthy pos=N_FILTHY) const override

const KoColorSpace *	colorSpace () const override

const KoCompositeOp *	compositeOp () const override

QImage	createThumbnail (qint32 w, qint32 h, Qt::AspectRatioMode aspectRatioMode=Qt::IgnoreAspectRatio) override

QRect	exactBounds () const override

QRect	extent () const override

void	initSelection (KisLayerSP parentLayer)
	initSelection initializes an empty selection

void	initSelection (KisPaintDeviceSP copyFromDevice, KisLayerSP parentLayer)
	initSelection initializes the selection for the mask from the given paint device.

void	initSelection (KisSelectionSP copyFrom, KisLayerSP parentLayer)
	initSelection initializes the selection for the mask from the given selection's projection.

void	initSelectionImpl (KisSelectionSP copyFrom, KisLayerSP parentLayer, KisPaintDeviceSP copyFromDevice, KisImageWSP image)

	KisMask (const KisMask &rhs)

	KisMask (KisImageWSP image, const QString &name)

QRect	needRect (const QRect &rect, PositionToFilthy pos=N_FILTHY) const override

virtual QRect	nonDependentExtent () const

KisPaintDeviceSP	original () const override

KisPaintDeviceSP	paintDevice () const override

	Private (KisMask *_q)

KisPaintDeviceSP	projection () const override

KisAbstractProjectionPlaneSP	projectionPlane () const override

void	select (const QRect &rc, quint8 selectedness=MAX_SELECTED)

KisSelectionSP	selection () const

void	setImage (KisImageWSP image) override

void	setSelection (KisSelectionSP selection)

void	setX (qint32 x) override

void	setY (qint32 y) override

bool	supportsLodPainting () const override

void	testingInitSelection (const QRect &rect, KisLayerSP parentLayer)

int	thumbnailSeqNo () const override

qint32	x () const override

qint32	y () const override

	~KisMask () override

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisNode
bool	accept (KisNodeVisitor &v) override

void	accept (KisProcessingVisitor &visitor, KisUndoAdapter *undoAdapter) override

KisNodeSP	at (quint32 index) const

KisBusyProgressIndicator *	busyProgressIndicator () const

quint32	childCount () const

QList< KisNodeSP >	childNodes (const QStringList &nodeTypes, const KoProperties &properties) const

virtual KisNodeSP	clone () const =0

const KisNode *	findSymmetricClone (const KisNode srcRoot, const KisNode dstRoot, const KisNode *srcTarget)

KisNodeSP	firstChild () const

virtual KisPaintDeviceList	getLodCapableDevices () const

KisNodeGraphListener *	graphListener () const

int	graphSequenceNumber () const

void	handleKeyframeChannelFrameAboutToBeRemoved (const KisKeyframeChannel *channel, int time)

virtual void	handleKeyframeChannelFrameAdded (const KisKeyframeChannel *channel, int time)

virtual void	handleKeyframeChannelFrameChange (const KisKeyframeChannel *channel, int time)

void	handleKeyframeChannelFrameHasBeenRemoved (const KisKeyframeChannel *channel, int time)

KisFrameChangeUpdateRecipe	handleKeyframeChannelUpdateImpl (const KisKeyframeChannel *channel, int time)

int	index (const KisNodeSP node) const

void	invalidateFrames (const KisTimeSpan &range, const QRect &rect)

	KisNode (const KisNode &rhs)

	KisNode (KisImageWSP image)

KisNodeSP	lastChild () const

KisNodeSP	nextSibling () const

KisNodeProgressProxy *	nodeProgressProxy () const

KisNodeSP	parent () const

KisNodeSP	prevSibling () const

	Private (KisNode *node)

void	processDuplicatedClones (const KisNode srcDuplicationRoot, const KisNode dstDuplicationRoot, KisNode *node)

virtual KisProjectionLeafSP	projectionLeaf () const

void	requestTimeSwitch (int time)

virtual void	setDirty ()

void	setDirty (const KisRegion &region)

void	setDirty (const QRect &rect)

virtual void	setDirty (const QVector< QRect > &rects)

void	setDirtyDontResetAnimationCache ()

void	setDirtyDontResetAnimationCache (const QRect &rect)

void	setDirtyDontResetAnimationCache (const QVector< QRect > &rects)
	setDirtyDontResetAnimationCache does almost the same thing as usual setDirty() call, but doesn't reset the animation cache (since onion skins are not used when rendering animation.

void	setGraphListener (KisNodeGraphListener *graphListener)

void	setImage (KisImageWSP newImage) override

virtual void	syncLodCache ()

	~KisNode () override

Public Member Functions inherited from KisBaseNode
bool	belongsToIsolatedGroup () const

bool	check (const KoProperties &properties) const

bool	collapsed () const

int	colorLabelIndex () const

virtual KisPaintDeviceSP	colorSampleSourceDevice () const

const QString &	compositeOpId () const

virtual QImage	createThumbnailForFrame (qint32 w, qint32 h, int time, Qt::AspectRatioMode aspectRatioMode=Qt::IgnoreAspectRatio)

void	enableAnimation ()

KisKeyframeChannel *	getKeyframeChannel (const QString &id) const

KisKeyframeChannel *	getKeyframeChannel (const QString &id, bool create)

bool	hasEditablePaintDevice () const

virtual QIcon	icon () const

KisImageWSP	image () const

bool	isAnimated () const

bool	isEditable (bool checkVisibility=true) const

virtual bool	isFakeNode () const

bool	isIsolatedRoot () const

bool	isPinnedToTimeline () const

QMap< QString, KisKeyframeChannel * >	keyframeChannels () const

	KisBaseNode (const KisBaseNode &rhs)

	KisBaseNode (KisImageWSP image)

void	mergeNodeProperties (const KoProperties &properties)

QString	name () const

const KoProperties &	nodeProperties () const

quint8	opacity () const

quint8	percentOpacity () const

	Private (const Private &rhs)

	Private (KisImageWSP p_image)

virtual PropertyList	sectionModelProperties () const

void	setCollapsed (bool collapsed)

void	setColorLabelIndex (int index)

void	setCompositeOpId (const QString &compositeOpId)

void	setName (const QString &name)

void	setNodeProperty (const QString &name, const QVariant &value)

void	setOpacity (quint8 val)

void	setPercentOpacity (quint8 val)

void	setPinnedToTimeline (bool pinned)

virtual void	setSectionModelProperties (const PropertyList &properties)

virtual void	setUserLocked (bool l)

void	setUuid (const QUuid &id)

virtual void	setVisible (bool visible, bool loading=false)

bool	supportsLodMoves () const

virtual void	updateSettings ()

bool	userLocked () const

QUuid	uuid () const

virtual bool	visible (bool recursive=false) const

	~KisBaseNode () override

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Public Member Functions inherited from KisIndirectPaintingSupport
bool	hasTemporaryTarget () const

	KisIndirectPaintingSupport ()

void	mergeToLayer (KisNodeSP layer, KUndo2Command *parentCommand, const KUndo2MagicString &transactionText, int timedID)

virtual void	mergeToLayerThreaded (KisNodeSP layer, KUndo2Command parentCommand, const KUndo2MagicString &transactionText, int timedID, QVector< KisRunnableStrokeJobData > *jobs)

virtual void	setCurrentColor (const KoColor &color)

void	setTemporaryChannelFlags (const QBitArray &channelFlags)

void	setTemporaryCompositeOp (const QString &id)

void	setTemporaryOpacity (qreal o)

void	setTemporarySelection (KisSelectionSP selection)

void	setTemporaryTarget (KisPaintDeviceSP t)

void	setupTemporaryPainter (KisPainter *painter) const

virtual bool	supportsNonIndirectPainting () const

KisPaintDeviceSP	temporaryTarget () const

FinalMergeSuspenderSP	trySuspendFinalMerge ()

virtual	~KisIndirectPaintingSupport ()

Public Attributes
QScopedPointer< QPoint >	deferredSelectionOffset

KisCachedPaintDevice	paintDeviceCache

KisAbstractProjectionPlaneSP	projectionPlane

KisMask *	q

KisSafeSelectionNodeProjectionStoreSP	safeProjection

KisSelectionSP	selection

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Public Attributes inherited from KisNode
KisBusyProgressIndicator *	busyProgressIndicator

std::optional< KisFrameChangeUpdateRecipe >	frameRemovalUpdateRecipe

KisNodeGraphListener *	graphListener

KisNodeProgressProxy *	nodeProgressProxy

KisSafeReadNodeList	nodes

QReadWriteLock	nodeSubgraphLock

KisNodeWSP	parent

KisProjectionLeafSP	projectionLeaf

Public Attributes inherited from KisBaseNode
bool	animated {false}

bool	collapsed {false}

QString	compositeOp

KisBaseNode::Property	hack_visible

QUuid	id

KisImageWSP	image

QMap< QString, KisKeyframeChannel * >	keyframeChannels

KisAnimatedOpacityProperty	opacityProperty

bool	pinnedToTimeline {false}

KoProperties	properties

bool	supportsLodMoves {false}

Public Attributes inherited from KisIndirectPaintingSupport
QBitArray	channelFlags

QString	compositeOp

qreal	compositeOpacity

bool	finalMergeInProgress = true

QReadWriteLock	lock

KisSelectionSP	selection

KisPaintDeviceSP	temporaryTarget

Protected Member Functions
void	apply (KisPaintDeviceSP projection, const QRect &applyRect, const QRect &needRect, PositionToFilthy maskPos, KisRenderPassFlags flags) const

void	baseNodeChangedCallback () override

virtual QRect	decorateRect (KisPaintDeviceSP &src, KisPaintDeviceSP &dst, const QRect &rc, PositionToFilthy maskPos, KisRenderPassFlags flags) const

virtual void	flattenSelectionProjection (KisSelectionSP selection, const QRect &dirtyRect) const

virtual void	mergeInMaskInternal (KisPaintDeviceSP projection, KisSelectionSP effectiveSelection, const QRect &applyRect, const QRect &preparedNeedRect, PositionToFilthy maskPos, KisRenderPassFlags flags) const

virtual bool	paintsOutsideSelection () const

KisKeyframeChannel *	requestKeyframeChannel (const QString &id) override

bool	supportsKeyframeChannel (const QString &id) override

Protected Member Functions inherited from KisNode
virtual QRect	accessRect (const QRect &rect, PositionToFilthy pos=N_FILTHY) const

void	addKeyframeChannel (KisKeyframeChannel *channel) override

void	baseNodeChangedCallback () override

void	baseNodeCollapsedChangedCallback () override

void	baseNodeInvalidateAllFramesCallback () override

virtual void	childNodeChanged (KisNodeSP changedChildNode)

virtual KisFrameChangeUpdateRecipe	handleKeyframeChannelFrameAboutToBeRemovedImpl (const KisKeyframeChannel *channel, int time)

void	notifyParentVisibilityChanged (bool value) override

KisBaseNodeSP	parentCallback () const override

Protected Member Functions inherited from KisBaseNode
void	setSupportsLodMoves (bool value)

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Protected Member Functions inherited from KisIndirectPaintingSupport
void	lockTemporaryTargetForWrite () const

void	mergeToLayerImpl (KisPaintDeviceSP dst, KUndo2Command parentCommand, const KUndo2MagicString &transactionText, int timedID, bool cleanResources, WriteLockerSP sharedWriteLock, QVector< KisRunnableStrokeJobData > *jobs)

void	releaseResources ()

QString	temporaryCompositeOp () const

virtual void	writeMergeData (KisPainter *painter, KisPaintDeviceSP src, const QRect &rc)

Private Attributes
Private *const	m_d

Friends
class	KisMaskProjectionPlane

Additional Inherited Members
Public Types inherited from KisNode
enum	PositionToFilthy { N_ABOVE_FILTHY = 0x08 , N_FILTHY_PROJECTION = 0x20 , N_FILTHY = 0x40 , N_BELOW_FILTHY = 0x80 }

Public Types inherited from KisBaseNode
typedef QList< Property >	PropertyList

Public Types inherited from KisIndirectPaintingSupport
using	FinalMergeSuspenderSP = QSharedPointer<FinalMergeSuspender>

Signals inherited from KisNode
void	sigNodeChangedInternal ()

Signals inherited from KisBaseNode
void	keyframeChannelAdded (KisKeyframeChannel *channel)

void	opacityChanged (quint8 value)

Protected Types inherited from KisIndirectPaintingSupport
using	WriteLockerSP = QSharedPointer<WriteLocker>

Detailed Description

KisMask is the base class for all single channel mask-like paint devices in Krita. Masks can be rendered in different ways at different moments during the rendering stack. Masks are "owned" by layers (of any type), and cannot occur by themselves on themselves.

The properties that masks implement are made available through the iterators created on their parent layer, or through iterators that can be created on the paint device that holds the mask data: masks are just paint devices, too.

Masks should show up in the layerbox as sub-layers for the layer they are associated with and be cut/copy-able and draggable to other layers.

Examples of masks are:

filter masks: like the alpha filter mask that is the most common type of mask and is simply known as "mask" in the gui. Other filter masks use any of krita's filters to filter the pixels of their parent. (In this they differ from adjustment layers, which filter all layers under them in their group stack).
selections: the selection mask is rendered after composition and zooming and determines the selectedness of the pixels of the parent layer.
painterly overlays: painterly overlays indicate a particular property of the pixel in the parent paint device they are associated with, like wetness, height or gravity.

XXX: For now, all masks are 8 bit. Make the channel depth settable.

Definition at line 37 of file kis_mask.cc.

Constructor & Destructor Documentation

◆ KisMask() [1/2]

KisMask::KisMask	(	KisImageWSP	image,
		const QString &	name )

Create a new KisMask.

Definition at line 64 of file kis_mask.cc.

        : KisNode(image)
        , m_d(new Private(this))
{
    setName(name);
    m_d->safeProjection = new KisSafeSelectionNodeProjectionStore();
    m_d->safeProjection->setImage(image);
}

References KisBaseNode::image, m_d, KisBaseNode::name(), and KisBaseNode::setName().

◆ KisMask() [2/2]

KisMask::KisMask ( const KisMask & rhs )

Copy the mask

Definition at line 73 of file kis_mask.cc.

        : KisNode(rhs)
        , KisIndirectPaintingSupport()
        , m_d(new Private(this))
{
    setName(rhs.name());

    m_d->safeProjection = new KisSafeSelectionNodeProjectionStore(*rhs.m_d->safeProjection);

    if (rhs.m_d->selection) {
        m_d->selection = new KisSelection(*rhs.m_d->selection.data());
        m_d->selection->setParentNode(this);

        KisPixelSelectionSP pixelSelection = m_d->selection->pixelSelection();
        if (pixelSelection->framesInterface()) {
            addKeyframeChannel(pixelSelection->keyframeChannel());
            enableAnimation();
        }
    }
}

References KisNode::addKeyframeChannel(), KisBaseNode::enableAnimation(), KisPaintDevice::framesInterface(), KisPaintDevice::keyframeChannel(), m_d, KisBaseNode::name(), and KisBaseNode::setName().

◆ ~KisMask()

KisMask::~KisMask ( )

override

Definition at line 94 of file kis_mask.cc.

{
    if (m_d->selection) {
        m_d->selection->setParentNode(0);
    }

    delete m_d;
}

References m_d.

Member Function Documentation

◆ allowAsChild()

bool KisMask::allowAsChild ( KisNodeSP ) const

overridevirtual

Re-implement this method to add constraints for the subclasses that can be added as children to this node

Returns: false if the given node is not allowed as a child to this node

Implements KisNode.

Definition at line 129 of file kis_mask.cc.

{
    Q_UNUSED(node);
    return false;
}

◆ apply()

void KisMask::apply	(	KisPaintDeviceSP	projection,
		const QRect &	applyRect,
		const QRect &	needRect,
		PositionToFilthy	maskPos,
		KisRenderPassFlags	flags ) const

protected

Apply the effect the projection using the mask as a selection. Made public in KisEffectMask

Definition at line 289 of file kis_mask.cc.

{
    if (selection()) {

        flattenSelectionProjection(m_d->selection, applyRect);

        KisSelectionSP effectiveSelection = m_d->selection;

        {
            // Access temporary target under the lock held
            KisIndirectPaintingSupport::ReadLocker l(this);

            if (!paintsOutsideSelection()) {
                // extent of m_d->selection should also be accessed under a lock,
                // because it might be being merged in by the temporary target atm
                QRect effectiveExtent = m_d->selection->selectedRect();

                if (hasTemporaryTarget()) {
                    effectiveExtent |= temporaryTarget()->extent();
                }

                if(!effectiveExtent.intersects(applyRect)) {
                    return;
                }
            }

            if (hasTemporaryTarget()) {
                effectiveSelection = m_d->safeProjection->getDeviceLazy(m_d->selection);

                KisPainter::copyAreaOptimized(applyRect.topLeft(),
                                              m_d->selection->pixelSelection(),
                                              effectiveSelection->pixelSelection(), applyRect);

                KisPainter gc(effectiveSelection->pixelSelection());
                setupTemporaryPainter(&gc);
                gc.bitBlt(applyRect.topLeft(), temporaryTarget(), applyRect);
            } else {
                m_d->safeProjection->releaseDevice();
            }

            mergeInMaskInternal(projection, effectiveSelection, applyRect, needRect, maskPos, flags);
        }

    } else {
        mergeInMaskInternal(projection, 0, applyRect, needRect, maskPos, flags);
    }
}

References KisPainter::bitBlt(), KisPainter::copyAreaOptimized(), KisPaintDevice::extent(), flattenSelectionProjection(), KisIndirectPaintingSupport::hasTemporaryTarget(), m_d, mergeInMaskInternal(), needRect(), paintsOutsideSelection(), KisSelection::pixelSelection, projection(), selection, KisIndirectPaintingSupport::setupTemporaryPainter(), and KisIndirectPaintingSupport::temporaryTarget.

◆ baseNodeChangedCallback()

void KisMask::baseNodeChangedCallback ( )

overrideprotectedvirtual

This callback is called when some meta state of the base node that can be interesting to the UI has changed. E.g. visibility, lockness, opacity, compositeOp and etc. This signal is forwarded by the KisNode and KisNodeGraphListener to the model in KisLayerBox, so it can update its controls when information changes.

Reimplemented from KisBaseNode.

Definition at line 532 of file kis_mask.cc.

{
    KisNodeSP up = parent();
    KisLayer *layer = dynamic_cast<KisLayer*>(up.data());
    if (layer) {
        layer->notifyChildMaskChanged();
    }
    KisNode::baseNodeChangedCallback();
}

References KisNode::baseNodeChangedCallback(), KisLayer::notifyChildMaskChanged(), and KisNode::parent.

◆ changeRect()

QRect KisMask::changeRect	(	const QRect &	rect,
		PositionToFilthy	pos = N_FILTHY ) const

overridevirtual

Returns: internal changeRect() of the node. Do not mix with

See also: projectionPlane()

Some filters will cause a change of pixels those are outside a requested rect. E.g. we change a rect of 2x2, then we want to apply a convolution filter with kernel 4x4 (changeRect is (2+2*3)x(2+2*3)=8x8) to that area. The rect that should be updated on the layer will be exactly 8x8. More than that the needRect for that update will be 14x14. See needRect.

Reimplemented from KisNode.

Reimplemented in KisSelectionMask, KisTransformMask, and KisTransparencyMask.

Definition at line 386 of file kis_mask.cc.

{
    return KisMask::needRect(rect, pos);
}

References needRect().

◆ colorSpace()

const KoColorSpace * KisMask::colorSpace ( ) const

overridevirtual

Implements KisBaseNode.

Definition at line 135 of file kis_mask.cc.

{
    KisNodeSP parentNode = parent();
    return parentNode ? parentNode->colorSpace() : 0;
}

References KisBaseNode::colorSpace(), and KisNode::parent.

◆ compositeOp()

const KoCompositeOp * KisMask::compositeOp ( ) const

overridevirtual

Return the composite op associated with this layer.

FIXME: This function duplicates the same function from KisLayer. We can't move it to KisBaseNode as it doesn't know anything about parent() method of KisNode Please think it over...

Implements KisBaseNode.

Definition at line 141 of file kis_mask.cc.

{
    const KoColorSpace *colorSpace = this->colorSpace();
    if (!colorSpace) return 0;

    const KoCompositeOp* op = colorSpace->compositeOp(compositeOpId());
    return op ? op : colorSpace->compositeOp(COMPOSITE_OVER);
}

References colorSpace(), COMPOSITE_OVER, KoColorSpace::compositeOp(), and KisBaseNode::compositeOpId().

◆ createThumbnail()

QImage KisMask::createThumbnail	(	qint32	w,
		qint32	h,
		Qt::AspectRatioMode	aspectRatioMode = Qt::IgnoreAspectRatio )

overridevirtual

Returns: a thumbnail in requested size. The thumbnail is a rgba QImage and may have transparent parts. Returns a fully transparent QImage of the requested size if the current node type cannot generate a thumbnail. If the requested size is too big, return a null QImage.

Reimplemented from KisBaseNode.

Definition at line 472 of file kis_mask.cc.

{
    KisPaintDeviceSP originalDevice =
        selection() ? selection()->projection() : 0;

    return originalDevice ?
           originalDevice->createThumbnail(w, h, aspectRatioMode, 1,
                                           KoColorConversionTransformation::internalRenderingIntent(),
                                           KoColorConversionTransformation::internalConversionFlags()) : QImage();
}

References KisPaintDevice::createThumbnail(), KoColorConversionTransformation::internalConversionFlags(), KoColorConversionTransformation::internalRenderingIntent(), KisSelection::projection(), and selection.

◆ decorateRect()

QRect KisMask::decorateRect	(	KisPaintDeviceSP &	src,
		KisPaintDeviceSP &	dst,
		const QRect &	rc,
		PositionToFilthy	maskPos,
		KisRenderPassFlags	flags ) const

protectedvirtual

Reimplemented in KisFilterMask, KisTransformMask, KisTransparencyMask, and KisColorizeMask.

Definition at line 270 of file kis_mask.cc.

{
    Q_UNUSED(src);
    Q_UNUSED(dst);
    Q_UNUSED(maskPos);
    Q_UNUSED(flags);
    Q_ASSERT_X(0, "KisMask::decorateRect", "Should be overridden by successors");
    return rc;
}

◆ exactBounds()

QRect KisMask::exactBounds ( ) const

overridevirtual

Returns the exact bounds of where the actual data resides in this node.

Reimplemented from KisBaseNode.

Reimplemented in KisSelectionMask, KisTransformMask, and KisTransparencyMask.

Definition at line 411 of file kis_mask.cc.

{
    QRect resultRect;

    if (m_d->selection) {
        resultRect = m_d->selection->selectedExactRect();

        // copy for thread safety!
        KisPaintDeviceSP temporaryTarget = this->temporaryTarget();

        if (temporaryTarget) {
            resultRect |= temporaryTarget->exactBounds();
        }
    } else if (KisNodeSP parent = this->parent()) {
        resultRect = parent->exactBounds();
    }

    return resultRect;
}

References KisBaseNode::exactBounds(), KisPaintDevice::exactBounds(), m_d, KisNode::parent, and KisIndirectPaintingSupport::temporaryTarget.

◆ extent()

QRect KisMask::extent ( ) const

overridevirtual

The extent and bounds of the mask are those of the selection inside

Reimplemented from KisBaseNode.

Reimplemented in KisSelectionMask, KisTransformMask, and KisTransparencyMask.

Definition at line 391 of file kis_mask.cc.

{
    QRect resultRect;

    if (m_d->selection) {
        resultRect = m_d->selection->selectedRect();

        // copy for thread safety!
        KisPaintDeviceSP temporaryTarget = this->temporaryTarget();

        if (temporaryTarget) {
            resultRect |= temporaryTarget->extent();
        }
    } else if (KisNodeSP parent = this->parent()) {
        resultRect = parent->extent();
    }

    return resultRect;
}

References KisBaseNode::extent(), KisPaintDevice::extent(), m_d, KisNode::parent, and KisIndirectPaintingSupport::temporaryTarget.

◆ flattenSelectionProjection()

void KisMask::flattenSelectionProjection	(	KisSelectionSP	selection,
		const QRect &	dirtyRect ) const

protectedvirtual

A special callback for calling selection->updateProjection() during the projection calculation process. Some masks (e.g. selection masks) don't need it, because they do it separately.

Reimplemented in KisSelectionMask.

Definition at line 361 of file kis_mask.cc.

{
    selection->updateProjection(dirtyRect);
}

References selection, and KisSelection::updateProjection().

◆ initSelection() [1/3]

void KisMask::initSelection ( KisLayerSP parentLayer )

initSelection initializes an empty selection

Parameters

parentLayer the parent of this mask; it determines the default bounds of the mask.

Definition at line 167 of file kis_mask.cc.

{
    m_d->initSelectionImpl(0, parentLayer, 0, image());
}

References KisBaseNode::image, and m_d.

◆ initSelection() [2/3]

void KisMask::initSelection	(	KisPaintDeviceSP	copyFromDevice,
		KisLayerSP	parentLayer )

initSelection initializes the selection for the mask from the given paint device.

Parameters

copyFromDevice	the paint device we base the mask on
parentLayer	the parent of this mask; it determines the default bounds of the mask.

Definition at line 162 of file kis_mask.cc.

{
    m_d->initSelectionImpl(0, parentLayer, copyFromDevice, image());
}

References KisBaseNode::image, and m_d.

◆ initSelection() [3/3]

void KisMask::initSelection	(	KisSelectionSP	copyFrom,
		KisLayerSP	parentLayer )

initSelection initializes the selection for the mask from the given selection's projection.

Parameters

copyFrom	the selection we base the mask on
parentLayer	the parent of this mask; it determines the default bounds of the mask.

Definition at line 157 of file kis_mask.cc.

{
    m_d->initSelectionImpl(copyFrom, parentLayer, 0, image());
}

References KisBaseNode::image, and m_d.

◆ initSelectionImpl()

void KisMask::initSelectionImpl	(	KisSelectionSP	copyFrom,
		KisLayerSP	parentLayer,
		KisPaintDeviceSP	copyFromDevice,
		KisImageWSP	image )

◆ mergeInMaskInternal()

void KisMask::mergeInMaskInternal	(	KisPaintDeviceSP	projection,
		KisSelectionSP	effectiveSelection,
		const QRect &	applyRect,
		const QRect &	preparedNeedRect,
		KisNode::PositionToFilthy	maskPos,
		KisRenderPassFlags	flags ) const

protectedvirtual

Reimplemented in KisSelectionMask.

Definition at line 337 of file kis_mask.cc.

{
    KisCachedPaintDevice::Guard d1(projection, m_d->paintDeviceCache);
    KisPaintDeviceSP cacheDevice = d1.device();

    if (effectiveSelection) {
        QRect updatedRect = decorateRect(projection, cacheDevice, applyRect, maskPos, flags);

        // masks don't have any compositing
        KisPainter::copyAreaOptimized(updatedRect.topLeft(), cacheDevice, projection, updatedRect, effectiveSelection);

    } else {
        cacheDevice->makeCloneFromRough(projection, preparedNeedRect);
        projection->clear(preparedNeedRect);

        decorateRect(cacheDevice, projection, applyRect, maskPos, flags);
    }
}

References KisPaintDevice::clear(), KisPainter::copyAreaOptimized(), decorateRect(), KisCachedPaintDevice::Guard::device(), m_d, KisPaintDevice::makeCloneFromRough(), and projection().

◆ needRect()

QRect KisMask::needRect	(	const QRect &	rect,
		PositionToFilthy	pos = N_FILTHY ) const

overridevirtual

Returns: internal needRect() of the node. Do not mix with

See also: projectionPlane()

Some filters need pixels outside the current processing rect to compute the new value (for instance, convolution filters) See changeRect See accessRect

Reimplemented from KisNode.

Reimplemented in KisSelectionMask, KisTransformMask, and KisTransparencyMask.

Definition at line 366 of file kis_mask.cc.

{
    Q_UNUSED(pos);
    QRect resultRect = rect;
    if (m_d->selection) {
        QRect selectionExtent = m_d->selection->selectedRect();

        // copy for thread safety!
        KisPaintDeviceSP temporaryTarget = this->temporaryTarget();

        if (temporaryTarget) {
            selectionExtent |= temporaryTarget->extent();
        }

        resultRect &= selectionExtent;
    }

    return resultRect;
}

References KisPaintDevice::extent(), m_d, and KisIndirectPaintingSupport::temporaryTarget.

◆ nonDependentExtent()

QRect KisMask::nonDependentExtent ( ) const

virtual

Usually masks themselves do not have any paint device and all their final effect on the layer stack is computed using the changeRect() of the dirty rect of the parent layer. Their extent() and exectBounds() methods work the same way: by taking the extent of the parent layer and computing the rect basing on it. But some of the masks like Colorize Mask may have their own "projection", which is painted independently from the changed area of the parent layer. This additional "non-dependent" extent is added to the extent of the parent layer.

Reimplemented in KisColorizeMask.

Definition at line 467 of file kis_mask.cc.

{
    return QRect();
}

◆ original()

KisPaintDeviceSP KisMask::original ( ) const

overridevirtual

Returns: the same as paintDevice()

Implements KisBaseNode.

Definition at line 229 of file kis_mask.cc.

{
    return paintDevice();
}

References paintDevice().

◆ paintDevice()

KisPaintDeviceSP KisMask::paintDevice ( ) const

overridevirtual

Returns: the selection: if you paint on mask, you paint on the selections

Implements KisBaseNode.

Reimplemented in KisTransformMask.

Definition at line 223 of file kis_mask.cc.

{
    KisSelectionSP selection = this->selection();
    return selection ? selection->pixelSelection() : 0;
}

References KisSelection::pixelSelection, and selection.

◆ paintsOutsideSelection()

bool KisMask::paintsOutsideSelection ( ) const

protectedvirtual

Reimplemented in KisSelectionMask, and KisTransparencyMask.

Definition at line 284 of file kis_mask.cc.

{
    return false;
}

◆ Private()

KisMask::Private ( KisMask * _q )

inline

Definition at line 38 of file kis_mask.cc.

        : q(_q),
          projectionPlane(new KisMaskProjectionPlane(q))
    {
    }

◆ projection()

KisPaintDeviceSP KisMask::projection ( ) const

overridevirtual

Returns: the same as paintDevice()

Implements KisBaseNode.

Definition at line 234 of file kis_mask.cc.

{
    KisPaintDeviceSP originalDevice = original();
    KisPaintDeviceSP result = originalDevice;

    KisSelectionSP selection = this->selection();
    if (selection && hasTemporaryTarget()) {
        result = m_d->safeProjection->getDeviceLazy(selection)->pixelSelection();
    }

    return result;
}

References KisIndirectPaintingSupport::hasTemporaryTarget(), m_d, original(), and selection.

◆ projectionPlane()

KisAbstractProjectionPlaneSP KisMask::projectionPlane ( ) const

overridevirtual

Returns: a pointer to a KisAbstractProjectionPlane interface of the node. This interface is used by the image merging framework to get information and to blending for the layer.

Please note the difference between need/change/accessRect and the projectionPlane() interface. The former one gives information about internal composition of the layer, and the latter one about the total composition, including layer styles, pass-through blending and etc.

Reimplemented from KisNode.

◆ requestKeyframeChannel()

KisKeyframeChannel * KisMask::requestKeyframeChannel ( const QString & id )

overrideprotectedvirtual

Attempt to create the requested channel. Used internally by getKeyframeChannel. Subclasses should implement this method to catch any new channel types they support.

Parameters

id	channel to create

Returns: newly created channel or null

Reimplemented from KisBaseNode.

Reimplemented in KisTransformMask.

Definition at line 509 of file kis_mask.cc.

{
    if (id == KisKeyframeChannel::Raster.id()) {
        KisPaintDeviceSP device = paintDevice();
        if (device) {
            KisRasterKeyframeChannel *contentChannel = device->createKeyframeChannel(KisKeyframeChannel::Raster);
            contentChannel->setFilenameSuffix(".pixelselection");
            return contentChannel;
       }
    }

    return KisNode::requestKeyframeChannel(id);
}

References KisPaintDevice::createKeyframeChannel(), paintDevice(), KisKeyframeChannel::Raster, KisBaseNode::requestKeyframeChannel(), and KisRasterKeyframeChannel::setFilenameSuffix().

◆ select()

void KisMask::select	(	const QRect &	rc,
		quint8	selectedness = MAX_SELECTED )

Selected the specified rect with the specified amount of selectedness.

Definition at line 261 of file kis_mask.cc.

{
    KisSelectionSP sel = selection();
    KisPixelSelectionSP psel = sel->pixelSelection();
    psel->select(rc, selectedness);
    sel->updateProjection(rc);
}

References KisSelection::pixelSelection, KisPixelSelection::select(), selection, and KisSelection::updateProjection().

◆ selection()

KisSelectionSP KisMask::selection ( ) const

Return the selection associated with this mask. A selection can contain both a paint device and shapes.

◆ setImage()

void KisMask::setImage ( KisImageWSP image )

overridevirtual

Reimplemented from KisBaseNode.

Reimplemented in KisTransformMask.

Definition at line 103 of file kis_mask.cc.

{
    KisPaintDeviceSP parentPaintDevice = parent() ? parent()->original() : 0;
    KisDefaultBoundsBaseSP defaultBounds;

    if (parentPaintDevice) {
        defaultBounds = new KisSelectionDefaultBounds(parentPaintDevice);
    } else {
        if (image) {
            qWarning() << "WARNING: KisMask::setImage() was called without any parent layer being set";
        }

        // just a fallback solution
        defaultBounds = new KisDefaultBounds(image);
    }

    if (m_d->selection) {
        m_d->selection->setDefaultBounds(defaultBounds);
        m_d->selection->setResolutionProxy(m_d->selection->resolutionProxy()->createOrCloneDetached(image));
    }

    m_d->safeProjection->setImage(image);

    KisNode::setImage(image);
}

References KisBaseNode::image, m_d, KisBaseNode::original(), KisNode::parent, and KisNode::setImage().

◆ setSelection()

void KisMask::setSelection ( KisSelectionSP selection )

Change the selection to the specified selection object. The selection is deep copied.

Definition at line 252 of file kis_mask.cc.

{
    m_d->selection = selection;
    m_d->selection->setDefaultBounds(new KisDefaultBounds(image()));
    m_d->selection->setResolutionProxy(toQShared(new KisImageResolutionProxy(image())));
    m_d->selection->setParentNode(this);
    m_d->selection->pixelSelection()->setSupportsWraparoundMode(true);
}

References KisBaseNode::image, m_d, selection, and toQShared().

◆ setX()

void KisMask::setX ( qint32 x )

overridevirtual

overridden from KisBaseNode

Reimplemented from KisBaseNode.

Reimplemented in KisTransformMask.

Definition at line 445 of file kis_mask.cc.

{
    if (m_d->selection) {
        m_d->selection->setX(x);
    } else if (!m_d->deferredSelectionOffset) {
        m_d->deferredSelectionOffset.reset(new QPoint(x, 0));
    } else {
        m_d->deferredSelectionOffset->rx() = x;
    }
}

References m_d, and x().

◆ setY()

void KisMask::setY ( qint32 y )

overridevirtual

overridden from KisBaseNode

Reimplemented from KisBaseNode.

Reimplemented in KisTransformMask.

Definition at line 456 of file kis_mask.cc.

{
    if (m_d->selection) {
        m_d->selection->setY(y);
    } else if (!m_d->deferredSelectionOffset) {
        m_d->deferredSelectionOffset.reset(new QPoint(0, y));
    } else {
        m_d->deferredSelectionOffset->ry() = y;
    }
}

References m_d, and y().

◆ supportsKeyframeChannel()

bool KisMask::supportsKeyframeChannel ( const QString & id )

overrideprotectedvirtual

Ideally, this function would be used to query for keyframe support before trying to create channels. The ability to query would help in cases such as animation curves where you might want to ask which channels it supports before allowing the user to add.

Parameters

id	queried channel

Returns: bool whether it supports said channel or not.

Reimplemented from KisBaseNode.

Reimplemented in KisTransformMask.

Definition at line 523 of file kis_mask.cc.

{
    if (id == KisKeyframeChannel::Raster.id() && paintDevice()) {
        return true;
    }

    return KisNode::supportsKeyframeChannel(id);
}

References paintDevice(), KisKeyframeChannel::Raster, and KisBaseNode::supportsKeyframeChannel().

◆ supportsLodPainting()

bool KisMask::supportsLodPainting ( ) const

overridevirtual

Returns true if the node can be painted via KisPaintDevice. Notable exceptions are selection-based layers and masks.

Reimplemented from KisBaseNode.

Definition at line 504 of file kis_mask.cc.

{
    return !m_d->selection || !m_d->selection->hasShapeSelection();
}

References m_d.

◆ testingInitSelection()

void KisMask::testingInitSelection	(	const QRect &	rect,
		KisLayerSP	parentLayer )

Definition at line 490 of file kis_mask.cc.

{
    if (parentLayer) {
        m_d->selection = new KisSelection(new KisSelectionDefaultBounds(parentLayer->paintDevice()), toQShared(new KisImageResolutionProxy(image())));
    } else {
        m_d->selection = new KisSelection(new KisSelectionEmptyBounds(), toQShared(new KisImageResolutionProxy(image())));
    }

    m_d->selection->pixelSelection()->select(rect, OPACITY_OPAQUE_U8);
    m_d->selection->pixelSelection()->setSupportsWraparoundMode(true);
    m_d->selection->updateProjection(rect);
    m_d->selection->setParentNode(this);
}

References KisBaseNode::image, m_d, OPACITY_OPAQUE_U8, KisBaseNode::paintDevice(), and toQShared().

◆ thumbnailSeqNo()

int KisMask::thumbnailSeqNo ( ) const

overridevirtual

Returns: a sequence number of the thumbnail of the node. Every time the layer changes, the sequence number increases.

Reimplemented from KisBaseNode.

Definition at line 483 of file kis_mask.cc.

{
    KisPaintDeviceSP originalDevice =
        selection() ? selection()->projection() : 0;
    return originalDevice ? originalDevice->sequenceNumber() : -1;
}

References KisSelection::projection(), selection, and KisPaintDevice::sequenceNumber().

◆ x()

qint32 KisMask::x ( ) const

overridevirtual

overridden from KisBaseNode

Reimplemented from KisBaseNode.

Reimplemented in KisTransformMask.

Definition at line 431 of file kis_mask.cc.

{
    return m_d->selection ? m_d->selection->x() :
           m_d->deferredSelectionOffset ? m_d->deferredSelectionOffset->x() :
           parent() ? parent()->x() : 0;
}

References m_d, KisNode::parent, and KisBaseNode::x().

◆ y()

qint32 KisMask::y ( ) const

overridevirtual

overridden from KisBaseNode

Reimplemented from KisBaseNode.

Reimplemented in KisTransformMask.

Definition at line 438 of file kis_mask.cc.

{
    return m_d->selection ? m_d->selection->y() :
           m_d->deferredSelectionOffset ? m_d->deferredSelectionOffset->y() :
           parent() ? parent()->y() : 0;
}

References m_d, KisNode::parent, and KisBaseNode::y().

Friends And Related Symbol Documentation

◆ KisMaskProjectionPlane

friend class KisMaskProjectionPlane

friend

Definition at line 220 of file kis_mask.h.

Member Data Documentation

◆ deferredSelectionOffset

QScopedPointer<QPoint> KisMask::deferredSelectionOffset

Due to the design of the Kra format the X,Y offset of the paint device belongs to the node, but not to the device itself. So the offset is set when the node is created, but not when the selection is initialized. This causes the X,Y values to be lost, since the selection does not exist at the moment. That is why we save it separately.

Definition at line 56 of file kis_mask.cc.

◆ m_d

Private* const KisMask::m_d

private

Definition at line 226 of file kis_mask.h.

◆ paintDeviceCache

KisCachedPaintDevice KisMask::paintDeviceCache

Definition at line 45 of file kis_mask.cc.

◆ projectionPlane

KisAbstractProjectionPlaneSP KisMask::projectionPlane

Definition at line 58 of file kis_mask.cc.

◆ q

KisMask* KisMask::q

Definition at line 46 of file kis_mask.cc.

◆ safeProjection

KisSafeSelectionNodeProjectionStoreSP KisMask::safeProjection

Definition at line 59 of file kis_mask.cc.

◆ selection

KisSelectionSP KisMask::selection

mutable

Definition at line 44 of file kis_mask.cc.

The documentation for this class was generated from the following files:

libs/image/kis_mask.cc
libs/image/kis_mask.h

Public Member Functions

Public Attributes

Protected Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ KisMask() [1/2]

◆ KisMask() [2/2]

◆ ~KisMask()

Member Function Documentation

◆ allowAsChild()

◆ apply()

◆ baseNodeChangedCallback()

◆ changeRect()

◆ colorSpace()

◆ compositeOp()

◆ createThumbnail()

◆ decorateRect()

◆ exactBounds()

◆ extent()

◆ flattenSelectionProjection()

◆ initSelection() [1/3]

◆ initSelection() [2/3]

◆ initSelection() [3/3]

◆ initSelectionImpl()

◆ mergeInMaskInternal()

◆ needRect()

◆ nonDependentExtent()

◆ original()

◆ paintDevice()

◆ paintsOutsideSelection()

◆ Private()

◆ projection()

◆ projectionPlane()

◆ requestKeyframeChannel()

◆ select()

◆ selection()

◆ setImage()

◆ setSelection()

◆ setX()

◆ setY()

◆ supportsKeyframeChannel()

◆ supportsLodPainting()

◆ testingInitSelection()

◆ thumbnailSeqNo()

◆ x()

◆ y()

Friends And Related Symbol Documentation

◆ KisMaskProjectionPlane

Member Data Documentation

◆ deferredSelectionOffset

◆ m_d

◆ paintDeviceCache

◆ projectionPlane

◆ q

◆ safeProjection

◆ selection
