KisDefaultBounds Class Reference

#include <kis_default_bounds.h>

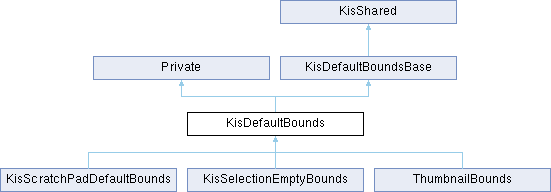

Inheritance diagram for KisDefaultBounds:

Public Member Functions
QRect	bounds () const override
int	currentLevelOfDetail () const override
int	currentTime () const override
bool	externalFrameActive () const override
	KisDefaultBounds ()
	KisDefaultBounds (KisImageWSP image)
void *	sourceCookie () const override
bool	wrapAroundMode () const override
WrapAroundAxis	wrapAroundModeAxis () const override
	~KisDefaultBounds () override
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)
Public Member Functions inherited from KisDefaultBoundsBase
virtual QRect	imageBorderRect () const
virtual	~KisDefaultBoundsBase ()
Public Member Functions inherited from KisShared
bool	deref ()
bool	ref ()
int	refCount ()
QAtomicInt *	sharedWeakReference ()

Public Attributes
KisImageWSP	image
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame

Static Protected Attributes
static const QRect	infiniteRect

Private Attributes
Private *const	m_d

Friends
class	KisPaintDeviceTest

Additional Inherited Members
Protected Member Functions inherited from KisShared
	KisShared ()
	~KisShared ()

Detailed Description

Definition at line 24 of file kis_default_bounds.cpp.

Constructor & Destructor Documentation

KisDefaultBounds() [1/2]

KisDefaultBounds::KisDefaultBounds

(

)

Definition at line 29 of file kis_default_bounds.cpp.

    : KisDefaultBounds(0)
{
}

KisDefaultBounds() [2/2]

KisDefaultBounds::KisDefaultBounds

(

KisImageWSP


)

Definition at line 34 of file kis_default_bounds.cpp.

    : m_d(new Private())
{
    m_d->image = image;
}

References image, and m_d.

~KisDefaultBounds()

KisDefaultBounds::~KisDefaultBounds ( )

override

Definition at line 40 of file kis_default_bounds.cpp.

{
    delete m_d;
}

References m_d.

Member Function Documentation

bounds()

QRect KisDefaultBounds::bounds ( ) const

overridevirtual

Returns a virtual bounding rect of a paint device. E.g. when a paint device has non-transparent default pixel, its virtual bounds extend much wider than the actual data it contains.

This bounds rectangle should be used in all the cases when one wants to process all the non-existing pixels with default value, which may still be visible to the user.

The returned rect usually equals to the bounds of the image, except of a few special cases for selections.

Example:

KisPaintDevice adds defaultBounds->bounds() to its extent() and exactBounds() when its default pixel is non-transparent.

By default return infinite rect to cover everything

Implements KisDefaultBoundsBase.

Reimplemented in KisSelectionEmptyBounds, ThumbnailBounds, and KisScratchPadDefaultBounds.

Definition at line 45 of file kis_default_bounds.cpp.

{
    return m_d->image ? m_d->image->effectiveLodBounds() : infiniteRect;
}

References infiniteRect, and m_d.

currentLevelOfDetail()

int KisDefaultBounds::currentLevelOfDetail ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 63 of file kis_default_bounds.cpp.

{
    return m_d->image ? m_d->image->currentLevelOfDetail() : 0;
}

References m_d.

currentTime()

int KisDefaultBounds::currentTime ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 68 of file kis_default_bounds.cpp.

{
    KisImageAnimationInterface *interface = m_d->image ? m_d->image->animationInterface() : 0;
    return interface ? interface->currentTime() : 0;
}

References currentTime(), image, and m_d.

externalFrameActive()

bool KisDefaultBounds::externalFrameActive ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 74 of file kis_default_bounds.cpp.

{
    KisImageAnimationInterface *interface = m_d->image ? m_d->image->animationInterface() : 0;
    return interface ? interface->externalFrameActive() : false;
}

References externalFrameActive(), image, and m_d.

sourceCookie()

void * KisDefaultBounds::sourceCookie ( ) const

overridevirtual

Return an abstract pointer to the source object, where default bounds takes its data from. It the cookie is nullptr, then the default bounds is not connected to anything. One can also compare if two default bounds are connected to the same source by comparing two pointers.

NOTE: It is intended to be used for debugging purposes only!

Implements KisDefaultBoundsBase.

Reimplemented in KisScratchPadDefaultBounds.

Definition at line 80 of file kis_default_bounds.cpp.

{
    return m_d->image.data();
}

wrapAroundMode()

bool KisDefaultBounds::wrapAroundMode ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 53 of file kis_default_bounds.cpp.

{
    return m_d->image ? m_d->image->wrapAroundModeActive() : false;
}

References m_d.

wrapAroundModeAxis()

WrapAroundAxis KisDefaultBounds::wrapAroundModeAxis ( ) const

overridevirtual

Implements KisDefaultBoundsBase.

Definition at line 58 of file kis_default_bounds.cpp.

{
    return m_d->image ? m_d->image->wrapAroundModeAxis() : WRAPAROUND_BOTH;
}

References m_d, and WRAPAROUND_BOTH.

Friends And Related Symbol Documentation

KisPaintDeviceTest

friend class KisPaintDeviceTest

friend

Definition at line 39 of file kis_default_bounds.h.

Member Data Documentation


KisImageWSP KisDefaultBounds::image

Definition at line 26 of file kis_default_bounds.cpp.

infiniteRect

const QRect KisDefaultBounds::infiniteRect

staticprotected

Initial value:

=
    QRect(qint32_MIN/2, qint32_MIN/2, qint32_MAX, qint32_MAX)

Definition at line 40 of file kis_default_bounds.h.

m_d

Private* const KisDefaultBounds::m_d

private

Definition at line 46 of file kis_default_bounds.h.

---

The documentation for this class was generated from the following files:

• libs/image/kis_default_bounds.cpp
• libs/image/kis_default_bounds.h
