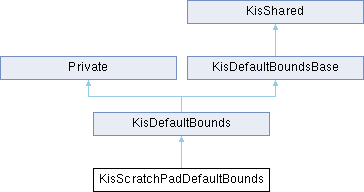

Inheritance diagram for KisScratchPadDefaultBounds:

Public Member Functions
QRect	bounds () const override

	KisScratchPadDefaultBounds (KisScratchPad *scratchPad)

void *	sourceCookie () const override

	~KisScratchPadDefaultBounds () override

Public Member Functions inherited from KisDefaultBounds
int	currentLevelOfDetail () const override

int	currentTime () const override

bool	externalFrameActive () const override

	KisDefaultBounds ()

	KisDefaultBounds (KisImageWSP image)

bool	wrapAroundMode () const override

WrapAroundAxis	wrapAroundModeAxis () const override

	~KisDefaultBounds () override

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KisDefaultBoundsBase
virtual QRect	imageBorderRect () const

virtual	~KisDefaultBoundsBase ()

Public Member Functions inherited from KisShared
bool	deref ()

bool	ref ()

int	refCount ()

QAtomicInt *	sharedWeakReference ()

Private Attributes
KisScratchPad *	m_scratchPad

Additional Inherited Members
Public Attributes inherited from KisDefaultBounds
KisImageWSP	image

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Protected Member Functions inherited from KisShared
	KisShared ()

	~KisShared ()

Static Protected Attributes inherited from KisDefaultBounds
static const QRect	infiniteRect

Detailed Description

Definition at line 116 of file kis_scratch_pad.cpp.

Constructor & Destructor Documentation

◆ KisScratchPadDefaultBounds()

KisScratchPadDefaultBounds::KisScratchPadDefaultBounds ( KisScratchPad * scratchPad )

inline

Definition at line 120 of file kis_scratch_pad.cpp.

        : m_scratchPad(scratchPad)
    {
    }

◆ ~KisScratchPadDefaultBounds()

KisScratchPadDefaultBounds::~KisScratchPadDefaultBounds ( )

inlineoverride

Definition at line 125 of file kis_scratch_pad.cpp.

125{}

Member Function Documentation

◆ bounds()

QRect KisScratchPadDefaultBounds::bounds ( ) const

inlineoverridevirtual

Returns a virtual bounding rect of a paint device. E.g. when a paint device has non-transparent default pixel, its virtual bounds extend much wider than the actual data it contains.

This bounds rectangle should be used in all the cases when one wants to process all the non-existing pixels with default value, which may still be visible to the user.

The returned rect usually equals to the bounds of the image, except of a few special cases for selections.

Example:

KisPaintDevice adds defaultBounds->bounds() to its extent() and exactBounds() when its default pixel is non-transparent.

By default return infinite rect to cover everything

Reimplemented from KisDefaultBounds.

Definition at line 127 of file kis_scratch_pad.cpp.

                                  {
        return m_scratchPad->imageBounds();
    }

References KisScratchPad::imageBounds(), and m_scratchPad.

◆ sourceCookie()

void * KisScratchPadDefaultBounds::sourceCookie ( ) const

inlineoverridevirtual

Return an abstract pointer to the source object, where default bounds takes its data from. It the cookie is nullptr, then the default bounds is not connected to anything. One can also compare if two default bounds are connected to the same source by comparing two pointers.

NOTE: It is intended to be used for debugging purposes only!

Reimplemented from KisDefaultBounds.

Definition at line 131 of file kis_scratch_pad.cpp.

                                         {
        return m_scratchPad;
    }

References m_scratchPad.

Member Data Documentation

◆ m_scratchPad

KisScratchPad* KisScratchPadDefaultBounds::m_scratchPad

private

Definition at line 138 of file kis_scratch_pad.cpp.

The documentation for this class was generated from the following file:

libs/ui/widgets/kis_scratch_pad.cpp
