#include <KoColorSpaceAbstract.h>

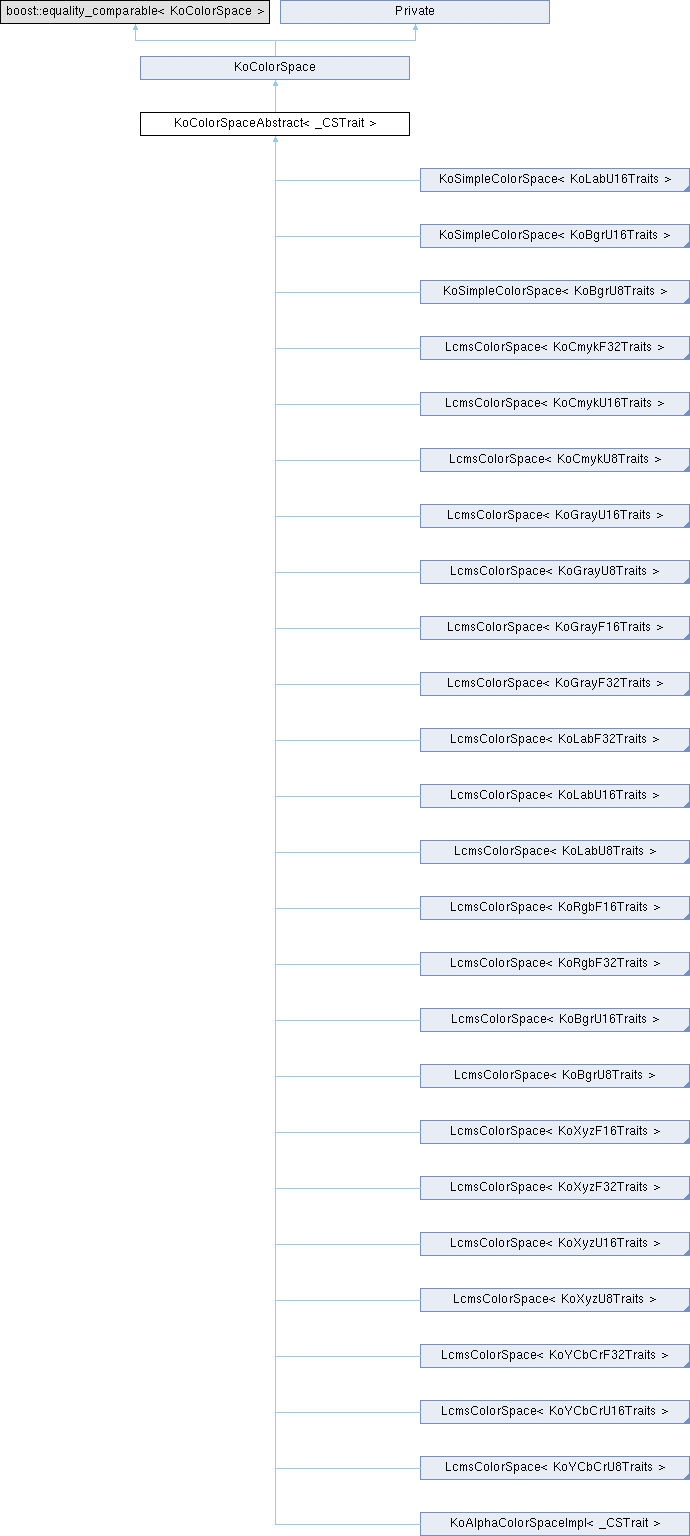

Inheritance diagram for KoColorSpaceAbstract< _CSTrait >:

Public Types
typedef _CSTrait	ColorSpaceTraits

Public Member Functions
quint32	alphaPos () const override

void	applyAlphaNormedFloatMask (quint8 pixels, const float alpha, qint32 nPixels) const override

void	applyAlphaU8Mask (quint8 pixels, const quint8 alpha, qint32 nPixels) const override

void	applyInverseAlphaU8Mask (quint8 pixels, const quint8 alpha, qint32 nPixels) const override

void	applyInverseNormedFloatMask (quint8 pixels, const float alpha, qint32 nPixels) const override

quint32	channelCount () const override

QString	channelValueText (const quint8 *pixel, quint32 channelIndex) const override

quint32	colorChannelCount () const override

void	convertChannelToVisualRepresentation (const quint8 src, quint8 dst, quint32 nPixels, const QBitArray selectedChannels) const override

void	convertChannelToVisualRepresentation (const quint8 src, quint8 dst, quint32 nPixels, const qint32 selectedChannelIndex) const override

void	copyOpacityU8 (quint8 src, quint8 dst, qint32 nPixels) const override

KoColorTransformation *	createDarkenAdjustment (qint32 shade, bool compensate, qreal compensation) const override

KoColorTransformation *	createInvertTransformation () const override

void	fillGrayBrushWithColor (quint8 dst, const QRgb brush, quint8 *brushColor, qint32 nPixels) const override

void	fillInverseAlphaNormedFloatMaskWithColor (quint8 pixels, const float alpha, const quint8 *brushColor, qint32 nPixels) const override

void	fromNormalisedChannelsValue (quint8 *pixel, const QVector< float > &values) const override

quint8	intensity8 (const quint8 *src) const override

qreal	intensityF (const quint8 *src) const override

	KoColorSpaceAbstract (const QString &id, const QString &name)

void	multiplyAlpha (quint8 *pixels, quint8 alpha, qint32 nPixels) const override

void	normalisedChannelsValue (const quint8 *pixel, QVector< float > &channels) const override

QString	normalisedChannelValueText (const quint8 *pixel, quint32 channelIndex) const override

qreal	opacityF (const quint8 *U8_pixel) const override

quint8	opacityU8 (const quint8 *U8_pixel) const override

quint32	pixelSize () const override

quint8	scaleToU8 (const quint8 *srcPixel, qint32 channelIndex) const override

void	setOpacity (quint8 *pixels, qreal alpha, qint32 nPixels) const override

void	setOpacity (quint8 *pixels, quint8 alpha, qint32 nPixels) const override

void	singleChannelPixel (quint8 dstPixel, const quint8 srcPixel, quint32 channelIndex) const override

void	toQColor16 (const quint8 src, QColor c) const override

Public Member Functions inherited from KoColorSpace
virtual void	addCompositeOp (const KoCompositeOp *op)

virtual void	addDitherOp (KisDitherOp *op)

virtual void	bitBlt (const KoColorSpace srcSpace, const KoCompositeOp::ParameterInfo &params, const KoCompositeOp op, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::ConversionFlags conversionFlags) const

QBitArray	channelFlags (bool color=true, bool alpha=false) const

QList< KoChannelInfo * >	channels () const

virtual KoID	colorDepthId () const =0

virtual void	colorFromXML (quint8 *pixel, const QDomElement &elt) const =0

virtual KoID	colorModelId () const =0

virtual void	colorToXML (const quint8 *pixel, QDomDocument &doc, QDomElement &colorElt) const =0

const KoCompositeOp *	compositeOp (const QString &id, const KoColorSpace *srcSpace=nullptr) const

virtual QList< KoCompositeOp * >	compositeOps () const

virtual bool	convertPixelsTo (const quint8 src, quint8 dst, const KoColorSpace *dstColorSpace, quint32 numPixels, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::ConversionFlags conversionFlags) const

virtual QImage	convertToQImage (const quint8 data, qint32 width, qint32 height, const KoColorProfile dstProfile, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::ConversionFlags conversionFlags) const

virtual KoConvolutionOp *	convolutionOp () const

virtual KoColorTransformation *	createBrightnessContrastAdjustment (const quint16 *transferValues) const =0

virtual KoColorConversionTransformation *	createColorConverter (const KoColorSpace *dstColorSpace, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::ConversionFlags conversionFlags) const

KoColorTransformation *	createColorTransformation (const QString &id, const QHash< QString, QVariant > &parameters) const

virtual KoColorTransformation *	createPerChannelAdjustment (const quint16 const transferValues) const =0

virtual KoColorConversionTransformation *	createProofingTransform (const KoColorSpace dstColorSpace, const KoColorSpace proofingSpace, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::Intent proofingIntent, bool bpcFirstTransform, quint8 *gamutWarning, KoColorConversionTransformation::ConversionFlags displayConversionFlags) const
	createProofingTransform Create a proofing transform. This is a two part transform that can also do gamut checks. The first transform is from source -> proofing space. Here the gamut checks are performed. The second is the proofing to destination space.

virtual void	decreaseHue (quint8 *pixel, qreal step) const

virtual void	decreaseLuminosity (quint8 *pixel, qreal step) const

virtual void	decreaseSaturation (quint8 *pixel, qreal step) const

virtual quint8	difference (const quint8 src1, const quint8 src2) const =0

virtual quint8	differenceA (const quint8 src1, const quint8 src2) const =0

virtual const KisDitherOp *	ditherOp (const QString &depth, DitherType type) const

QPolygonF	estimatedTRCXYY () const

virtual void	fillGrayBrushWithColorAndLightnessOverlay (quint8 dst, const QRgb brush, quint8 *brushColor, qint32 nPixels) const

virtual void	fillGrayBrushWithColorAndLightnessWithStrength (quint8 dst, const QRgb brush, quint8 *brushColor, qreal strength, qint32 nPixels) const

virtual QVector< double >	fromHSY (qreal hue, qreal sat, qreal *luma) const =0

virtual void	fromLabA16 (const quint8 src, quint8 dst, quint32 nPixels) const

virtual void	fromQColor (const QColor &color, quint8 *dst) const =0

virtual void	fromRgbA16 (const quint8 src, quint8 dst, quint32 nPixels) const

virtual QVector< double >	fromYUV (qreal y, qreal u, qreal *v) const =0

QPolygonF	gamutXYY () const

virtual bool	hasCompositeOp (const QString &id, const KoColorSpace *srcSpace=nullptr) const

virtual bool	hasHighDynamicRange () const =0

QString	id () const

virtual void	increaseBlue (quint8 *pixel, qreal step) const

virtual void	increaseGreen (quint8 *pixel, qreal step) const

virtual void	increaseHue (quint8 *pixel, qreal step) const

virtual void	increaseLuminosity (quint8 *pixel, qreal step) const

virtual void	increaseRed (quint8 *pixel, qreal step) const

virtual void	increaseSaturation (quint8 *pixel, qreal step) const

virtual void	increaseYellow (quint8 *pixel, qreal step) const

	KoColorSpace (const QString &id, const QString &name, KoMixColorsOp mixColorsOp, KoConvolutionOp convolutionOp)
	Should be called by real color spaces.

QVector< qreal >	lumaCoefficients () const

virtual KoMixColorsOp *	mixColorsOp () const

virtual void	modulateLightnessByGrayBrush (quint8 dst, const QRgb brush, qreal strength, qint32 nPixels) const

QString	name () const

virtual bool	operator== (const KoColorSpace &rhs) const

virtual const KoColorProfile *	profile () const =0

virtual bool	profileIsCompatible (const KoColorProfile *profile) const =0

virtual bool	proofPixelsTo (const quint8 src, quint8 dst, quint32 numPixels, KoColorConversionTransformation *proofingTransform) const
	proofPixelsTo

virtual void	toHSY (const QVector< double > &channelValues, qreal hue, qreal sat, qreal *luma) const =0

virtual void	toLabA16 (const quint8 src, quint8 dst, quint32 nPixels) const

virtual void	toQColor (const quint8 src, QColor c) const =0

virtual void	toRgbA16 (const quint8 src, quint8 dst, quint32 nPixels) const

virtual void	toYUV (const QVector< double > &channelValues, qreal y, qreal u, qreal *v) const =0

virtual void	transparentColor (quint8 *dst, quint32 nPixels) const

virtual bool	willDegrade (ColorSpaceIndependence independence) const =0

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Private Attributes
QScopedPointer< KoAlphaMaskApplicatorBase >	m_alphaMaskApplicator

Additional Inherited Members
Public Attributes inherited from KoColorSpace
ThreadLocalCache	channelFlagsApplicationCache

QList< KoChannelInfo * >	channels

QVector< qreal >	colorants

QHash< QString, KoCompositeOp * >	compositeOps

ThreadLocalCache	conversionCache

KoConvolutionOp *	convolutionOp

Deletability	deletability

QHash< QString, QMap< DitherType, KisDitherOp * > >	ditherOps

QPolygonF	gamutXYY

KoColorSpaceEngine *	iccEngine

QString	id

quint32	idNumber

QVector< qreal >	lumaCoefficients

KoMixColorsOp *	mixColorsOp

QString	name

KoColorConversionTransformation *	transfoFromLABA16

KoColorConversionTransformation *	transfoFromRGBA16

KoColorConversionTransformation *	transfoToLABA16

KoColorConversionTransformation *	transfoToRGBA16

QPolygonF	TRCXYY

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Protected Member Functions inherited from KoColorSpace
virtual void	addChannel (KoChannelInfo *ci)

const KoColorConversionTransformation *	fromLabA16Converter () const

const KoColorConversionTransformation *	fromRgbA16Converter () const

	KoColorSpace ()
	Only for use by classes that serve as baseclass for real color spaces.

virtual bool	preferCompositionInSourceColorSpace () const

const KoColorConversionTransformation *	toLabA16Converter () const

const KoColorConversionTransformation *	toRgbA16Converter () const

virtual	~KoColorSpace ()

Protected Attributes inherited from KoColorSpace
Private *const	d

Detailed Description

template<class _CSTrait>
class KoColorSpaceAbstract< _CSTrait >

This in an implementation of KoColorSpace which can be used as a base for colorspaces with as many different channels of the same type.

The template parameters must be a class which inherits KoColorSpaceTrait (or a class with the same signature).

SOMETYPE is the type of the channel for instance (quint8, quint32...), SOMENBOFCHANNELS is the number of channels including the alpha channel SOMEALPHAPOS is the position of the alpha channel in the pixel (can be equal to -1 if no alpha channel).

Definition at line 38 of file KoColorSpaceAbstract.h.

Member Typedef Documentation

◆ ColorSpaceTraits

template<class _CSTrait >

typedef _CSTrait KoColorSpaceAbstract< _CSTrait >::ColorSpaceTraits

Definition at line 41 of file KoColorSpaceAbstract.h.

Constructor & Destructor Documentation

◆ KoColorSpaceAbstract()

template<class _CSTrait >

KoColorSpaceAbstract< _CSTrait >::KoColorSpaceAbstract	(	const QString &	id,
		const QString &	name )

inline

Definition at line 44 of file KoColorSpaceAbstract.h.

        : KoColorSpace(id, name, new KoMixColorsOpImpl< _CSTrait>(), new KoConvolutionOpImpl< _CSTrait>()),
          m_alphaMaskApplicator(KoAlphaMaskApplicatorFactory::create(colorDepthIdForChannelType<typename _CSTrait::channels_type>(), _CSTrait::channels_nb, _CSTrait::alpha_pos))
    {
    }

Member Function Documentation

◆ alphaPos()

template<class _CSTrait >

quint32 KoColorSpaceAbstract< _CSTrait >::alphaPos ( ) const

inlineoverridevirtual

Position of the alpha channel in a pixel

Implements KoColorSpace.

Definition at line 61 of file KoColorSpaceAbstract.h.

                                      {
        return _CSTrait::alpha_pos;
    }

◆ applyAlphaNormedFloatMask()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::applyAlphaNormedFloatMask	(	quint8 *	pixels,
		const float *	alpha,
		qint32	nPixels ) const

inlineoverridevirtual

Applies the specified float alpha mask to the pixels. We assume that there are just as many alpha values as pixels but we do not check this; alpha values have to be between 0.0 and 1.0

Implements KoColorSpace.

Definition at line 127 of file KoColorSpaceAbstract.h.

                                                                                                        {
        _CSTrait::applyAlphaNormedFloatMask(pixels, alpha, nPixels);
    }

◆ applyAlphaU8Mask()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::applyAlphaU8Mask	(	quint8 *	pixels,
		const quint8 *	alpha,
		qint32	nPixels ) const

inlineoverridevirtual

Applies the specified 8-bit alpha mask to the pixels. We assume that there are just as many alpha values as pixels but we do not check this; the alpha values are assumed to be 8-bits.

Implements KoColorSpace.

Definition at line 119 of file KoColorSpaceAbstract.h.

                                                                                                {
        _CSTrait::applyAlphaU8Mask(pixels, alpha, nPixels);
    }

◆ applyInverseAlphaU8Mask()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::applyInverseAlphaU8Mask	(	quint8 *	pixels,
		const quint8 *	alpha,
		qint32	nPixels ) const

inlineoverridevirtual

Applies the inverted 8-bit alpha mask to the pixels. We assume that there are just as many alpha values as pixels but we do not check this; the alpha values are assumed to be 8-bits.

Implements KoColorSpace.

Definition at line 123 of file KoColorSpaceAbstract.h.

                                                                                                       {
        _CSTrait::applyInverseAlphaU8Mask(pixels, alpha, nPixels);
    }

◆ applyInverseNormedFloatMask()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::applyInverseNormedFloatMask	(	quint8 *	pixels,
		const float *	alpha,
		qint32	nPixels ) const

inlineoverridevirtual

Applies the inverted specified float alpha mask to the pixels. We assume that there are just as many alpha values as pixels but we do not check this; alpha values have to be between 0.0 and 1.0

Implements KoColorSpace.

Definition at line 131 of file KoColorSpaceAbstract.h.

                                                                                                          {
        m_alphaMaskApplicator->applyInverseNormedFloatMask(pixels, alpha, nPixels);
    }

References KoColorSpaceAbstract< _CSTrait >::m_alphaMaskApplicator.

◆ channelCount()

template<class _CSTrait >

quint32 KoColorSpaceAbstract< _CSTrait >::channelCount ( ) const

inlineoverridevirtual

The total number of channels for a single pixel in this color model

Implements KoColorSpace.

Definition at line 57 of file KoColorSpaceAbstract.h.

                                          {
        return _CSTrait::channels_nb;
    }

◆ channelValueText()

template<class _CSTrait >

QString KoColorSpaceAbstract< _CSTrait >::channelValueText	(	const quint8 *	pixel,
		quint32	channelIndex ) const

inlineoverridevirtual

Return a string with the channel's value suitable for display in the gui.

Implements KoColorSpace.

Definition at line 70 of file KoColorSpaceAbstract.h.

                                                                                       {
        return _CSTrait::channelValueText(pixel, channelIndex);
    }

◆ colorChannelCount()

template<class _CSTrait >

quint32 KoColorSpaceAbstract< _CSTrait >::colorChannelCount ( ) const

inlineoverridevirtual

The total number of color channels (excludes alpha) for a single pixel in this color model.

Implements KoColorSpace.

Definition at line 50 of file KoColorSpaceAbstract.h.

                                               {
        if (_CSTrait::alpha_pos == -1)
            return _CSTrait::channels_nb;
        else
            return _CSTrait::channels_nb - 1;
    }

◆ convertChannelToVisualRepresentation() [1/2]

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::convertChannelToVisualRepresentation	(	const quint8 *	src,
		quint8 *	dst,
		quint32	nPixels,
		const QBitArray	selectedChannels ) const

inlineoverridevirtual

Convert nPixels pixels in src into their human-visible visual representation. The channels are shown as if other channels were null (or, if Lab, L = 1.0, *a = *b = 0.0).

Both buffers are in the same color space.

Parameters

src	source buffer in (*this) color space
dst	destination buffer in the same color space as `src`
nPixels	length of the buffers in number of pixels
pixelSize	stride of each pixel in the destination buffer
selectedChannels	Bitmap of selected channels

Implements KoColorSpace.

Reimplemented in KoLabColorSpace, LabF32ColorSpace, LabU16ColorSpace, and LabU8ColorSpace.

Definition at line 198 of file KoColorSpaceAbstract.h.

    {
        for (uint pixelIndex = 0; pixelIndex < nPixels; ++pixelIndex) {
            const quint8 *srcPtr = src + pixelIndex * _CSTrait::pixelSize;
            quint8 *dstPtr = dst + pixelIndex * _CSTrait::pixelSize;

            const typename _CSTrait::channels_type *srcPixel = _CSTrait::nativeArray(srcPtr);
            typename _CSTrait::channels_type *dstPixel = _CSTrait::nativeArray(dstPtr);

            for (uint channelIndex = 0; channelIndex < _CSTrait::channels_nb; ++channelIndex) {
                if (selectedChannels.testBit(channelIndex)) {
                    dstPixel[channelIndex] = srcPixel[channelIndex];
                } else {
                    dstPixel[channelIndex] = _CSTrait::math_trait::zeroValue;
                }
            }
        }
    }

◆ convertChannelToVisualRepresentation() [2/2]

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::convertChannelToVisualRepresentation	(	const quint8 *	src,
		quint8 *	dst,
		quint32	nPixels,
		const qint32	selectedChannelIndex ) const

inlineoverridevirtual

Convert nPixels pixels in src into their human-visible visual representation. The channel is shown as grayscale.

Both buffers are in the same color space.

Parameters

src	source buffer in (*this) color space
dst	destination buffer in the same color space as `src`
nPixels	length of the buffers in number of pixels
pixelSize	stride of each pixel in the destination buffer
selectedChannelIndex	Index of the selected channel.

Implements KoColorSpace.

Reimplemented in KoLabColorSpace, LabF32ColorSpace, LabU16ColorSpace, and LabU8ColorSpace.

Definition at line 173 of file KoColorSpaceAbstract.h.

    {
        const int alphaPos = _CSTrait::alpha_pos;

        for (uint pixelIndex = 0; pixelIndex < nPixels; ++pixelIndex) {

            const quint8 *srcPtr = src + pixelIndex * _CSTrait::pixelSize;
            quint8 *dstPtr = dst + pixelIndex * _CSTrait::pixelSize;

            const typename _CSTrait::channels_type *srcPixel = _CSTrait::nativeArray(srcPtr);
            typename _CSTrait::channels_type *dstPixel = _CSTrait::nativeArray(dstPtr);

            typename _CSTrait::channels_type commonChannel = srcPixel[selectedChannelIndex];

            for (uint channelIndex = 0; channelIndex < _CSTrait::channels_nb; ++channelIndex) {

                if (channelIndex != alphaPos) {
                    dstPixel[channelIndex] = commonChannel;
                } else {
                    dstPixel[channelIndex] = srcPixel[channelIndex];
                }
            }
        }
    }

References KoColorSpaceAbstract< _CSTrait >::alphaPos().

◆ copyOpacityU8()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::copyOpacityU8	(	quint8 *	src,
		quint8 *	dst,
		qint32	nPixels ) const

inlineoverridevirtual

Copy the opacity of a run of pixels.

src – pixels to get opacity from. This is in the source colorspace. dst – pixels in Alpha8 colorspace to be assigned the opacity of src pixel nPixels – the number of pixels

Implements KoColorSpace.

Definition at line 111 of file KoColorSpaceAbstract.h.

                                                                                {
        _CSTrait::copyOpacityU8(src, dst, nPixels);
    }

◆ createDarkenAdjustment()

template<class _CSTrait >

KoColorTransformation * KoColorSpaceAbstract< _CSTrait >::createDarkenAdjustment	(	qint32	shade,
		bool	compensate,
		qreal	compensation ) const

inlineoverridevirtual

Darken all color channels with the given amount. If compensate is true, the compensation factor will be used to limit the darkening.

Implements KoColorSpace.

Reimplemented in KoSimpleColorSpace< _CSTraits >, KoSimpleColorSpace< KoBgrU16Traits >, KoSimpleColorSpace< KoBgrU8Traits >, and KoSimpleColorSpace< KoLabU16Traits >.

Definition at line 169 of file KoColorSpaceAbstract.h.

                                                                                                                    {
        return new KoFallBackColorTransformation(this, KoColorSpaceRegistry::instance()->lab16(""), new KoLabDarkenColorTransformation<quint16>(shade, compensate, compensation, KoColorSpaceRegistry::instance()->lab16("")));
    }

References KoColorSpaceRegistry::instance().

◆ createInvertTransformation()

template<class _CSTrait >

KoColorTransformation * KoColorSpaceAbstract< _CSTrait >::createInvertTransformation ( ) const

inlineoverridevirtual

Invert color channels of the given pixels This function is thread-safe, but you need to create one KoColorTransformation per thread.

Implements KoColorSpace.

Definition at line 165 of file KoColorSpaceAbstract.h.

                                                                       {
        return KoInvertColorTransformation::getTransformator(this);
    }

References KoInvertColorTransformation::getTransformator().

◆ fillGrayBrushWithColor()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::fillGrayBrushWithColor	(	quint8 *	dst,
		const QRgb *	brush,
		quint8 *	brushColor,
		qint32	nPixels ) const

inlineoverridevirtual

Fills dst with specified brushColor and then applies inverted brush mask specified in brush. Premultiplied red channel of the brush is used as an alpha channel for destination pixels.

The equation is:

dstC = colorC;
dstA = qAlpha(brush) * (255 - qRed(brush)) / 255;

Implements KoColorSpace.

Definition at line 139 of file KoColorSpaceAbstract.h.

                                                                                                                   {
        m_alphaMaskApplicator->fillGrayBrushWithColor(dst, brush, brushColor, nPixels);
    }

References KoColorSpaceAbstract< _CSTrait >::m_alphaMaskApplicator.

◆ fillInverseAlphaNormedFloatMaskWithColor()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::fillInverseAlphaNormedFloatMaskWithColor	(	quint8 *	pixels,
		const float *	alpha,
		const quint8 *	brushColor,
		qint32	nPixels ) const

inlineoverridevirtual

Fills pixels with specified brushColor and then applies inverted brush mask specified in alpha.

Implements KoColorSpace.

Definition at line 135 of file KoColorSpaceAbstract.h.

                                                                                                                                                 {
        m_alphaMaskApplicator->fillInverseAlphaNormedFloatMaskWithColor(pixels, alpha, brushColor, nPixels);
    }

References KoColorSpaceAbstract< _CSTrait >::m_alphaMaskApplicator.

◆ fromNormalisedChannelsValue()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::fromNormalisedChannelsValue	(	quint8 *	pixel,
		const QVector< float > &	values ) const

inlineoverridevirtual

Write in the pixel the value from the normalized vector.

Implements KoColorSpace.

Definition at line 82 of file KoColorSpaceAbstract.h.

                                                                                                 {
        return _CSTrait::fromNormalisedChannelsValue(pixel, values);
    }

◆ intensity8()

template<class _CSTrait >

quint8 KoColorSpaceAbstract< _CSTrait >::intensity8 ( const quint8 * src ) const

inlineoverridevirtual

Calculate the intensity of the given pixel, scaled down to the range 0-255. XXX: Maybe this should be more flexible

Implements KoColorSpace.

Reimplemented in RgbU8ColorSpace.

Definition at line 150 of file KoColorSpaceAbstract.h.

                                                         {
        QColor c;
        const_cast<KoColorSpaceAbstract<_CSTrait> *>(this)->toQColor(src, &c);
        // Integer version of:
        //      static_cast<quint8>(qRound(c.red() * 0.30 + c.green() * 0.59 + c.blue() * 0.11))
        // The "+ 50" is used for rounding
        return static_cast<quint8>((c.red() * 30 + c.green() * 59 + c.blue() * 11 + 50) / 100);
    }

References KoColorSpace::toQColor().

◆ intensityF()

template<class _CSTrait >

qreal KoColorSpaceAbstract< _CSTrait >::intensityF ( const quint8 * src ) const

inlineoverridevirtual

Calculate the intensity of the given pixel, scaled down to the range 0-1

Implements KoColorSpace.

Reimplemented in RgbU8ColorSpace.

Definition at line 159 of file KoColorSpaceAbstract.h.

                                                        {
        QColor c;
        const_cast<KoColorSpaceAbstract<_CSTrait> *>(this)->toQColor16(src, &c);
        return c.redF() * 0.30 + c.greenF() * 0.59 + c.blueF() * 0.11;
    }

References KoColorSpaceAbstract< _CSTrait >::toQColor16().

◆ multiplyAlpha()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::multiplyAlpha	(	quint8 *	pixels,
		quint8	alpha,
		qint32	nPixels ) const

inlineoverridevirtual

Multiply the alpha channel of the given run of pixels by the given value.

pixels – a pointer to the pixels that will have their alpha set to this value alpha – a downscaled 8-bit value for opacity nPixels – the number of pixels

Implements KoColorSpace.

Definition at line 115 of file KoColorSpaceAbstract.h.

                                                                                     {
        _CSTrait::multiplyAlpha(pixels, alpha, nPixels);
    }

◆ normalisedChannelsValue()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::normalisedChannelsValue	(	const quint8 *	pixel,
		QVector< float > &	channels ) const

inlineoverridevirtual

Return a QVector of floats with channels' values normalized to floating point range 0 to 1.

Implements KoColorSpace.

Definition at line 78 of file KoColorSpaceAbstract.h.

                                                                                               {
        return _CSTrait::normalisedChannelsValue(pixel, channels);
    }

References KoColorSpace::channels.

◆ normalisedChannelValueText()

template<class _CSTrait >

QString KoColorSpaceAbstract< _CSTrait >::normalisedChannelValueText	(	const quint8 *	pixel,
		quint32	channelIndex ) const

inlineoverridevirtual

Return a string with the channel's value with integer channels normalised to the floating point range 0 to 1, if appropriate.

Implements KoColorSpace.

Definition at line 74 of file KoColorSpaceAbstract.h.

                                                                                                 {
        return _CSTrait::normalisedChannelValueText(pixel, channelIndex);
    }

◆ opacityF()

template<class _CSTrait >

qreal KoColorSpaceAbstract< _CSTrait >::opacityF ( const quint8 * U8_pixel ) const

inlineoverridevirtual

Implements KoColorSpace.

Definition at line 99 of file KoColorSpaceAbstract.h.

                                                           {
        return _CSTrait::opacityF(U8_pixel);
    }

◆ opacityU8()

template<class _CSTrait >

quint8 KoColorSpaceAbstract< _CSTrait >::opacityU8 ( const quint8 * pixel ) const

inlineoverridevirtual

Get the alpha value of the given pixel, downscaled to an 8-bit value.

Implements KoColorSpace.

Definition at line 95 of file KoColorSpaceAbstract.h.

                                                             {
        return _CSTrait::opacityU8(U8_pixel);
    }

◆ pixelSize()

template<class _CSTrait >

quint32 KoColorSpaceAbstract< _CSTrait >::pixelSize ( ) const

inlineoverridevirtual

The size in bytes of a single pixel in this color model

Implements KoColorSpace.

Definition at line 66 of file KoColorSpaceAbstract.h.

                                       {
        return _CSTrait::pixelSize;
    }

◆ scaleToU8()

template<class _CSTrait >

quint8 KoColorSpaceAbstract< _CSTrait >::scaleToU8	(	const quint8 *	srcPixel,
		qint32	channelPos ) const

inlineoverridevirtual

Convert the value of the channel at the specified position into an 8-bit value. The position is not the number of bytes, but the position of the channel as defined in the channel info list.

Implements KoColorSpace.

Reimplemented in KoLabColorSpace, LabF32ColorSpace, LabU16ColorSpace, and LabU8ColorSpace.

Definition at line 86 of file KoColorSpaceAbstract.h.

                                                                                  {
        typename _CSTrait::channels_type c = _CSTrait::nativeArray(srcPixel)[channelIndex];
        return KoColorSpaceMaths<typename _CSTrait::channels_type, quint8>::scaleToA(c);
    }

References KoColorSpaceMaths< _T, _Tdst >::scaleToA().

◆ setOpacity() [1/2]

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::setOpacity	(	quint8 *	pixels,
		qreal	alpha,
		qint32	nPixels ) const

inlineoverridevirtual

Implements KoColorSpace.

Definition at line 107 of file KoColorSpaceAbstract.h.

                                                                                 {
        _CSTrait::setOpacity(pixels, alpha, nPixels);
    }

◆ setOpacity() [2/2]

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::setOpacity	(	quint8 *	pixels,
		quint8	alpha,
		qint32	nPixels ) const

inlineoverridevirtual

Set the alpha channel of the given run of pixels to the given value.

pixels – a pointer to the pixels that will have their alpha set to this value alpha – a downscaled 8-bit value for opacity nPixels – the number of pixels

Implements KoColorSpace.

Definition at line 103 of file KoColorSpaceAbstract.h.

                                                                                  {
        _CSTrait::setOpacity(pixels, alpha, nPixels);
    }

◆ singleChannelPixel()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::singleChannelPixel	(	quint8 *	dstPixel,
		const quint8 *	srcPixel,
		quint32	channelIndex ) const

inlineoverridevirtual

Set dstPixel to the pixel containing only the given channel of srcPixel. The remaining channels should be set to whatever makes sense for 'empty' channels of this color space, with the intent being that the pixel should look like it only has the given channel.

Implements KoColorSpace.

Definition at line 91 of file KoColorSpaceAbstract.h.

                                                                                                           {
        _CSTrait::singleChannelPixel(dstPixel, srcPixel, channelIndex);
    }

◆ toQColor16()

template<class _CSTrait >

void KoColorSpaceAbstract< _CSTrait >::toQColor16	(	const quint8 *	src,
		QColor *	c ) const

inlineoverridevirtual

By default this does the same as toQColor

Implements KoColorSpace.

Definition at line 146 of file KoColorSpaceAbstract.h.

                                                                 {
        this->toQColor(src, c);
    }

References KoColorSpace::toQColor().

Member Data Documentation

◆ m_alphaMaskApplicator

template<class _CSTrait >

QScopedPointer<KoAlphaMaskApplicatorBase> KoColorSpaceAbstract< _CSTrait >::m_alphaMaskApplicator

private

Definition at line 218 of file KoColorSpaceAbstract.h.

The documentation for this class was generated from the following file:

libs/pigment/KoColorSpaceAbstract.h

Public Types

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ColorSpaceTraits

Constructor & Destructor Documentation

◆ KoColorSpaceAbstract()

Member Function Documentation

◆ alphaPos()

◆ applyAlphaNormedFloatMask()

◆ applyAlphaU8Mask()

◆ applyInverseAlphaU8Mask()

◆ applyInverseNormedFloatMask()

◆ channelCount()

◆ channelValueText()

◆ colorChannelCount()

◆ convertChannelToVisualRepresentation() [1/2]

◆ convertChannelToVisualRepresentation() [2/2]

◆ copyOpacityU8()

◆ createDarkenAdjustment()

◆ createInvertTransformation()

◆ fillGrayBrushWithColor()

◆ fillInverseAlphaNormedFloatMaskWithColor()

◆ fromNormalisedChannelsValue()

◆ intensity8()

◆ intensityF()

◆ multiplyAlpha()

◆ normalisedChannelsValue()

◆ normalisedChannelValueText()

◆ opacityF()

◆ opacityU8()

◆ pixelSize()

◆ scaleToU8()

◆ setOpacity() [1/2]

◆ setOpacity() [2/2]

◆ singleChannelPixel()

◆ toQColor16()

Member Data Documentation

◆ m_alphaMaskApplicator
