KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor > Class Template Reference

#include <KoCompositeOpGeneric.h>

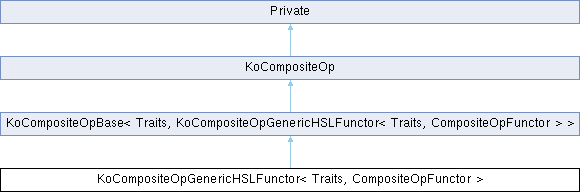

Inheritance diagram for KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >:

Public Member Functions
	KoCompositeOpGenericHSLFunctor (const KoColorSpace *cs, const QString &id, const QString &category)
Public Member Functions inherited from KoCompositeOpBase< Traits, KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor > >
void	composite (const KoCompositeOp::ParameterInfo &params) const override
virtual void	composite (const ParameterInfo &params) const
void	composite (quint8 *dstRowStart, qint32 dstRowStride, const quint8 *srcRowStart, qint32 srcRowStride, const quint8 *maskRowStart, qint32 maskRowStride, qint32 rows, qint32 numColumns, float opacity, const QBitArray &channelFlags=QBitArray()) const
	KoCompositeOpBase (const KoColorSpace *cs, const QString &id, const QString &category)
Public Member Functions inherited from KoCompositeOp
QString	category () const
const KoColorSpace *	colorSpace () const
void	composite (quint8 *dstRowStart, qint32 dstRowStride, const quint8 *srcRowStart, qint32 srcRowStride, const quint8 *maskRowStart, qint32 maskRowStride, qint32 rows, qint32 numColumns, float opacity, const QBitArray &channelFlags=QBitArray()) const
QString	description () const
QString	id () const
	KoCompositeOp (const KoColorSpace *cs, const QString &id, const QString &category=KoCompositeOp::categoryMisc())
virtual	~KoCompositeOp ()
Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Static Public Member Functions
template<bool alphaLocked, bool allChannelFlags>
static channels_type	composeColorChannels (const channels_type *src, channels_type srcAlpha, channels_type *dst, channels_type dstAlpha, channels_type maskAlpha, channels_type opacity, const QBitArray &channelFlags)
Static Public Member Functions inherited from KoCompositeOp
static QString	categoryArithmetic ()
static QString	categoryBinary ()
static QString	categoryDark ()
static QString	categoryHSI ()
static QString	categoryHSL ()
static QString	categoryHSV ()
static QString	categoryHSY ()
static QString	categoryLight ()
static QString	categoryMisc ()
static QString	categoryMix ()
static QString	categoryModulo ()
static QString	categoryNegative ()
static QString	categoryQuadratic ()

Private Types
typedef KoCompositeOpBase< Traits, KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor > >	base_class
typedef Traits::channels_type	channels_type

Static Private Attributes
static const qint32	blue_pos = Traits::blue_pos
static const qint32	green_pos = Traits::green_pos
static const qint32	red_pos = Traits::red_pos

Additional Inherited Members
Public Attributes inherited from KoCompositeOp
QString	category
const KoColorSpace *	colorSpace
QBitArray	defaultChannelFlags
QString	description
QString	id
Public Attributes inherited from Private
KisCanvas2 *	canvas
int	displayedFrame
int	intendedFrame

Detailed Description

template<class Traits, typename CompositeOpFunctor>
class KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >

Generic CompositeOp for nonseparable/HSL channel compositing functions

A template to generate a KoCompositeOp class by just specifying a blending/compositing function. This template works with compositing functions for RGB channels only (the channels can not be processed separately)

Definition at line 201 of file KoCompositeOpGeneric.h.

Member Typedef Documentation

base_class

template<class Traits , typename CompositeOpFunctor >

typedef KoCompositeOpBase< Traits, KoCompositeOpGenericHSLFunctor<Traits,CompositeOpFunctor> > KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::base_class

private

Definition at line 203 of file KoCompositeOpGeneric.h.

channels_type

template<class Traits , typename CompositeOpFunctor >

typedef Traits::channels_type KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::channels_type

private

Definition at line 204 of file KoCompositeOpGeneric.h.

Constructor & Destructor Documentation

KoCompositeOpGenericHSLFunctor()

template<class Traits , typename CompositeOpFunctor >

KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::KoCompositeOpGenericHSLFunctor ( const KoColorSpace * cs, const QString & id, const QString & category )

inline

Definition at line 211 of file KoCompositeOpGeneric.h.

        : base_class(cs, id, category) { }

Member Function Documentation

composeColorChannels()

template<class Traits , typename CompositeOpFunctor >

template<bool alphaLocked, bool allChannelFlags>

static channels_type KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::composeColorChannels ( const channels_type * src, channels_type srcAlpha, channels_type * dst, channels_type dstAlpha, channels_type maskAlpha, channels_type opacity, const QBitArray & channelFlags )

inlinestatic

Definition at line 216 of file KoCompositeOpGeneric.h.

                                                                                                           {
        using namespace Arithmetic;

        srcAlpha = mul(srcAlpha, maskAlpha, opacity);

        if(alphaLocked) {
            if(dstAlpha != zeroValue<channels_type>()) {
                float srcR = scale<float>(CompositeOpFunctor::clampSourceChannelValue(src[red_pos]));
                float srcG = scale<float>(CompositeOpFunctor::clampSourceChannelValue(src[green_pos]));
                float srcB = scale<float>(CompositeOpFunctor::clampSourceChannelValue(src[blue_pos]));

                float dstR = scale<float>(CompositeOpFunctor::clampDestinationChannelValue(dst[red_pos]));
                float dstG = scale<float>(CompositeOpFunctor::clampDestinationChannelValue(dst[green_pos]));
                float dstB = scale<float>(CompositeOpFunctor::clampDestinationChannelValue(dst[blue_pos]));

                CompositeOpFunctor::composeChannels(srcR, srcG, srcB, dstR, dstG, dstB);

                if(allChannelFlags || channelFlags.testBit(red_pos))
                    dst[red_pos] = lerp(dst[red_pos], scale<channels_type>(dstR), srcAlpha);

                if(allChannelFlags || channelFlags.testBit(green_pos))
                    dst[green_pos] = lerp(dst[green_pos], scale<channels_type>(dstG), srcAlpha);

                if(allChannelFlags || channelFlags.testBit(blue_pos))
                    dst[blue_pos] = lerp(dst[blue_pos], scale<channels_type>(dstB), srcAlpha);
            }

            return dstAlpha;
        }
        else {
            channels_type newDstAlpha = unionShapeOpacity(srcAlpha, dstAlpha);

            if(newDstAlpha != zeroValue<channels_type>()) {
                float srcR = scale<float>(CompositeOpFunctor::clampSourceChannelValue(src[red_pos]));
                float srcG = scale<float>(CompositeOpFunctor::clampSourceChannelValue(src[green_pos]));
                float srcB = scale<float>(CompositeOpFunctor::clampSourceChannelValue(src[blue_pos]));

                float dstR = scale<float>(CompositeOpFunctor::clampDestinationChannelValue(dst[red_pos]));
                float dstG = scale<float>(CompositeOpFunctor::clampDestinationChannelValue(dst[green_pos]));
                float dstB = scale<float>(CompositeOpFunctor::clampDestinationChannelValue(dst[blue_pos]));

                CompositeOpFunctor::composeChannels(srcR, srcG, srcB, dstR, dstG, dstB);

                if(allChannelFlags || channelFlags.testBit(red_pos))
                    dst[red_pos] = div(blend(src[red_pos], srcAlpha, dst[red_pos], dstAlpha, scale<channels_type>(dstR)), newDstAlpha);

                if(allChannelFlags || channelFlags.testBit(green_pos))
                    dst[green_pos] = div(blend(src[green_pos], srcAlpha, dst[green_pos], dstAlpha, scale<channels_type>(dstG)), newDstAlpha);

                if(allChannelFlags || channelFlags.testBit(blue_pos))
                    dst[blue_pos] = div(blend(src[blue_pos], srcAlpha, dst[blue_pos], dstAlpha, scale<channels_type>(dstB)), newDstAlpha);
            }

            return newDstAlpha;
        }
    }

References KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::blue_pos, KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::green_pos, lerp(), and KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::red_pos.

Member Data Documentation

blue_pos

template<class Traits , typename CompositeOpFunctor >

const qint32 KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::blue_pos = Traits::blue_pos

staticprivate

Definition at line 208 of file KoCompositeOpGeneric.h.

green_pos

template<class Traits , typename CompositeOpFunctor >

const qint32 KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::green_pos = Traits::green_pos

staticprivate

Definition at line 207 of file KoCompositeOpGeneric.h.

red_pos

template<class Traits , typename CompositeOpFunctor >

const qint32 KoCompositeOpGenericHSLFunctor< Traits, CompositeOpFunctor >::red_pos = Traits::red_pos

staticprivate

Definition at line 206 of file KoCompositeOpGeneric.h.

---

The documentation for this class was generated from the following file:

• libs/pigment/compositeops/KoCompositeOpGeneric.h
