The KisPSDLayerStyle class implements loading, saving and applying the PSD layer effects. More...

#include <kis_psd_layer_style.h>

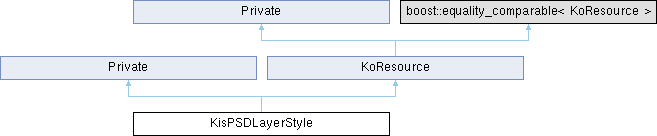

Inheritance diagram for KisPSDLayerStyle:

Public Member Functions
psd_layer_effects_bevel_emboss *	bevelAndEmboss ()

const psd_layer_effects_bevel_emboss *	bevelAndEmboss () const

void	clear ()

void	clearSideLoadedResources () override

KoResourceSP	clone () const override

KisPSDLayerStyleSP	cloneWithResourcesSnapshot (KisResourcesInterfaceSP globalResourcesInterface, KoCanvasResourcesInterfaceSP canvasResourcesInterface) const

psd_layer_effects_color_overlay *	colorOverlay ()

const psd_layer_effects_color_overlay *	colorOverlay () const

psd_layer_effects_context *	context ()

const psd_layer_effects_context *	context () const

psd_layer_effects_drop_shadow *	dropShadow ()

const psd_layer_effects_drop_shadow *	dropShadow () const

psd_layer_effects_gradient_overlay *	gradientOverlay ()

const psd_layer_effects_gradient_overlay *	gradientOverlay () const

bool	hasLocalResourcesSnapshot () const

psd_layer_effects_inner_glow *	innerGlow ()

const psd_layer_effects_inner_glow *	innerGlow () const

psd_layer_effects_inner_shadow *	innerShadow ()

const psd_layer_effects_inner_shadow *	innerShadow () const

bool	isEmpty () const

bool	isEnabled () const

bool	isSerializable () const override

	KisPSDLayerStyle (const KisPSDLayerStyle &rhs)

	KisPSDLayerStyle (const QString &filename="", KisResourcesInterfaceSP resourcesInterface=KisResourcesInterfaceSP())

QList< KoResourceLoadResult >	linkedResources (KisResourcesInterfaceSP globalResourcesInterface) const override

bool	loadFromDevice (QIODevice *dev, KisResourcesInterfaceSP resourcesInterface) override

QString	name () const override

KisPSDLayerStyle	operator= (const KisPSDLayerStyle &rhs)=delete

Private	operator= (const Private &rhs)

psd_layer_effects_outer_glow *	outerGlow ()

const psd_layer_effects_outer_glow *	outerGlow () const

psd_layer_effects_pattern_overlay *	patternOverlay ()

const psd_layer_effects_pattern_overlay *	patternOverlay () const

	Private (const Private &rhs)

	Private (KisResourcesInterfaceSP _resourcesInterface)

QString	psdUuid () const

QList< int >	requiredCanvasResources () const override

KisResourcesInterfaceSP	resourcesInterface () const

QPair< QString, QString >	resourceType () const override

psd_layer_effects_satin *	satin ()

const psd_layer_effects_satin *	satin () const

bool	saveToDevice (QIODevice *dev) const override

void	setEnabled (bool value)

void	setName (const QString &value)

void	setPsdUuid (const QString &value)

void	setResourcesInterface (KisResourcesInterfaceSP resourcesInterface)

void	setUuid (const QUuid &value)

QList< KoResourceLoadResult >	sideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface) const override

psd_layer_effects_stroke *	stroke ()

const psd_layer_effects_stroke *	stroke () const

QUuid	uuid () const

virtual	~KisPSDLayerStyle ()

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Public Member Functions inherited from KoResource
bool	active () const

void	addMetaData (QString key, QVariant value)
	store the given key, value pair in the resource

virtual QString	defaultFileExtension () const

virtual QList< KoResourceLoadResult >	embeddedResources (KisResourcesInterfaceSP globalResourcesInterface) const

QString	filename () const

QImage	image () const

bool	isDirty () const

virtual bool	isEphemeral () const

	KoResource ()

	KoResource (const KoResource &rhs)

	KoResource (const QString &filename)

bool	load (KisResourcesInterfaceSP resourcesInterface)

QString	md5Sum (bool generateIfEmpty=true) const

QMap< QString, QVariant >	metadata () const
	get a map with all the metadata

KoResource &	operator= (const KoResource &rhs)=delete

bool	permanent () const

QList< KoResourceLoadResult >	requiredResources (KisResourcesInterfaceSP globalResourcesInterface) const

int	resourceId () const

bool	save ()

void	setActive (bool active)

void	setDirty (bool value)
	Mark the preset as modified but not saved.

void	setFilename (const QString &filename)

void	setImage (const QImage &image)

void	setMD5Sum (const QString &md5sum)
	Set the md5sum of this resource. It must be in hex-encoded string format.

void	setName (const QString &name)

void	setPermanent (bool permanent)

void	setResourceId (int id)

void	setStorageLocation (const QString &location)

void	setValid (bool valid)

void	setVersion (int version)

KoResourceSignature	signature () const

QString	storageLocation () const

QList< KoResourceLoadResult >	takeSideLoadedResources (KisResourcesInterfaceSP globalResourcesInterface)

virtual QImage	thumbnail () const
	thumbnail the thumbnail image to use in resource selectors

virtual QString	thumbnailPath () const
	thumbnailPath returns the path to a separate thumbnail image, outside the actual resource file itself. If the path is relative, it is supposed start in the same location as the resource itself. If it's absolute, that is, it starts with "/", it is from the root of the storage.

virtual void	updateThumbnail ()
	updateThumbnail updates the thumbnail for this resource. Reimplement if your thumbnail is something else than the image set with setImage.

bool	valid () const

int	version () const
	Get the version of the resource.

virtual	~KoResource ()

Public Attributes
psd_layer_effects_bevel_emboss	bevel_emboss

psd_layer_effects_color_overlay	color_overlay

psd_layer_effects_context	context

psd_layer_effects_drop_shadow	drop_shadow

bool	effectEnabled

psd_layer_effects_gradient_overlay	gradient_overlay

psd_layer_effects_inner_glow	inner_glow

psd_layer_effects_inner_shadow	inner_shadow

QString	name

psd_layer_effects_outer_glow	outer_glow

psd_layer_effects_pattern_overlay	pattern_overlay

KisResourcesInterfaceSP	resourcesInterface

psd_layer_effects_satin	satin

QList< KoEmbeddedResource >	sideLoadedResources

psd_layer_effects_stroke	stroke

QUuid	uuid

quint16	version

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Public Attributes inherited from KoResource
bool	active {true}

QString	filename

QImage	image

QString	md5sum

QMap< QString, QVariant >	metadata

bool	modified {false}

QString	name

bool	permanent {false}

int	resourceId {-1}

QString	storageLocation

bool	valid {false}

int	version {-1}

Private Member Functions
void	setSideLoadedResources (const QList< KoEmbeddedResource > &value)

Private Attributes
Private *const	d

Friends
class	KisAslLayerStyleSerializer

class	KisDlgLayerStyle

Detailed Description

The KisPSDLayerStyle class implements loading, saving and applying the PSD layer effects.

See https://www.tonton-pixel.com/Photoshop%20Additional%20File%20Formats/styles-file-format.html

Definition at line 26 of file kis_psd_layer_style.cpp.

Constructor & Destructor Documentation

◆ KisPSDLayerStyle() [1/2]

KisPSDLayerStyle::KisPSDLayerStyle	(	const QString &	filename = "",
		KisResourcesInterfaceSP	resourcesInterface = KisResourcesInterfaceSP() )

Definition at line 102 of file kis_psd_layer_style.cpp.

    : KoResource(filename)
    , d(new Private(resourcesInterface))
{
    d->name = i18n("Unnamed");
    d->version = 7;
}

References d.

◆ ~KisPSDLayerStyle()

KisPSDLayerStyle::~KisPSDLayerStyle ( )

virtual

Definition at line 110 of file kis_psd_layer_style.cpp.

{
    delete d;
}

References d.

◆ KisPSDLayerStyle() [2/2]

KisPSDLayerStyle::KisPSDLayerStyle ( const KisPSDLayerStyle & rhs )

Definition at line 115 of file kis_psd_layer_style.cpp.

    : KoResource(rhs)
    , d(new Private(*rhs.d))
{
    setValid(valid());
}

References KoResource::setValid(), and KoResource::valid.

Member Function Documentation

◆ bevelAndEmboss() [1/2]

psd_layer_effects_bevel_emboss * KisPSDLayerStyle::bevelAndEmboss ( )

Definition at line 315 of file kis_psd_layer_style.cpp.

{
    return &d->bevel_emboss;
}

References d.

◆ bevelAndEmboss() [2/2]

const psd_layer_effects_bevel_emboss * KisPSDLayerStyle::bevelAndEmboss ( ) const

Definition at line 260 of file kis_psd_layer_style.cpp.

{
    return &d->bevel_emboss;
}

References d.

◆ clear()

void KisPSDLayerStyle::clear ( )

Definition at line 155 of file kis_psd_layer_style.cpp.

{
    *d = Private(d->resourcesInterface);
}

References d.

◆ clearSideLoadedResources()

void KisPSDLayerStyle::clearSideLoadedResources ( )

overridevirtual

Clears memory under side-loaded resources. The method is called by KisResourceLocator after the resources have been fetched and added to the global store.

Reimplemented from KoResource.

Definition at line 415 of file kis_psd_layer_style.cpp.

{
    d->sideLoadedResources.clear();
}

References d.

◆ clone()

KoResourceSP KisPSDLayerStyle::clone ( ) const

overridevirtual

Implements KoResource.

Definition at line 132 of file kis_psd_layer_style.cpp.

{
    return toQShared(new KisPSDLayerStyle(*this)).dynamicCast<KoResource>();
}

References KisPSDLayerStyle(), and toQShared().

◆ cloneWithResourcesSnapshot()

KisPSDLayerStyleSP KisPSDLayerStyle::cloneWithResourcesSnapshot	(	KisResourcesInterfaceSP	globalResourcesInterface,
		KoCanvasResourcesInterfaceSP	canvasResourcesInterface ) const

See also: KisRequiredResourcesOperators::cloneWithResourcesSnapshot

Passing null into cloneWithResourcesSnapshot() means that we expect all the canvas resources to be backed into the style. That is exactly what we expect when loading the styles saved in the layers.

Since we haven't cloned the required resources when putting them into the local storage (which is rather questionable), we need to clone the gradients explicitly before modification.

Definition at line 335 of file kis_psd_layer_style.cpp.

{
    KisPSDLayerStyleSP style = KisRequiredResourcesOperators::cloneWithResourcesSnapshot<KisPSDLayerStyleSP>(this, globalResourcesInterface);

    if (!requiredCanvasResources().isEmpty() && !canvasResourcesInterface) {
        qWarning() << "KisPSDLayerStyle::cloneWithResourcesSnapshot: layer style"
                   << name() << "is expected to have all the canvas resources"
                   << "backed, but still depends on something";
        qWarning() << ppVar(requiredCanvasResources());
    }

    if (canvasResourcesInterface) {

        QSharedPointer<KisLocalStrokeResources> localResourcesSnapshot =
             style->resourcesInterface().dynamicCast<KisLocalStrokeResources>();
        KIS_ASSERT_RECOVER_RETURN_VALUE(localResourcesSnapshot, style);

        auto bakeGradient = [canvasResourcesInterface, localResourcesSnapshot] (KoAbstractGradientSP gradient) {
            if (gradient && !gradient->requiredCanvasResources().isEmpty()) {

                KoAbstractGradientSP clonedGradient =
                    gradient->cloneAndBakeVariableColors(canvasResourcesInterface);

                localResourcesSnapshot->removeResource(gradient);
                localResourcesSnapshot->addResource(clonedGradient);
            }
        };

        if (style->gradientOverlay()->effectEnabled()) {
            bakeGradient(style->gradientOverlay()->gradient(localResourcesSnapshot));
        }

        if (style->innerGlow()->effectEnabled() && style->innerGlow()->fillType() == psd_fill_gradient) {
            bakeGradient(style->innerGlow()->gradient(localResourcesSnapshot));
        }

        if (style->outerGlow()->effectEnabled() && style->outerGlow()->fillType() == psd_fill_gradient) {
            bakeGradient(style->outerGlow()->gradient(localResourcesSnapshot));
        }

        if (style->stroke()->effectEnabled() && style->stroke()->fillType() == psd_fill_gradient) {
            bakeGradient(style->stroke()->gradient(localResourcesSnapshot));
        }
    }

    return style;
}

References isEmpty(), KIS_ASSERT_RECOVER_RETURN_VALUE, name, ppVar, psd_fill_gradient, and requiredCanvasResources().

◆ colorOverlay() [1/2]

psd_layer_effects_color_overlay * KisPSDLayerStyle::colorOverlay ( )

Definition at line 295 of file kis_psd_layer_style.cpp.

{
    return &d->color_overlay;
}

References d.

◆ colorOverlay() [2/2]

const psd_layer_effects_color_overlay * KisPSDLayerStyle::colorOverlay ( ) const

Definition at line 240 of file kis_psd_layer_style.cpp.

{
    return &d->color_overlay;
}

References d.

◆ context() [1/2]

psd_layer_effects_context * KisPSDLayerStyle::context ( )

◆ context() [2/2]

const psd_layer_effects_context * KisPSDLayerStyle::context ( ) const

◆ dropShadow() [1/2]

psd_layer_effects_drop_shadow * KisPSDLayerStyle::dropShadow ( )

Definition at line 270 of file kis_psd_layer_style.cpp.

{
    return &d->drop_shadow;
}

References d.

◆ dropShadow() [2/2]

const psd_layer_effects_drop_shadow * KisPSDLayerStyle::dropShadow ( ) const

Definition at line 215 of file kis_psd_layer_style.cpp.

{
    return &d->drop_shadow;
}

References d.

◆ gradientOverlay() [1/2]

psd_layer_effects_gradient_overlay * KisPSDLayerStyle::gradientOverlay ( )

Definition at line 300 of file kis_psd_layer_style.cpp.

{
    return &d->gradient_overlay;
}

References d.

◆ gradientOverlay() [2/2]

const psd_layer_effects_gradient_overlay * KisPSDLayerStyle::gradientOverlay ( ) const

Definition at line 245 of file kis_psd_layer_style.cpp.

{
    return &d->gradient_overlay;
}

References d.

◆ hasLocalResourcesSnapshot()

bool KisPSDLayerStyle::hasLocalResourcesSnapshot ( ) const

See also: KisRequiredResourcesOperators::hasLocalResourcesSnapshot

Definition at line 330 of file kis_psd_layer_style.cpp.

{
    return KisRequiredResourcesOperators::hasLocalResourcesSnapshot(this);
}

References KisRequiredResourcesOperators::hasLocalResourcesSnapshot().

◆ innerGlow() [1/2]

psd_layer_effects_inner_glow * KisPSDLayerStyle::innerGlow ( )

Definition at line 285 of file kis_psd_layer_style.cpp.

{
    return &d->inner_glow;
}

References d.

◆ innerGlow() [2/2]

const psd_layer_effects_inner_glow * KisPSDLayerStyle::innerGlow ( ) const

Definition at line 230 of file kis_psd_layer_style.cpp.

{
    return &d->inner_glow;
}

References d.

◆ innerShadow() [1/2]

psd_layer_effects_inner_shadow * KisPSDLayerStyle::innerShadow ( )

Definition at line 275 of file kis_psd_layer_style.cpp.

{
    return &d->inner_shadow;
}

References d.

◆ innerShadow() [2/2]

const psd_layer_effects_inner_shadow * KisPSDLayerStyle::innerShadow ( ) const

Definition at line 220 of file kis_psd_layer_style.cpp.

{
    return &d->inner_shadow;
}

References d.

◆ isEmpty()

bool KisPSDLayerStyle::isEmpty ( ) const

Returns: true if all the styles are disabled

Definition at line 160 of file kis_psd_layer_style.cpp.

{
    return !(d->drop_shadow.effectEnabled() ||
             d->inner_shadow.effectEnabled() ||
             d->outer_glow.effectEnabled() ||
             d->inner_glow.effectEnabled() ||
             d->bevel_emboss.effectEnabled() ||
             d->satin.effectEnabled() ||
             d->color_overlay.effectEnabled() ||
             d->gradient_overlay.effectEnabled() ||
             d->pattern_overlay.effectEnabled() ||
             d->stroke.effectEnabled());
}

References d.

◆ isEnabled()

bool KisPSDLayerStyle::isEnabled ( ) const

Definition at line 122 of file kis_psd_layer_style.cpp.

{
    return d->effectEnabled;
}

References d.

◆ isSerializable()

bool KisPSDLayerStyle::isSerializable ( ) const

overridevirtual

Serializable resource is the one which can be saved/loaded into a specific storage via saveToDevice()/loadFromDevice() methods. Some resources, like KisAbrBrush or KisPsdLayerStyle, are stored in specific libraries in "batches". Such resources cannot be saved individually. They are created by the corresponding factories.

In contrast to ephemeral resource, non-serializable resource will always have a correct md5Sum() and may be stored in the resources database.

Reimplemented from KoResource.

Definition at line 137 of file kis_psd_layer_style.cpp.

{
    return false;
}

◆ linkedResources()

QList< KoResourceLoadResult > KisPSDLayerStyle::linkedResources ( KisResourcesInterfaceSP globalResourcesInterface ) const

overridevirtual

Returns: all the resources that are needed but (*this) resource and are not embedded into it. The resources are fetched from globalResourcesInterface. If fetching of some resources is failed, then (*this) resource is invalid.

Reimplemented from KoResource.

Definition at line 425 of file kis_psd_layer_style.cpp.

{
    QList<KoResourceLoadResult> result;
    const auto linkedResourceSignatures = KisAslLayerStyleSerializer::fetchLinkedResourceSignatures(this);

    Q_FOREACH(const KoResourceSignature &sig, linkedResourceSignatures) {
        result << globalResourcesInterface->source(sig.type).bestMatchLoadResult(sig.md5sum, sig.filename, sig.name);
    }

    return result;
}

References KisAslLayerStyleSerializer::fetchLinkedResourceSignatures(), KoResourceSignature::filename, KoResourceSignature::md5sum, KoResourceSignature::name, and KoResourceSignature::type.

◆ loadFromDevice()

bool KisPSDLayerStyle::loadFromDevice	(	QIODevice *	dev,
		KisResourcesInterfaceSP	resourcesInterface )

overridevirtual

Implements KoResource.

Definition at line 142 of file kis_psd_layer_style.cpp.

{
    Q_UNUSED(dev);
    Q_UNUSED(resourcesInterface);
    return false;
}

References resourcesInterface.

◆ name()

QString KisPSDLayerStyle::name ( ) const

overridevirtual

Returns: the user-visible name of the resource

Reimplemented from KoResource.

◆ operator=() [1/2]

KisPSDLayerStyle KisPSDLayerStyle::operator= ( const KisPSDLayerStyle & rhs )

delete

◆ operator=() [2/2]

Private KisPSDLayerStyle::operator= ( const Private & rhs )

inline

Definition at line 57 of file kis_psd_layer_style.cpp.

    {
        if (this != &rhs) {
            name = rhs.name;
            uuid = rhs.uuid;
            version = rhs.version;
            effectEnabled = rhs.effectEnabled;
            context = rhs.context;
            drop_shadow = rhs.drop_shadow;
            inner_shadow = rhs.inner_shadow;
            outer_glow = rhs.outer_glow;
            inner_glow = rhs.inner_glow;
            bevel_emboss = rhs.bevel_emboss;
            satin = rhs.satin;
            color_overlay = rhs.color_overlay;
            gradient_overlay = rhs.gradient_overlay;
            pattern_overlay = rhs.pattern_overlay;
            stroke = rhs.stroke;
            resourcesInterface = rhs.resourcesInterface;
        }

        return *this;
    }

◆ outerGlow() [1/2]

psd_layer_effects_outer_glow * KisPSDLayerStyle::outerGlow ( )

Definition at line 280 of file kis_psd_layer_style.cpp.

{
    return &d->outer_glow;
}

References d.

◆ outerGlow() [2/2]

const psd_layer_effects_outer_glow * KisPSDLayerStyle::outerGlow ( ) const

Definition at line 225 of file kis_psd_layer_style.cpp.

{
    return &d->outer_glow;
}

References d.

◆ patternOverlay() [1/2]

psd_layer_effects_pattern_overlay * KisPSDLayerStyle::patternOverlay ( )

Definition at line 305 of file kis_psd_layer_style.cpp.

{
    return &d->pattern_overlay;
}

References d.

◆ patternOverlay() [2/2]

const psd_layer_effects_pattern_overlay * KisPSDLayerStyle::patternOverlay ( ) const

Definition at line 250 of file kis_psd_layer_style.cpp.

{
    return &d->pattern_overlay;
}

References d.

◆ Private() [1/2]

KisPSDLayerStyle::Private ( const Private & rhs )

inline

Definition at line 38 of file kis_psd_layer_style.cpp.

        : name(rhs.name),
          uuid(rhs.uuid),
          version(rhs.version),
          effectEnabled(rhs.effectEnabled),
          context(rhs.context),
          drop_shadow(rhs.drop_shadow),
          inner_shadow(rhs.inner_shadow),
          outer_glow(rhs.outer_glow),
          inner_glow(rhs.inner_glow),
          bevel_emboss(rhs.bevel_emboss),
          satin(rhs.satin),
          color_overlay(rhs.color_overlay),
          gradient_overlay(rhs.gradient_overlay),
          pattern_overlay(rhs.pattern_overlay),
          stroke(rhs.stroke),
          resourcesInterface(rhs.resourcesInterface)
    {}

◆ Private() [2/2]

KisPSDLayerStyle::Private ( KisResourcesInterfaceSP _resourcesInterface )

inline

Definition at line 28 of file kis_psd_layer_style.cpp.

        : version(-1)
        , effectEnabled(true)
        , resourcesInterface(_resourcesInterface)
    {
        if (!resourcesInterface) {
            resourcesInterface.reset(new KisLocalStrokeResources());
        }
    }

◆ psdUuid()

QString KisPSDLayerStyle::psdUuid ( ) const

Definition at line 200 of file kis_psd_layer_style.cpp.

{
    return uuid().toString().mid(1, 36);
}

References uuid.

◆ requiredCanvasResources()

QList< int > KisPSDLayerStyle::requiredCanvasResources ( ) const

overridevirtual

A list of per-canvas active resources that are needed for this resource to function properly. E.g. some gradients may require Fg/Bg colors and some presets would like to know about the current gradient selection.

Returns: a list of canvas resources needed for the current resource

Reimplemented from KoResource.

Definition at line 437 of file kis_psd_layer_style.cpp.

{
    QList<int> result;

    auto addCanvasResources = [&result] (KoAbstractGradientSP gradient) {
        if (gradient) {
            result << gradient->requiredCanvasResources();
        }
    };

    if (gradientOverlay()->effectEnabled()) {
        addCanvasResources(gradientOverlay()->gradient(resourcesInterface()));
    }

    if (innerGlow()->effectEnabled() && innerGlow()->fillType() == psd_fill_gradient) {
        addCanvasResources(innerGlow()->gradient(resourcesInterface()));
    }

    if (outerGlow()->effectEnabled() && outerGlow()->fillType() == psd_fill_gradient) {
        addCanvasResources(outerGlow()->gradient(resourcesInterface()));
    }

    if (stroke()->effectEnabled() && stroke()->fillType() == psd_fill_gradient) {
        addCanvasResources(stroke()->gradient(resourcesInterface()));
    }

    KritaUtils::makeContainerUnique(result);

    return result;
}

References effectEnabled, psd_layer_effects_shadow_base::effectEnabled(), gradientOverlay(), innerGlow(), KritaUtils::makeContainerUnique(), outerGlow(), psd_fill_gradient, resourcesInterface, and stroke.

◆ resourcesInterface()

KisResourcesInterfaceSP KisPSDLayerStyle::resourcesInterface ( ) const

Returns: resource interface that is used by KisPSDLayerStyle object for loading linked resources

◆ resourceType()

QPair< QString, QString > KisPSDLayerStyle::resourceType ( ) const

inlineoverridevirtual

Returns: the resource type

Implements KoResource.

Definition at line 55 of file kis_psd_layer_style.h.

    {
        return QPair<QString, QString>(ResourceType::LayerStyles, "");
    }

References ResourceType::LayerStyles.

◆ satin() [1/2]

psd_layer_effects_satin * KisPSDLayerStyle::satin ( )

◆ satin() [2/2]

const psd_layer_effects_satin * KisPSDLayerStyle::satin ( ) const

◆ saveToDevice()

bool KisPSDLayerStyle::saveToDevice ( QIODevice * dev ) const

overridevirtual

Reimplemented from KoResource.

Definition at line 149 of file kis_psd_layer_style.cpp.

{
    KIS_SAFE_ASSERT_RECOVER_NOOP(false && "KisPSDLayerStyle is not meant to be serializable!");
    return false;
}

References KIS_SAFE_ASSERT_RECOVER_NOOP.

◆ setEnabled()

void KisPSDLayerStyle::setEnabled ( bool value )

Definition at line 127 of file kis_psd_layer_style.cpp.

{
    d->effectEnabled = value;
}

References d, and value().

◆ setName()

void KisPSDLayerStyle::setName ( const QString & value )

Definition at line 179 of file kis_psd_layer_style.cpp.

{
    d->name = value;
    dynamic_cast<KoResource*>(this)->setName(value);
}

References d, setName(), and value().

◆ setPsdUuid()

void KisPSDLayerStyle::setPsdUuid ( const QString & value )

Definition at line 205 of file kis_psd_layer_style.cpp.

{
    setUuid(QUuid(QString("{%1}").arg(value)));
}

References setUuid(), and value().

◆ setResourcesInterface()

void KisPSDLayerStyle::setResourcesInterface ( KisResourcesInterfaceSP resourcesInterface )

Set resource interface that will be used by KisPSDLayerStyle object for loading linked resources

Definition at line 325 of file kis_psd_layer_style.cpp.

{
    d->resourcesInterface = resourcesInterface;
}

References d, and resourcesInterface.

◆ setSideLoadedResources()

void KisPSDLayerStyle::setSideLoadedResources ( const QList< KoEmbeddedResource > & value )

private

Definition at line 420 of file kis_psd_layer_style.cpp.

{
    d->sideLoadedResources = value;
}

References d, and value().

◆ setUuid()

void KisPSDLayerStyle::setUuid ( const QUuid & value )

Definition at line 194 of file kis_psd_layer_style.cpp.

{
    d->uuid = value;
    this->setMD5Sum(KoMD5Generator::generateHash(value.toByteArray()));
}

References d, KoMD5Generator::generateHash(), KoResource::setMD5Sum(), and value().

◆ sideLoadedResources()

QList< KoResourceLoadResult > KisPSDLayerStyle::sideLoadedResources ( KisResourcesInterfaceSP globalResourcesInterface ) const

overridevirtual

Side-loaded resources are the resources embedded into the file format and loaded alongside the main resource. After being loaded in loadFromDevice() they are stored separately and may be fetched by the resource locator.

After the locator has loaded them into the global storage, it can free the memory by calling clearSideLoadedResources().

Reimplemented from KoResource.

◆ stroke() [1/2]

psd_layer_effects_stroke * KisPSDLayerStyle::stroke ( )

◆ stroke() [2/2]

const psd_layer_effects_stroke * KisPSDLayerStyle::stroke ( ) const

◆ uuid()

QUuid KisPSDLayerStyle::uuid ( ) const

Friends And Related Symbol Documentation

◆ KisAslLayerStyleSerializer

friend class KisAslLayerStyleSerializer

friend

Definition at line 126 of file kis_psd_layer_style.h.

◆ KisDlgLayerStyle

friend class KisDlgLayerStyle

friend

Definition at line 125 of file kis_psd_layer_style.h.

Member Data Documentation

◆ bevel_emboss

psd_layer_effects_bevel_emboss KisPSDLayerStyle::bevel_emboss

Definition at line 90 of file kis_psd_layer_style.cpp.

◆ color_overlay

psd_layer_effects_color_overlay KisPSDLayerStyle::color_overlay

Definition at line 92 of file kis_psd_layer_style.cpp.

◆ context

psd_layer_effects_context * KisPSDLayerStyle::context

Definition at line 85 of file kis_psd_layer_style.cpp.

◆ d

Private* const KisPSDLayerStyle::d

private

Definition at line 131 of file kis_psd_layer_style.h.

◆ drop_shadow

psd_layer_effects_drop_shadow KisPSDLayerStyle::drop_shadow

Definition at line 86 of file kis_psd_layer_style.cpp.

◆ effectEnabled

bool KisPSDLayerStyle::effectEnabled

Definition at line 84 of file kis_psd_layer_style.cpp.

◆ gradient_overlay

psd_layer_effects_gradient_overlay KisPSDLayerStyle::gradient_overlay

Definition at line 93 of file kis_psd_layer_style.cpp.

◆ inner_glow

psd_layer_effects_inner_glow KisPSDLayerStyle::inner_glow

Definition at line 89 of file kis_psd_layer_style.cpp.

◆ inner_shadow

psd_layer_effects_inner_shadow KisPSDLayerStyle::inner_shadow

Definition at line 87 of file kis_psd_layer_style.cpp.

◆ name

QString KisPSDLayerStyle::name

Definition at line 81 of file kis_psd_layer_style.cpp.

◆ outer_glow

psd_layer_effects_outer_glow KisPSDLayerStyle::outer_glow

Definition at line 88 of file kis_psd_layer_style.cpp.

◆ pattern_overlay

psd_layer_effects_pattern_overlay KisPSDLayerStyle::pattern_overlay

Definition at line 94 of file kis_psd_layer_style.cpp.

◆ resourcesInterface

KisResourcesInterfaceSP KisPSDLayerStyle::resourcesInterface

Definition at line 97 of file kis_psd_layer_style.cpp.

◆ satin

psd_layer_effects_satin * KisPSDLayerStyle::satin

Definition at line 91 of file kis_psd_layer_style.cpp.

◆ sideLoadedResources

QList< KoResourceLoadResult > KisPSDLayerStyle::sideLoadedResources

Do not load the existing resources. There is no use for it.

Definition at line 99 of file kis_psd_layer_style.cpp.

◆ stroke

psd_layer_effects_stroke * KisPSDLayerStyle::stroke

Definition at line 95 of file kis_psd_layer_style.cpp.

◆ uuid

QUuid KisPSDLayerStyle::uuid

Definition at line 82 of file kis_psd_layer_style.cpp.

◆ version

quint16 KisPSDLayerStyle::version

Definition at line 83 of file kis_psd_layer_style.cpp.

The documentation for this class was generated from the following files:

libs/image/kis_psd_layer_style.cpp
libs/image/kis_psd_layer_style.h

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ KisPSDLayerStyle() [1/2]

◆ ~KisPSDLayerStyle()

◆ KisPSDLayerStyle() [2/2]

Member Function Documentation

◆ bevelAndEmboss() [1/2]

◆ bevelAndEmboss() [2/2]

◆ clear()

◆ clearSideLoadedResources()

◆ clone()

◆ cloneWithResourcesSnapshot()

◆ colorOverlay() [1/2]

◆ colorOverlay() [2/2]

◆ context() [1/2]

◆ context() [2/2]

◆ dropShadow() [1/2]

◆ dropShadow() [2/2]

◆ gradientOverlay() [1/2]

◆ gradientOverlay() [2/2]

◆ hasLocalResourcesSnapshot()

◆ innerGlow() [1/2]

◆ innerGlow() [2/2]

◆ innerShadow() [1/2]

◆ innerShadow() [2/2]

◆ isEmpty()

◆ isEnabled()

◆ isSerializable()

◆ linkedResources()

◆ loadFromDevice()

◆ name()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ outerGlow() [1/2]

◆ outerGlow() [2/2]

◆ patternOverlay() [1/2]

◆ patternOverlay() [2/2]

◆ Private() [1/2]

◆ Private() [2/2]

◆ psdUuid()

◆ requiredCanvasResources()

◆ resourcesInterface()

◆ resourceType()

◆ satin() [1/2]

◆ satin() [2/2]

◆ saveToDevice()

◆ setEnabled()

◆ setName()

◆ setPsdUuid()

◆ setResourcesInterface()

◆ setSideLoadedResources()

◆ setUuid()

◆ sideLoadedResources()

◆ stroke() [1/2]

◆ stroke() [2/2]

◆ uuid()

Friends And Related Symbol Documentation

◆ KisAslLayerStyleSerializer

◆ KisDlgLayerStyle

Member Data Documentation

◆ bevel_emboss

◆ color_overlay

◆ context

◆ d

◆ drop_shadow

◆ effectEnabled

◆ gradient_overlay

◆ inner_glow

◆ inner_shadow

◆ name

◆ outer_glow

◆ pattern_overlay

◆ resourcesInterface

◆ satin

◆ sideLoadedResources
