#include <KoAlphaColorSpace.h>

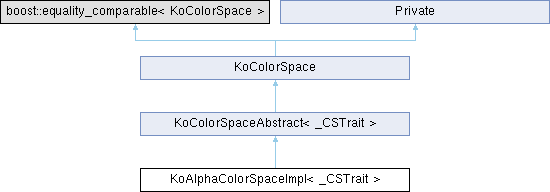

Inheritance diagram for KoAlphaColorSpaceImpl< _CSTrait >:

Public Member Functions
QString	channelValueText (const quint8 *pixel, quint32 channelIndex) const override

virtual KoColorSpace *	clone () const

quint32	colorChannelCount () const override

KoID	colorDepthId () const override

void	colorFromXML (quint8 *, const QDomElement &) const override

KoID	colorModelId () const override

virtual quint32	colorSpaceType () const

void	colorToXML (const quint8 *, QDomDocument &, QDomElement &) const override

QImage	convertToQImage (const quint8 data, qint32 width, qint32 height, const KoColorProfile dstProfile, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::ConversionFlags conversionFlags) const override

virtual void	convolveColors (quint8 *colors, qreal kernelValues, quint8 *dst, qreal factor, qreal offset, qint32 nColors, const QBitArray &channelFlags) const

KoColorTransformation *	createBrightnessContrastAdjustment (const quint16 *transferValues) const override

KoColorTransformation *	createDarkenAdjustment (qint32, bool, qreal) const override

KoColorTransformation *	createPerChannelAdjustment (const quint16 const ) const override

quint8	difference (const quint8 src1, const quint8 src2) const override

quint8	differenceA (const quint8 src1, const quint8 src2) const override

QVector< double >	fromHSY (qreal , qreal , qreal *) const override

void	fromLabA16 (const quint8 src, quint8 dst, quint32 nPixels) const override

void	fromQColor (const QColor &color, quint8 *dst) const override

void	fromRgbA16 (const quint8 src, quint8 dst, quint32 nPixels) const override

QVector< double >	fromYUV (qreal , qreal , qreal *) const override

bool	hasHighDynamicRange () const override

virtual void	invertColor (quint8 *, qint32) const

	KoAlphaColorSpaceImpl ()

QString	normalisedChannelValueText (const quint8 *pixel, quint32 channelIndex) const override

const KoColorProfile *	profile () const override

bool	profileIsCompatible (const KoColorProfile *) const override

void	toHSY (const QVector< double > &, qreal , qreal , qreal *) const override

void	toLabA16 (const quint8 src, quint8 dst, quint32 nPixels) const override

void	toQColor (const quint8 src, QColor c) const override

void	toRgbA16 (const quint8 src, quint8 dst, quint32 nPixels) const override

void	toYUV (const QVector< double > &, qreal , qreal , qreal *) const override

bool	willDegrade (ColorSpaceIndependence independence) const override

	~KoAlphaColorSpaceImpl () override

Public Member Functions inherited from KoColorSpaceAbstract< _CSTrait >
quint32	alphaPos () const override

void	applyAlphaNormedFloatMask (quint8 pixels, const float alpha, qint32 nPixels) const override

void	applyAlphaU8Mask (quint8 pixels, const quint8 alpha, qint32 nPixels) const override

void	applyInverseAlphaU8Mask (quint8 pixels, const quint8 alpha, qint32 nPixels) const override

void	applyInverseNormedFloatMask (quint8 pixels, const float alpha, qint32 nPixels) const override

quint32	channelCount () const override

QString	channelValueText (const quint8 *pixel, quint32 channelIndex) const override

quint32	colorChannelCount () const override

void	convertChannelToVisualRepresentation (const quint8 src, quint8 dst, quint32 nPixels, const QBitArray selectedChannels) const override

void	convertChannelToVisualRepresentation (const quint8 src, quint8 dst, quint32 nPixels, const qint32 selectedChannelIndex) const override

void	copyOpacityU8 (quint8 src, quint8 dst, qint32 nPixels) const override

KoColorTransformation *	createDarkenAdjustment (qint32 shade, bool compensate, qreal compensation) const override

KoColorTransformation *	createInvertTransformation () const override

void	fillGrayBrushWithColor (quint8 dst, const QRgb brush, quint8 *brushColor, qint32 nPixels) const override

void	fillInverseAlphaNormedFloatMaskWithColor (quint8 pixels, const float alpha, const quint8 *brushColor, qint32 nPixels) const override

void	fromNormalisedChannelsValue (quint8 *pixel, const QVector< float > &values) const override

quint8	intensity8 (const quint8 *src) const override

qreal	intensityF (const quint8 *src) const override

	KoColorSpaceAbstract (const QString &id, const QString &name)

void	multiplyAlpha (quint8 *pixels, quint8 alpha, qint32 nPixels) const override

void	normalisedChannelsValue (const quint8 *pixel, QVector< float > &channels) const override

QString	normalisedChannelValueText (const quint8 *pixel, quint32 channelIndex) const override

qreal	opacityF (const quint8 *U8_pixel) const override

quint8	opacityU8 (const quint8 *U8_pixel) const override

quint32	pixelSize () const override

quint8	scaleToU8 (const quint8 *srcPixel, qint32 channelIndex) const override

void	setOpacity (quint8 *pixels, qreal alpha, qint32 nPixels) const override

void	setOpacity (quint8 *pixels, quint8 alpha, qint32 nPixels) const override

void	singleChannelPixel (quint8 dstPixel, const quint8 srcPixel, quint32 channelIndex) const override

void	toQColor16 (const quint8 src, QColor c) const override

Public Member Functions inherited from KoColorSpace
virtual void	addCompositeOp (const KoCompositeOp *op)

virtual void	addDitherOp (KisDitherOp *op)

virtual void	bitBlt (const KoColorSpace srcSpace, const KoCompositeOp::ParameterInfo &params, const KoCompositeOp op, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::ConversionFlags conversionFlags) const

QBitArray	channelFlags (bool color=true, bool alpha=false) const

QList< KoChannelInfo * >	channels () const

const KoCompositeOp *	compositeOp (const QString &id, const KoColorSpace *srcSpace=nullptr) const

virtual QList< KoCompositeOp * >	compositeOps () const

virtual bool	convertPixelsTo (const quint8 src, quint8 dst, const KoColorSpace *dstColorSpace, quint32 numPixels, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::ConversionFlags conversionFlags) const

virtual KoConvolutionOp *	convolutionOp () const

virtual KoColorConversionTransformation *	createColorConverter (const KoColorSpace *dstColorSpace, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::ConversionFlags conversionFlags) const

KoColorTransformation *	createColorTransformation (const QString &id, const QHash< QString, QVariant > &parameters) const

virtual KoColorConversionTransformation *	createProofingTransform (const KoColorSpace dstColorSpace, const KoColorSpace proofingSpace, KoColorConversionTransformation::Intent renderingIntent, KoColorConversionTransformation::Intent proofingIntent, bool bpcFirstTransform, quint8 *gamutWarning, KoColorConversionTransformation::ConversionFlags displayConversionFlags) const
	createProofingTransform Create a proofing transform. This is a two part transform that can also do gamut checks. The first transform is from source -> proofing space. Here the gamut checks are performed. The second is the proofing to destination space.

virtual void	decreaseHue (quint8 *pixel, qreal step) const

virtual void	decreaseLuminosity (quint8 *pixel, qreal step) const

virtual void	decreaseSaturation (quint8 *pixel, qreal step) const

virtual const KisDitherOp *	ditherOp (const QString &depth, DitherType type) const

QPolygonF	estimatedTRCXYY () const

virtual void	fillGrayBrushWithColorAndLightnessOverlay (quint8 dst, const QRgb brush, quint8 *brushColor, qint32 nPixels) const

virtual void	fillGrayBrushWithColorAndLightnessWithStrength (quint8 dst, const QRgb brush, quint8 *brushColor, qreal strength, qint32 nPixels) const

QPolygonF	gamutXYY () const

virtual bool	hasCompositeOp (const QString &id, const KoColorSpace *srcSpace=nullptr) const

QString	id () const

virtual void	increaseBlue (quint8 *pixel, qreal step) const

virtual void	increaseGreen (quint8 *pixel, qreal step) const

virtual void	increaseHue (quint8 *pixel, qreal step) const

virtual void	increaseLuminosity (quint8 *pixel, qreal step) const

virtual void	increaseRed (quint8 *pixel, qreal step) const

virtual void	increaseSaturation (quint8 *pixel, qreal step) const

virtual void	increaseYellow (quint8 *pixel, qreal step) const

	KoColorSpace (const QString &id, const QString &name, KoMixColorsOp mixColorsOp, KoConvolutionOp convolutionOp)
	Should be called by real color spaces.

QVector< qreal >	lumaCoefficients () const

virtual KoMixColorsOp *	mixColorsOp () const

virtual void	modulateLightnessByGrayBrush (quint8 dst, const QRgb brush, qreal strength, qint32 nPixels) const

QString	name () const

virtual bool	operator== (const KoColorSpace &rhs) const

virtual bool	proofPixelsTo (const quint8 src, quint8 dst, quint32 numPixels, KoColorConversionTransformation *proofingTransform) const
	proofPixelsTo

virtual void	transparentColor (quint8 *dst, quint32 nPixels) const

Public Member Functions inherited from Private
	Private (KisCanvas2 *c)

Static Public Member Functions
static QString	colorSpaceId ()

Protected Member Functions
bool	preferCompositionInSourceColorSpace () const override

Protected Member Functions inherited from KoColorSpace
virtual void	addChannel (KoChannelInfo *ci)

const KoColorConversionTransformation *	fromLabA16Converter () const

const KoColorConversionTransformation *	fromRgbA16Converter () const

	KoColorSpace ()
	Only for use by classes that serve as baseclass for real color spaces.

const KoColorConversionTransformation *	toLabA16Converter () const

const KoColorConversionTransformation *	toRgbA16Converter () const

virtual	~KoColorSpace ()

Private Types
typedef KoColorSpaceMaths< channels_type >	_Maths

typedef KoColorSpaceMaths< quint8, channels_type >	_MathsFromU8

typedef KoColorSpaceMaths< channels_type, quint8 >	_MathsToU8

typedef _CSTrait::channels_type	channels_type

Private Attributes
KoColorProfile *	m_profile

Additional Inherited Members
Public Types inherited from KoColorSpaceAbstract< _CSTrait >
typedef _CSTrait	ColorSpaceTraits

Public Attributes inherited from KoColorSpace
ThreadLocalCache	channelFlagsApplicationCache

QList< KoChannelInfo * >	channels

QVector< qreal >	colorants

QHash< QString, KoCompositeOp * >	compositeOps

ThreadLocalCache	conversionCache

KoConvolutionOp *	convolutionOp

Deletability	deletability

QHash< QString, QMap< DitherType, KisDitherOp * > >	ditherOps

QPolygonF	gamutXYY

KoColorSpaceEngine *	iccEngine

QString	id

quint32	idNumber

QVector< qreal >	lumaCoefficients

KoMixColorsOp *	mixColorsOp

QString	name

KoColorConversionTransformation *	transfoFromLABA16

KoColorConversionTransformation *	transfoFromRGBA16

KoColorConversionTransformation *	transfoToLABA16

KoColorConversionTransformation *	transfoToRGBA16

QPolygonF	TRCXYY

Public Attributes inherited from Private
KisCanvas2 *	canvas

int	displayedFrame

int	intendedFrame

Protected Attributes inherited from KoColorSpace
Private *const	d

Detailed Description

template<class _CSTrait>
class KoAlphaColorSpaceImpl< _CSTrait >

The alpha mask is a special color strategy that treats all pixels as alpha value with a color common to the mask. The default color is white.

Definition at line 51 of file KoAlphaColorSpace.h.

Member Typedef Documentation

◆ _Maths

template<class _CSTrait >

typedef KoColorSpaceMaths<channels_type> KoAlphaColorSpaceImpl< _CSTrait >::_Maths

private

Definition at line 54 of file KoAlphaColorSpace.h.

◆ _MathsFromU8

template<class _CSTrait >

typedef KoColorSpaceMaths<quint8, channels_type> KoAlphaColorSpaceImpl< _CSTrait >::_MathsFromU8

private

Definition at line 56 of file KoAlphaColorSpace.h.

◆ _MathsToU8

template<class _CSTrait >

typedef KoColorSpaceMaths<channels_type, quint8> KoAlphaColorSpaceImpl< _CSTrait >::_MathsToU8

private

Definition at line 55 of file KoAlphaColorSpace.h.

◆ channels_type

template<class _CSTrait >

typedef _CSTrait::channels_type KoAlphaColorSpaceImpl< _CSTrait >::channels_type

private

Definition at line 53 of file KoAlphaColorSpace.h.

Constructor & Destructor Documentation

◆ KoAlphaColorSpaceImpl()

template<class _CSTrait >

KoAlphaColorSpaceImpl< _CSTrait >::KoAlphaColorSpaceImpl ( )

Definition at line 74 of file KoAlphaColorSpace.cpp.

    : KoColorSpaceAbstract<_CSTrait>(alphaIdFromChannelType<channels_type>().id(),
                                     alphaIdFromChannelType<channels_type>().name())
    , m_profile(new KoDummyColorProfile)
{
    this->addChannel(new KoChannelInfo(i18n("Alpha"), 0, 0, KoChannelInfo::ALPHA, channelInfoIdFromChannelType<channels_type>()));

    this->addCompositeOp(new KoCompositeOpOver<_CSTrait>(this));
    this->addCompositeOp(new KoCompositeOpErase<_CSTrait>(this));
    this->addCompositeOp(new KoCompositeOpCopy2<_CSTrait>(this));
    this->addCompositeOp(createAlphaDarkenCompositeOp<_CSTrait>(this));
    this->addCompositeOp(new AlphaColorSpaceMultiplyOp<_CSTrait>(this));
}

References KoColorSpace::addChannel(), KoColorSpace::addCompositeOp(), and KoChannelInfo::ALPHA.

◆ ~KoAlphaColorSpaceImpl()

template<class _CSTrait >

KoAlphaColorSpaceImpl< _CSTrait >::~KoAlphaColorSpaceImpl ( )

override

Definition at line 89 of file KoAlphaColorSpace.cpp.

{
    delete m_profile;
    m_profile = 0;
}

Member Function Documentation

◆ channelValueText()

template<class _CSTrait >

QString KoAlphaColorSpaceImpl< _CSTrait >::channelValueText	(	const quint8 *	pixel,
		quint32	channelIndex ) const

overridevirtual

Return a string with the channel's value suitable for display in the gui.

Implements KoColorSpace.

Definition at line 120 of file KoAlphaColorSpace.cpp.

{
    Q_ASSERT(channelIndex < this->channelCount());
    const quint32 channelPosition = this->channels()[channelIndex]->pos();
    return QString().setNum(_CSTrait::nativeArray(pixel)[channelPosition]);
}

◆ clone()

template<class _CSTrait >

KoColorSpace * KoAlphaColorSpaceImpl< _CSTrait >::clone ( ) const

virtual

Definition at line 242 of file KoAlphaColorSpace.cpp.

{
    return new KoAlphaColorSpaceImpl<_CSTrait>();
}

◆ colorChannelCount()

template<class _CSTrait >

quint32 KoAlphaColorSpaceImpl< _CSTrait >::colorChannelCount ( ) const

inlineoverridevirtual

The total number of color channels (excludes alpha) for a single pixel in this color model.

Implements KoColorSpace.

Definition at line 95 of file KoAlphaColorSpace.h.

                                               {
        return 0;
    }

◆ colorDepthId()

template<class _CSTrait >

KoID KoAlphaColorSpaceImpl< _CSTrait >::colorDepthId ( ) const

inlineoverridevirtual

Returns: a string that identify the bit depth (for instance "U8" or "F16" ...)

See also: KoColorModelStandardIds.h

Implements KoColorSpace.

Definition at line 73 of file KoAlphaColorSpace.h.

                                       {
        return colorDepthIdForChannelType<channels_type>();
    }

◆ colorFromXML()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::colorFromXML	(	quint8 *	pixel,
		const QDomElement &	elt ) const

inlineoverridevirtual

Unserialize a color following Create's swatch color specification available at https://web.archive.org/web/20110826002520/http://create.freedesktop.org/wiki/Swatches_-_color_file_format/Draft

Parameters

pixel	buffer where the color will be unserialized
elt	the element to unserialize (<CMYK />, <sRGB />, <RGB />)

Returns: the unserialize color, or an empty color object if the function failed to unserialize the color

Implements KoColorSpace.

Definition at line 152 of file KoAlphaColorSpace.h.

                                                                   {
        warnPigment << i18n("Undefined operation in the alpha color space");
    }

References warnPigment.

◆ colorModelId()

template<class _CSTrait >

KoID KoAlphaColorSpaceImpl< _CSTrait >::colorModelId ( ) const

inlineoverridevirtual

Returns: a string that identify the color model (for instance "RGB" or "CMYK" ...)

See also: KoColorModelStandardIds.h

Implements KoColorSpace.

Definition at line 69 of file KoAlphaColorSpace.h.

                                       {
        return AlphaColorModelID;
    }

References AlphaColorModelID.

◆ colorSpaceId()

template<class _CSTrait >

static QString KoAlphaColorSpaceImpl< _CSTrait >::colorSpaceId ( )

inlinestatic

Definition at line 65 of file KoAlphaColorSpace.h.

                                  {
        return alphaIdFromChannelType<channels_type>().id();
    }

◆ colorSpaceType()

template<class _CSTrait >

virtual quint32 KoAlphaColorSpaceImpl< _CSTrait >::colorSpaceType ( ) const

inlinevirtual

Definition at line 105 of file KoAlphaColorSpace.h.

                                           {
        return 0;
    }

◆ colorToXML()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::colorToXML	(	const quint8 *	pixel,
		QDomDocument &	doc,
		QDomElement &	colorElt ) const

inlineoverridevirtual

Serialize this color following Create's swatch color specification available at https://web.archive.org/web/20110826002520/http://create.freedesktop.org/wiki/Swatches_-_color_file_format/Draft

This function doesn't create the <color /> element but rather the <CMYK />, <sRGB />, <RGB /> ... elements. It is assumed that colorElt is the <color /> element.

Parameters

pixel	buffer to serialized
colorElt	root element for the serialization, it is assumed that this element is <color />
doc	is the document containing colorElt

Implements KoColorSpace.

Definition at line 148 of file KoAlphaColorSpace.h.

                                                                                 {
        warnPigment << i18n("Undefined operation in the alpha color space");
    }

References warnPigment.

◆ convertToQImage()

template<class _CSTrait >

QImage KoAlphaColorSpaceImpl< _CSTrait >::convertToQImage	(	const quint8 *	data,
		qint32	width,
		qint32	height,
		const KoColorProfile *	dstProfile,
		KoColorConversionTransformation::Intent	renderingIntent,
		KoColorConversionTransformation::ConversionFlags	conversionFlags ) const

overridevirtual

Convert the pixels in data to (8-bit BGRA) QImage using the specified profiles.

Parameters

data	A pointer to a contiguous memory region containing width * height pixels
width	in pixels
height	in pixels
dstProfile	destination profile
renderingIntent	the rendering intent
conversionFlags	conversion flags

Reimplemented from KoColorSpace.

Definition at line 156 of file KoAlphaColorSpace.cpp.

{
    const channels_type *srcPtr = _CSTrait::nativeArray(data);

    QImage img(width, height, QImage::Format_Indexed8);
    QVector<QRgb> table;
    for (int i = 0; i < 256; ++i) table.append(qRgb(i, i, i));
    img.setColorTable(table);

    quint8* data_img;
    for (int i = 0; i < height; ++i) {
        data_img = img.scanLine(i);

        for (int j = 0; j < width; ++j) {
            data_img[j] = _MathsToU8::scaleToA(*(srcPtr++));
        }
    }

    return img;
}

◆ convolveColors()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::convolveColors	(	quint8 **	colors,
		qreal *	kernelValues,
		quint8 *	dst,
		qreal	factor,
		qreal	offset,
		qint32	nColors,
		const QBitArray &	channelFlags ) const

virtual

Definition at line 136 of file KoAlphaColorSpace.cpp.

{
    qreal totalAlpha = 0;

    while (nColors--) {
        qreal weight = *kernelValues;

        if (weight != 0) {
            totalAlpha += _CSTrait::nativeArray(*colors)[0] * weight;
        }
        ++colors;
        ++kernelValues;
    }

    if (channelFlags.isEmpty() || channelFlags.testBit(0)) {
        _CSTrait::nativeArray(dst)[0] = _Maths::clamp((totalAlpha / factor) + offset);
    }
}

◆ createBrightnessContrastAdjustment()

template<class _CSTrait >

KoColorTransformation * KoAlphaColorSpaceImpl< _CSTrait >::createBrightnessContrastAdjustment ( const quint16 * transferValues ) const

inlineoverridevirtual

Create an adjustment object for adjusting the brightness and contrast transferValues is a 256 bins array with values from 0 to 0xFFFF This function is thread-safe, but you need to create one KoColorTransformation per thread.

Implements KoColorSpace.

Definition at line 128 of file KoAlphaColorSpace.h.

                                                                                                            {
        Q_UNUSED(transferValues);
        warnPigment << i18n("Undefined operation in the alpha color space");
        return 0;
    }

References warnPigment.

◆ createDarkenAdjustment()

template<class _CSTrait >

KoColorTransformation * KoAlphaColorSpaceImpl< _CSTrait >::createDarkenAdjustment	(	qint32	shade,
		bool	compensate,
		qreal	compensation ) const

inlineoverridevirtual

Darken all color channels with the given amount. If compensate is true, the compensation factor will be used to limit the darkening.

Implements KoColorSpace.

Definition at line 139 of file KoAlphaColorSpace.h.

                                                                                        {
        warnPigment << i18n("Undefined operation in the alpha color space");
        return 0;
    }

References warnPigment.

◆ createPerChannelAdjustment()

template<class _CSTrait >

KoColorTransformation * KoAlphaColorSpaceImpl< _CSTrait >::createPerChannelAdjustment ( const quint16 *const * transferValues ) const

inlineoverridevirtual

Create an adjustment object for adjusting individual channels transferValues is an array of colorChannelCount number of 256 bins array with values from 0 to 0xFFFF This function is thread-safe, but you need to create one KoColorTransformation per thread.

The layout of the channels must be the following:

0..N-2 - color channels of the pixel; N-1 - alpha channel of the pixel (if exists)

Implements KoColorSpace.

Definition at line 134 of file KoAlphaColorSpace.h.

                                                                                            {
        warnPigment << i18n("Undefined operation in the alpha color space");
        return 0;
    }

References warnPigment.

◆ difference()

template<class _CSTrait >

quint8 KoAlphaColorSpaceImpl< _CSTrait >::difference	(	const quint8 *	src1,
		const quint8 *	src2 ) const

overridevirtual

Get the difference between 2 colors, normalized in the range (0,255). Only completely opaque and completely transparent are taken into account when computing the difference; other transparency levels are not regarded when finding the difference.

Completely transparent pixels are treated as if they are completely different from any non-transparent pixels.

Implements KoColorSpace.

Definition at line 108 of file KoAlphaColorSpace.cpp.

{
    return qAbs(_MathsToU8::scaleToA(_CSTrait::nativeArray(src2)[0] - _CSTrait::nativeArray(src1)[0]));
}

◆ differenceA()

template<class _CSTrait >

quint8 KoAlphaColorSpaceImpl< _CSTrait >::differenceA	(	const quint8 *	src1,
		const quint8 *	src2 ) const

overridevirtual

Get the difference between 2 colors, normalized in the range (0,255). This function takes the Alpha channel of the pixel into account. Alpha channel has the same weight as Lightness channel.

Completely transparent pixels are treated as if their color channels are the same as ones of the other pixel. In other words, only alpha channel difference is compared.

Implements KoColorSpace.

Definition at line 114 of file KoAlphaColorSpace.cpp.

{
    return difference(src1, src2);
}

◆ fromHSY()

template<class _CSTrait >

QVector< double > KoAlphaColorSpaceImpl< _CSTrait >::fromHSY	(	qreal *	,
		qreal *	,
		qreal *	) const

inlineoverridevirtual

Implements KoColorSpace.

Definition at line 160 of file KoAlphaColorSpace.h.

                                                                       {
        warnPigment << i18n("Undefined operation in the alpha color space");
        QVector <double> channelValues (1);
        channelValues.fill(0.0);
        return channelValues;
    }

References warnPigment.

◆ fromLabA16()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::fromLabA16	(	const quint8 *	src,
		quint8 *	dst,
		quint32	nPixels ) const

overridevirtual

Convert the specified data from Lab (D50). to this colorspace. All colorspaces are guaranteed to support this.

Parameters

src	the pixels in 16 bit lab format
dst	the destination data
nPixels	the number of pixels in the array

Reimplemented from KoColorSpace.

Definition at line 197 of file KoAlphaColorSpace.cpp.

                                                                                                      {
    const quint16* srcPtr = reinterpret_cast<const quint16*>(src);
    channels_type* dstPtr = _CSTrait::nativeArray(dst);

    while (nPixels--) {
        dstPtr[0] = KoColorSpaceMaths<quint16, channels_type>::scaleToA(UINT16_MULT(srcPtr[0], srcPtr[3]));

        dstPtr++;
        srcPtr += 4;
    }
}

References KoColorSpaceMaths< _T, _Tdst >::scaleToA(), and UINT16_MULT().

◆ fromQColor()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::fromQColor	(	const QColor &	color,
		quint8 *	dst ) const

overridevirtual

The fromQColor methods take a given color defined as an RGB QColor and fills a byte array with the corresponding color in the the colorspace managed by this strategy.

Parameters

color	the QColor that will be used to fill dst
dst	a pointer to a pixel

Implements KoColorSpace.

Definition at line 96 of file KoAlphaColorSpace.cpp.

{
    _CSTrait::nativeArray(dst)[0] = _MathsFromU8::scaleToA(c.alpha());
}

◆ fromRgbA16()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::fromRgbA16	(	const quint8 *	src,
		quint8 *	dst,
		quint32	nPixels ) const

overridevirtual

Convert the specified data from sRGB 16 bits. to this colorspace. All colorspaces are guaranteed to support this.

Parameters

src	the pixels in 16 bit rgb format
dst	the destination data
nPixels	the number of pixels in the array

Reimplemented from KoColorSpace.

Definition at line 228 of file KoAlphaColorSpace.cpp.

                                                                                                      {
    const quint16* srcPtr = reinterpret_cast<const quint16*>(src);
    channels_type* dstPtr = _CSTrait::nativeArray(dst);

    while (nPixels--) {
        // WARNING: we consider red channel only!
        dstPtr[0] = KoColorSpaceMaths<quint16, channels_type>::scaleToA(UINT16_MULT(srcPtr[0], srcPtr[3]));

        dstPtr++;
        srcPtr += 4;
    }
}

References KoColorSpaceMaths< _T, _Tdst >::scaleToA(), and UINT16_MULT().

◆ fromYUV()

template<class _CSTrait >

QVector< double > KoAlphaColorSpaceImpl< _CSTrait >::fromYUV	(	qreal *	,
		qreal *	,
		qreal *	) const

inlineoverridevirtual

Implements KoColorSpace.

Definition at line 171 of file KoAlphaColorSpace.h.

                                                                       {
        warnPigment << i18n("Undefined operation in the alpha color space");
        QVector <double> channelValues (1);
        channelValues.fill(0.0);
        return channelValues;
    }

References warnPigment.

◆ hasHighDynamicRange()

template<class _CSTrait >

bool KoAlphaColorSpaceImpl< _CSTrait >::hasHighDynamicRange ( ) const

inlineoverridevirtual

Returns true if the colorspace supports channel values outside the (normalised) range 0 to 1.

Implements KoColorSpace.

Definition at line 109 of file KoAlphaColorSpace.h.

                                              {
        return false;
    }

◆ invertColor()

template<class _CSTrait >

virtual void KoAlphaColorSpaceImpl< _CSTrait >::invertColor	(	quint8 *	,
		qint32	) const

inlinevirtual

Definition at line 144 of file KoAlphaColorSpace.h.

                                                    {
        warnPigment << i18n("Undefined operation in the alpha color space");
    }

References warnPigment.

◆ normalisedChannelValueText()

template<class _CSTrait >

QString KoAlphaColorSpaceImpl< _CSTrait >::normalisedChannelValueText	(	const quint8 *	pixel,
		quint32	channelIndex ) const

overridevirtual

Return a string with the channel's value with integer channels normalised to the floating point range 0 to 1, if appropriate.

Implements KoColorSpace.

Definition at line 128 of file KoAlphaColorSpace.cpp.

{
    Q_ASSERT(channelIndex < this->channelCount());
    const quint32 channelPosition = this->channels()[channelIndex]->pos();
    return QString().setNum(KoColorSpaceMaths<channels_type, float>::scaleToA(_CSTrait::nativeArray(pixel)[channelPosition]));
}

◆ preferCompositionInSourceColorSpace()

template<class _CSTrait >

bool KoAlphaColorSpaceImpl< _CSTrait >::preferCompositionInSourceColorSpace ( ) const

overrideprotectedvirtual

This function defines the behavior of the bitBlt function when the composition of pixels in different colorspaces is requested, that is in case:

srcCS == any dstCS == this

1) preferCompositionInSourceColorSpace() == false,

the source pixels are first converted to *this color space and then composition is performed.

2) preferCompositionInSourceColorSpace() == true,

the destination pixels are first converted into *srcCS color space, then the composition is done, and the result is finally converted into *this colorspace.

This is used by alpha8() color space mostly, because it has weaker representation of the color, so the composition should be done in CS with richer functionality.

Reimplemented from KoColorSpace.

Definition at line 248 of file KoAlphaColorSpace.cpp.

{
    return true;
}

◆ profile()

template<class _CSTrait >

const KoColorProfile * KoAlphaColorSpaceImpl< _CSTrait >::profile ( ) const

inlineoverridevirtual

Return the profile of this color space.

Implements KoColorSpace.

Definition at line 113 of file KoAlphaColorSpace.h.

                                                   {
        return m_profile;
    }

◆ profileIsCompatible()

template<class _CSTrait >

bool KoAlphaColorSpaceImpl< _CSTrait >::profileIsCompatible ( const KoColorProfile * profile ) const

inlineoverridevirtual

Returns: true if the profile given in argument can be used by this color space

Implements KoColorSpace.

Definition at line 84 of file KoAlphaColorSpace.h.

                                                                     {
        return false;
    }

◆ toHSY()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::toHSY	(	const QVector< double > &	,
		qreal *	,
		qreal *	,
		qreal *	) const

inlineoverridevirtual

Implements KoColorSpace.

Definition at line 156 of file KoAlphaColorSpace.h.

                                                                                  {
        warnPigment << i18n("Undefined operation in the alpha color space");
    }

References warnPigment.

◆ toLabA16()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::toLabA16	(	const quint8 *	src,
		quint8 *	dst,
		quint32	nPixels ) const

overridevirtual

Convert the specified data to Lab (D50). All colorspaces are guaranteed to support this

Parameters

src	the source data
dst	the destination data
nPixels	the number of source pixels

Reimplemented from KoColorSpace.

Definition at line 181 of file KoAlphaColorSpace.cpp.

                                                                                                    {
    const channels_type* srcPtr = _CSTrait::nativeArray(src);
    quint16* dstPtr = reinterpret_cast<quint16*>(dst);

    while (nPixels--) {
        dstPtr[0] = KoColorSpaceMaths<channels_type, quint16>::scaleToA(srcPtr[0]);
        dstPtr[1] = UINT16_MAX / 2;
        dstPtr[2] = UINT16_MAX / 2;
        dstPtr[3] = UINT16_MAX;

        srcPtr++;
        dstPtr += 4;
    }
}

References KoColorSpaceMaths< _T, _Tdst >::scaleToA(), and UINT16_MAX.

◆ toQColor()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::toQColor	(	const quint8 *	src,
		QColor *	c ) const

overridevirtual

The toQColor methods take a byte array that is at least pixelSize() long and converts the contents to a QColor, using the given profile as a source profile and the optional profile as a destination profile.

Parameters

src	a pointer to the source pixel
c	the QColor that will be filled with the color at src

Implements KoColorSpace.

Definition at line 102 of file KoAlphaColorSpace.cpp.

{
    c->setRgba(qRgba(255, 255, 255, _MathsToU8::scaleToA(_CSTrait::nativeArray(src)[0])));
}

◆ toRgbA16()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::toRgbA16	(	const quint8 *	src,
		quint8 *	dst,
		quint32	nPixels ) const

overridevirtual

Convert the specified data to sRGB 16 bits. All colorspaces are guaranteed to support this

Parameters

src	the source data
dst	the destination data
nPixels	the number of source pixels

Reimplemented from KoColorSpace.

Definition at line 210 of file KoAlphaColorSpace.cpp.

                                                                                                    {
    const channels_type* srcPtr = _CSTrait::nativeArray(src);
    quint16* dstPtr = reinterpret_cast<quint16*>(dst);

    while (nPixels--) {
        const quint16 gray = KoColorSpaceMaths<channels_type, quint16>::scaleToA(srcPtr[0]);

        dstPtr[0] = gray;
        dstPtr[1] = gray;
        dstPtr[2] = gray;
        dstPtr[3] = UINT16_MAX;

        srcPtr++;
        dstPtr += 4;
    }
}

References KoColorSpaceMaths< _T, _Tdst >::scaleToA(), and UINT16_MAX.

◆ toYUV()

template<class _CSTrait >

void KoAlphaColorSpaceImpl< _CSTrait >::toYUV	(	const QVector< double > &	,
		qreal *	,
		qreal *	,
		qreal *	) const

inlineoverridevirtual

Implements KoColorSpace.

Definition at line 167 of file KoAlphaColorSpace.h.

                                                                                  {
        warnPigment << i18n("Undefined operation in the alpha color space");
    }

References warnPigment.

◆ willDegrade()

template<class _CSTrait >

bool KoAlphaColorSpaceImpl< _CSTrait >::willDegrade ( ColorSpaceIndependence independence ) const

inlineoverridevirtual

If false, images in this colorspace will degrade considerably by functions, tools and filters that have the given measure of colorspace independence.

Parameters

independence the measure to which this colorspace will suffer from the manipulations of the tool or filter asking

Returns: false if no degradation will take place, true if degradation will take place

Implements KoColorSpace.

Definition at line 79 of file KoAlphaColorSpace.h.

                                                                         {
        Q_UNUSED(independence);
        return false;
    }

Member Data Documentation

◆ m_profile

template<class _CSTrait >

KoColorProfile* KoAlphaColorSpaceImpl< _CSTrait >::m_profile

private

Definition at line 182 of file KoAlphaColorSpace.h.

The documentation for this class was generated from the following files:

libs/pigment/colorspaces/KoAlphaColorSpace.h
libs/pigment/colorspaces/KoAlphaColorSpace.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ _Maths

◆ _MathsFromU8

◆ _MathsToU8

◆ channels_type

Constructor & Destructor Documentation

◆ KoAlphaColorSpaceImpl()

◆ ~KoAlphaColorSpaceImpl()

Member Function Documentation

◆ channelValueText()

◆ clone()

◆ colorChannelCount()

◆ colorDepthId()

◆ colorFromXML()

◆ colorModelId()

◆ colorSpaceId()

◆ colorSpaceType()

◆ colorToXML()

◆ convertToQImage()

◆ convolveColors()

◆ createBrightnessContrastAdjustment()

◆ createDarkenAdjustment()

◆ createPerChannelAdjustment()

◆ difference()

◆ differenceA()

◆ fromHSY()

◆ fromLabA16()

◆ fromQColor()

◆ fromRgbA16()

◆ fromYUV()

◆ hasHighDynamicRange()

◆ invertColor()

◆ normalisedChannelValueText()

◆ preferCompositionInSourceColorSpace()

◆ profile()

◆ profileIsCompatible()

◆ toHSY()

◆ toLabA16()

◆ toQColor()

◆ toRgbA16()

◆ toYUV()

◆ willDegrade()

Member Data Documentation

◆ m_profile
